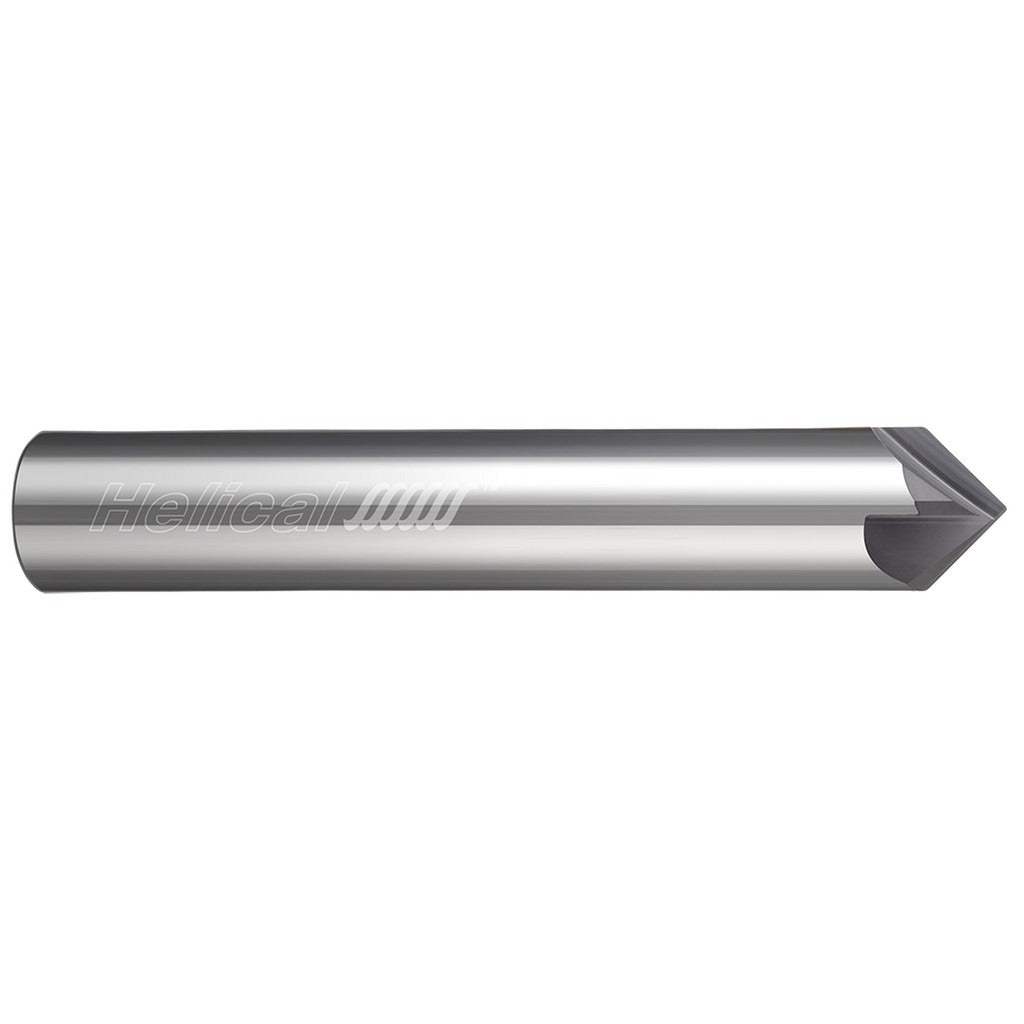

Helical Solutions 06150 Chamfer Mill 3/8in 4 Flute Carbide

Product Description

The HELICAL SOLUTIONS 06150 is a solid carbide chamfer mill designed for single-end chamfering operations on a wide range of workpiece materials. Built with four flutes and a 90-degree included angle, it produces clean, consistent chamfers and deburring passes in one cut. The cutter head diameter is 0.375 inches, matching the 0.375-inch shank diameter for straightforward toolholder setup. With an overall length of 2.5 inches and a length of cut measuring 0.187 inches, this tool is sized for close-tolerance work in both manual and CNC milling applications. The bright, uncoated finish makes it suitable for a broad range of materials without the thermal considerations associated with coated tools.

This chamfer mill is used in machine shops, production floors, and maintenance environments where precise edge preparation is required. It handles chamfering, deburring, and countersinking tasks on ferrous and non-ferrous metals, plastics, and composites. The right-hand cutting direction suits standard spindle configurations. Machinists and CNC operators working with vertical or horizontal milling machines will find this tool fits directly into common collet and end mill holders designed for 3/8-inch shanks.

Key Features

• Solid carbide construction for rigidity and wear resistance across a wide material range
• 4-flute geometry for smooth cutting action and improved surface finish on chamfered edges
• 90-degree included angle for standard chamfering and deburring applications
• Right-hand cutting direction compatible with conventional milling machine spindles
• Bright, uncoated finish allows use across diverse workpiece materials without coating compatibility concerns
• Matched cutter and shank diameter at 0.375 inches simplifies toolholder selection

Compatibility

Designed as an OEM-style solid carbide chamfer mill for use in standard 3/8-inch collet chucks, end mill holders, and milling machine spindles configured for right-hand cutting tools.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Secure the shank fully into the collet or toolholder to the manufacturer-recommended gauge depth before tightening. Ensure the spindle is fully stopped and the machine is powered down before inserting or removing the tool. Verify runout with a dial indicator before commencing production cuts to protect both the tool and the workpiece.
