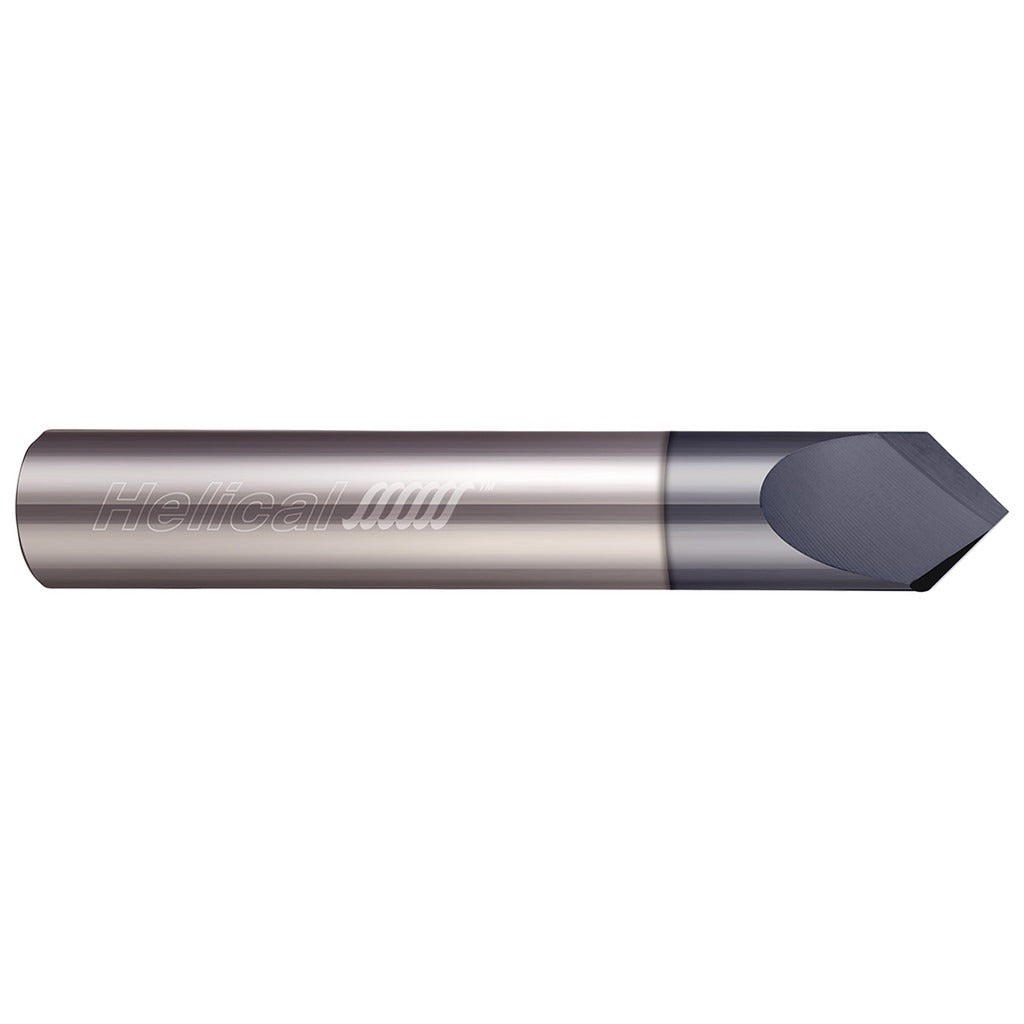

Helical Solutions 06063 Chamfer Mill 0.375 in 2 Flute Solid Carbide

Product Description

The HELICAL SOLUTIONS 06063 is a single-end chamfer mill designed for deburring, chamfering, and edge-breaking operations on metal workpieces. Built from solid carbide, this 2-flute tool features a 90-degree included angle and an APLUS coating that improves lubricity and wear resistance during cutting. The 0.375-inch cutter head diameter matches the 0.375-inch shank diameter, allowing straightforward clamping in standard collet or end mill holders. With an overall length of 2.5 inches and a length of cut of 0.187 inches, it is suited for CNC machining centers and manual mills where controlled chamfer geometry is required. Machinists and toolroom professionals specify this tool for production and prototype work alike.

This chamfer mill is used in general metalworking applications including ferrous and non-ferrous machining where consistent edge preparation is critical. The right-hand cutting direction makes it compatible with conventional CNC and manual spindle setups without spindle direction changes. It is commonly installed in machining centers, knee mills, and tool-and-die operations where a reliable, repeatable chamfer is needed on drilled holes, slots, or part edges prior to assembly or inspection.

Key Features

• Solid carbide construction for rigidity and extended tool life in metal cutting
• APLUS coating reduces friction and improves heat resistance during high-speed operation
• 90-degree included angle (45-degree side angle) for standard chamfer geometry
• 2-flute, single-end design provides efficient chip evacuation in typical chamfering passes
• Matched shank and cutter diameter of 0.375 inches simplifies toolholder selection
• Right-hand cutting direction compatible with standard CNC and manual mill spindles

Compatibility

Designed as an OEM-style solid carbide chamfer mill for use in standard 0.375-inch collet chucks and end mill holders on CNC machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Secure the shank fully within the collet or end mill holder to the recommended engagement depth before tightening. Verify spindle direction is set to right-hand rotation before engaging the cut. Inspect the cutting edges for chips or coating damage before each use, as carbide tooling is brittle and should not be dropped or impacted.
