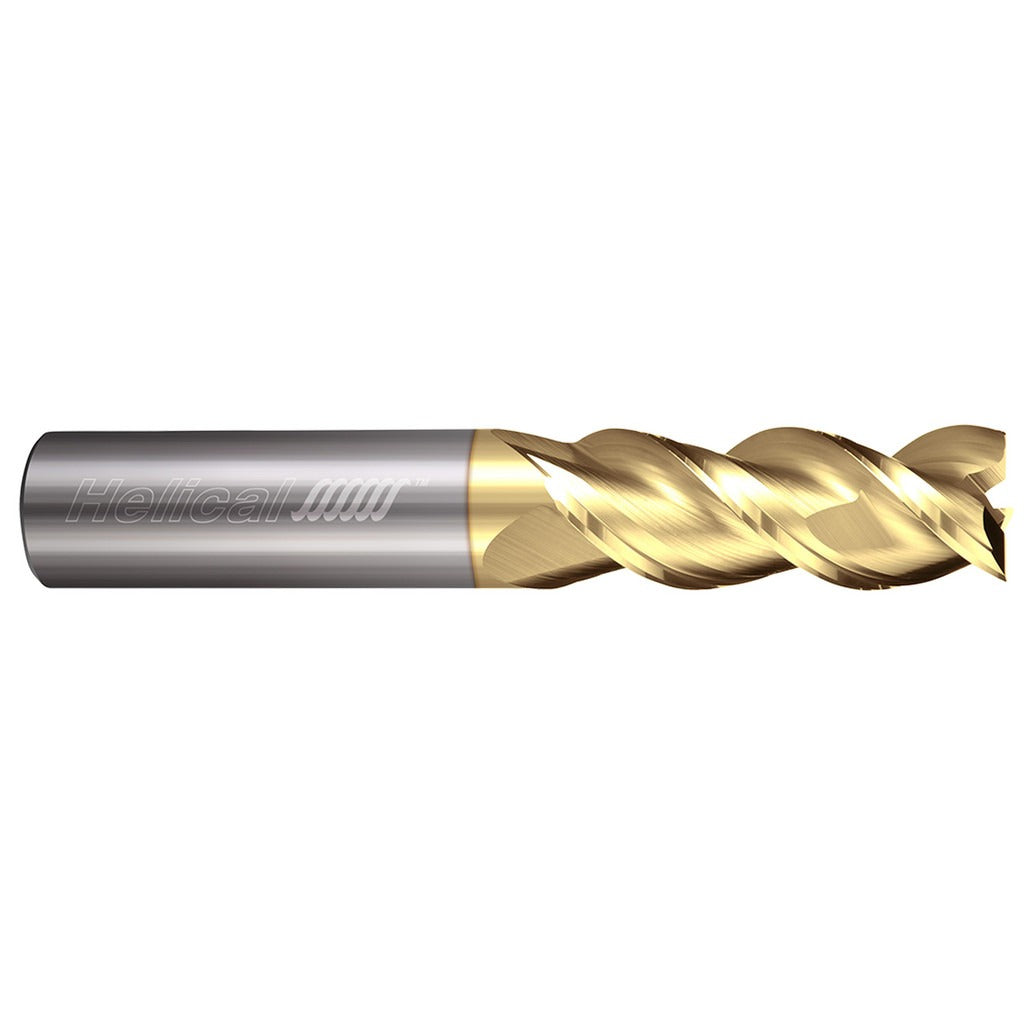

Helical Solutions 03032 Square End Mill 1/8 in 3 Flute Carbide

Product Description

The HELICAL SOLUTIONS 03032 is a 3-flute solid carbide square end mill engineered for aluminum milling applications. Built with a 45-degree helix angle and Zplus coating, it is designed to evacuate chips efficiently and reduce built-up edge when cutting aluminum alloys. The mill measures 0.125 inches in diameter with a 0.375-inch length of cut and a 2-inch overall length. The straight cylindrical shank is 0.125 inches in diameter. Centercutting geometry allows plunge entry, and the right-hand cutting and flute direction suits standard CNC and manual milling setups. Machinists and toolroom operators select this end mill for precision slotting, profiling, and pocketing in aluminum.

This end mill is intended for use in aluminum milling operations in job shop, production, and maintenance machining environments. The 45-degree helix promotes smooth shearing action and reduces chatter on thin-walled aluminum features. It is a single-end tool from the HELICAL SOLUTIONS End Mills for Aluminum 3 Flute Square 45 Degree Helix series, suited for CNC machining centers, CNC routers, and manual knee mills where small-diameter precision work is required.

Key Features

• Solid carbide construction provides rigidity and wear resistance at small diameters
• Zplus coating reduces friction and inhibits aluminum adhesion to the cutting edge
• 45-degree helix angle promotes efficient chip evacuation in aluminum
• 3-flute geometry balances material removal rate with chip clearance
• Centercutting design allows direct plunge entry without pre-drilling
• Right-hand cut and right-hand flute direction for standard spindle rotation

Compatibility

Designed as an OEM-series replacement and standard tooling selection within the HELICAL SOLUTIONS End Mills for Aluminum 3 Flute Square 45 Degree Helix series, suited for 1/8 inch collets or end mill holders on CNC machining centers and manual mills.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the machine spindle fully stopped and locked out. Secure the straight cylindrical shank in a properly sized collet or end mill holder torqued to the machine manufacturer specification. Inspect the cutting edges and coating for chips or damage before each use. Follow machine tool manufacturer guidelines and applicable shop safety procedures when programming feeds, speeds, and depths of cut for carbide tooling in aluminum.
