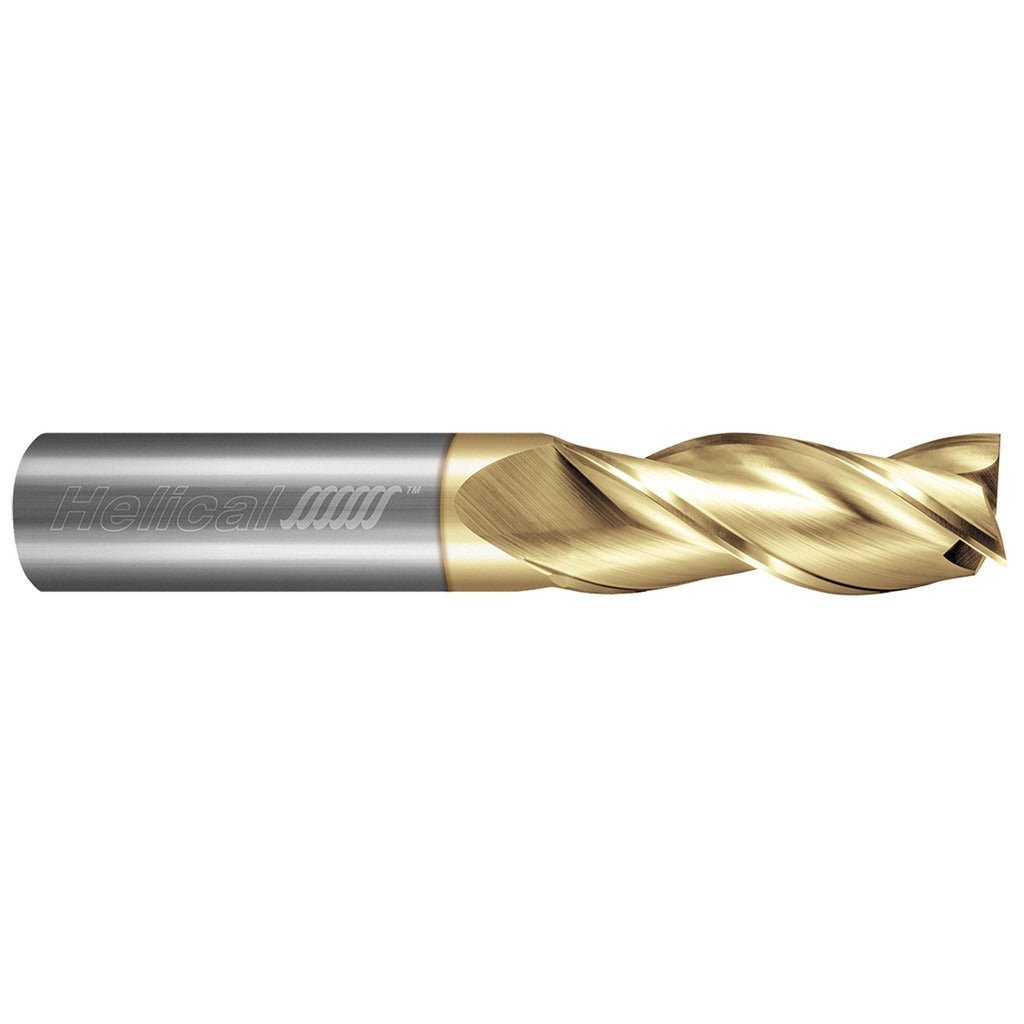

Helical Solutions 01092 Square End Mill 3/16 in Solid Carbide

Product Description

The HELICAL SOLUTIONS 01092 is a single-end, three-flute square end mill designed for high-performance milling in aluminum and non-ferrous materials. Manufactured from solid carbide and finished with a ZrN (Zplus) coating, it provides the hardness and lubricity needed to maintain sharp cutting edges in gummy, soft-metal applications. The 3/16-inch cutting diameter pairs with a 5/16-inch length of cut and a 35-degree right-hand helical flute geometry that promotes chip evacuation and reduces built-up edge. Overall length is 2 inches. Licensed HVAC techs, plumbers, and machinists in production or toolroom environments reach for this size for slot milling, profiling, and finish passes on aluminum components.

This end mill is suited to CNC machining centers, manual knee mills, and high-speed spindle setups targeting aluminum alloys, brass, copper, and other non-ferrous materials. The straight shank measures 3/16 inch in diameter, matching the cutter diameter for direct collet or end mill holder installation. The center-cutting geometry allows plunge entry, giving machinists flexibility in toolpath strategy. It is sold as a single unit and is intended for production shops, tool-and-die operations, and job shops that require a reliable fractional-inch carbide end mill in a common non-ferrous-optimized series.

Key Features

• Solid carbide construction provides rigidity and wear resistance in non-ferrous cuts
• ZrN (Zplus) coating reduces friction and prevents aluminum adhesion to the cutting edge
• Three-flute, 35-degree right-hand helix geometry optimized for aluminum and non-ferrous materials
• Center-cutting design allows direct plunge entry without a pre-drilled pilot hole
• Single-end, straight shank at 3/16 inch diameter fits standard collets and end mill holders
• Right-hand cutting direction compatible with standard CNC and manual mill spindle rotation

Compatibility

Designed as an OEM-style fractional inch end mill for use in any CNC machining center or manual mill with a collet or end mill holder sized for a 3/16-inch straight shank, targeting aluminum and non-ferrous workpiece materials.

Installation Notes

Installation and tool changes should be performed with the machine spindle fully stopped and the control in a safe, locked-out state per applicable shop safety procedures. Seat the straight shank fully in the collet or holder before torquing to the manufacturer specification for that holder system. Inspect the cutting edges for chips or coating damage before each use, as carbide tools are brittle and should not be forced into interrupted cuts beyond their rated parameters. Consult speeds and feeds data for the specific aluminum alloy being machined to avoid work hardening or tool breakage.
