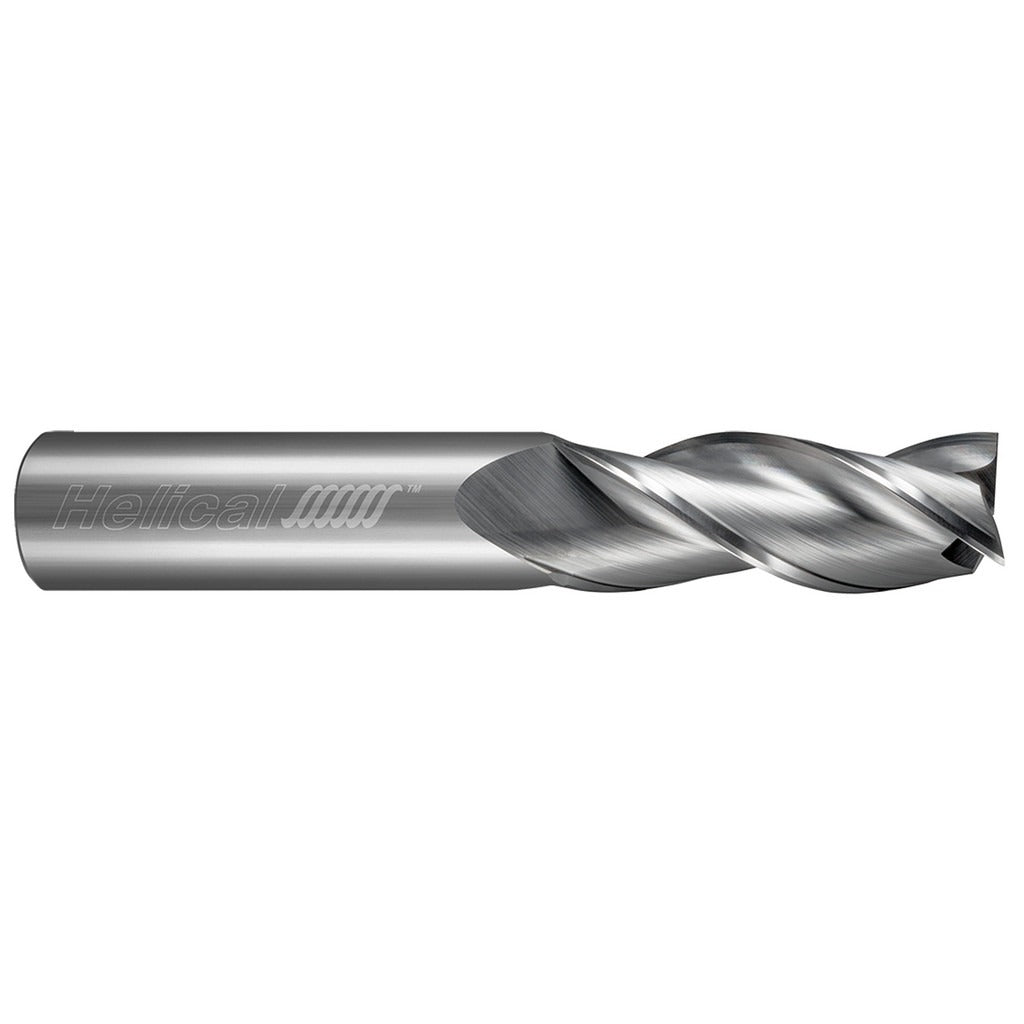

Helical Solutions 01030 Square End Mill 1/8 in 3 Flute Carbide

Product Description

The HELICAL SOLUTIONS 01030 is a 3-flute solid carbide square end mill designed for aluminum milling applications. Built with a 35-degree right-hand helical flute geometry, this end mill delivers efficient chip evacuation and smooth cutting action in non-ferrous materials. The bright uncoated finish keeps the tool surface slick for aluminum, reducing built-up edge. With a 1/8 inch cutting diameter and a 3/8 inch length of cut, it is well suited for light finishing passes, slot milling, and profiling in precision machining environments. Machinists and CNC operators in job shops and production facilities are the primary users of this tool.

This end mill is intended for aluminum and other non-ferrous materials where a 3-flute geometry provides a balance between chip clearance and surface finish. The 1/8 inch straight cylindrical shank fits standard collet chucks and end mill holders. Its 2-inch overall length makes it appropriate for CNC machining centers and manual mills where short-reach rigidity is preferred. It is centercutting, allowing plunge entry directly into the workpiece without a pre-drilled pilot hole.

Key Features

• 3-flute design optimized for aluminum and non-ferrous milling
• 35-degree right-hand helical flute for aggressive chip evacuation
• Solid carbide construction for rigidity and wear resistance
• Bright uncoated finish reduces material adhesion on aluminum
• Centercutting capability allows direct plunge cuts
• Straight cylindrical shank fits standard collet and end mill holders

Compatibility

Designed as an OEM-style replacement or direct substitute for 1/8 inch 3-flute square carbide end mills used in CNC machining centers and manual mills with standard 1/8 inch collet or end mill holder systems.

Installation Notes

Installation should be performed by a qualified machinist following standard toolroom safety procedures. Ensure the spindle is fully stopped and de-energized before changing tooling. Seat the shank fully into the collet or holder to the recommended engagement depth and torque the retention nut according to the machine or toolholder manufacturer specifications. Verify runout with a dial indicator before beginning a cut to protect both the tool and the workpiece.
