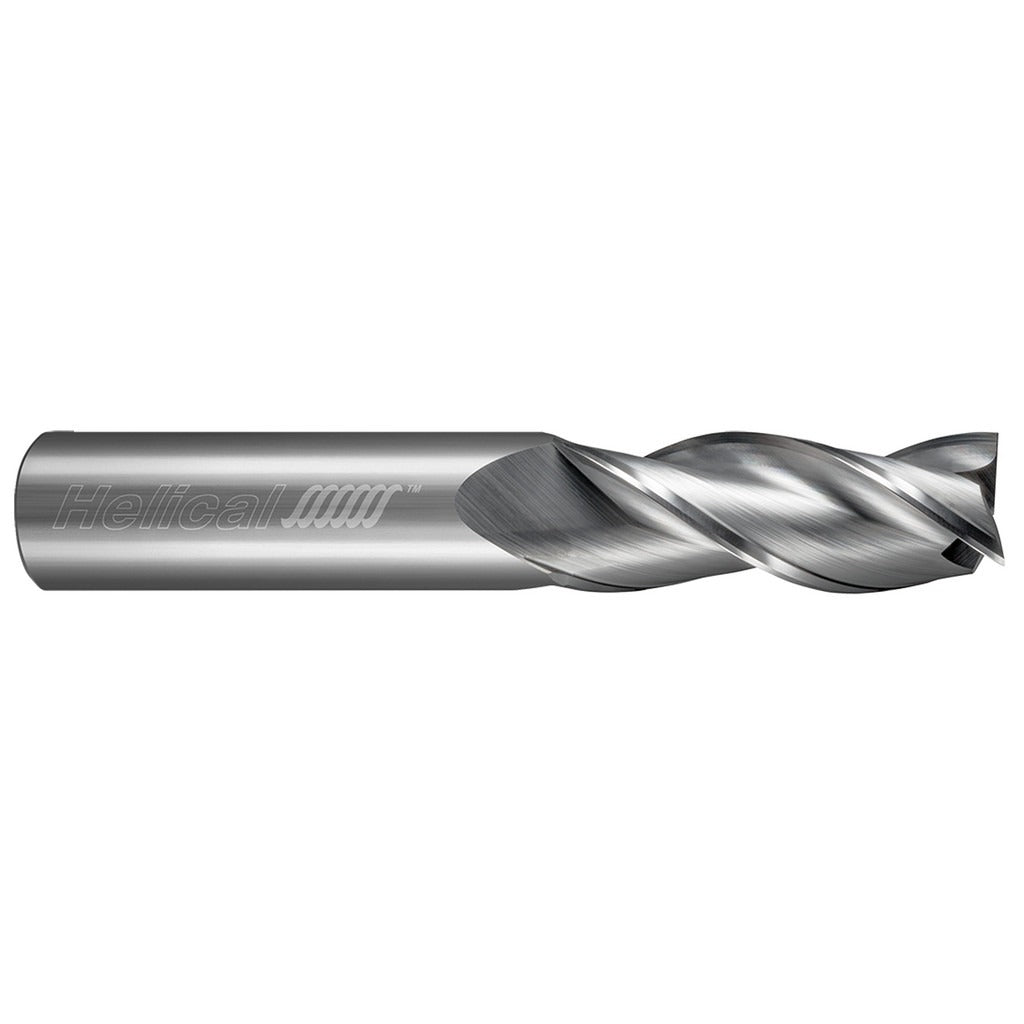

Helical Solutions 01015 Square End Mill 1/8 in 3 Flute Carbide

Product Description

The HELICAL SOLUTIONS 01015 is a solid carbide square end mill designed for high-performance material removal in aluminum machining applications. With a 0.1250 inch cutting diameter, 3-flute helical geometry at a 35-degree helix angle, and a 0.2500 inch length of cut, this end mill delivers efficient chip evacuation and clean edge finishes in non-ferrous metals. The bright/uncoated finish is well suited for aluminum, where coating adhesion can be a concern. It is centercutting, allowing both plunge and peripheral cutting operations. Machinists and CNC operators working in job shops, aerospace, or production environments will find this tool appropriate for slotting, profiling, and pocketing in aluminum stock.

This end mill is sized for light to medium material removal in aluminum. The 1/8 inch shank diameter fits standard collet systems and tool holders. With a 1.5000 inch overall length and a straight cylindrical shank, it is suited for close-tolerance work where rigidity matters. Right-hand cut and right-hand flute direction are standard for conventional CNC milling setups. This tool is part of the Helical Solutions End Mills for Aluminum series, 3-Flute Square 350 Helix family.

Key Features

• 3-flute helical design with 35-degree helix angle for efficient chip evacuation in aluminum
• Centercutting geometry supports plunge milling and ramping operations
• Bright/uncoated finish prevents built-up edge on non-ferrous materials
• Solid carbide construction provides rigidity and wear resistance at the 1/8 inch diameter
• Right-hand cut and right-hand flute direction for standard CNC milling spindles
• Straight cylindrical shank fits standard ER collets and milling chucks

Compatibility

Part of the Helical Solutions End Mills for Aluminum 3-Flute Square 350 Helix series. Designed for use in standard CNC machining centers and milling machines equipped with collet or chuck toolholders accepting a 0.1250 inch straight cylindrical shank.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Ensure the machine spindle is fully stopped and de-energized before changing tooling. Seat the shank fully and evenly in the collet or chuck and torque the retention nut to the toolholder manufacturer specification. Verify runout with a dial indicator before commencing a cut, particularly at this diameter where deflection and runout have a pronounced effect on tool life and surface finish.
