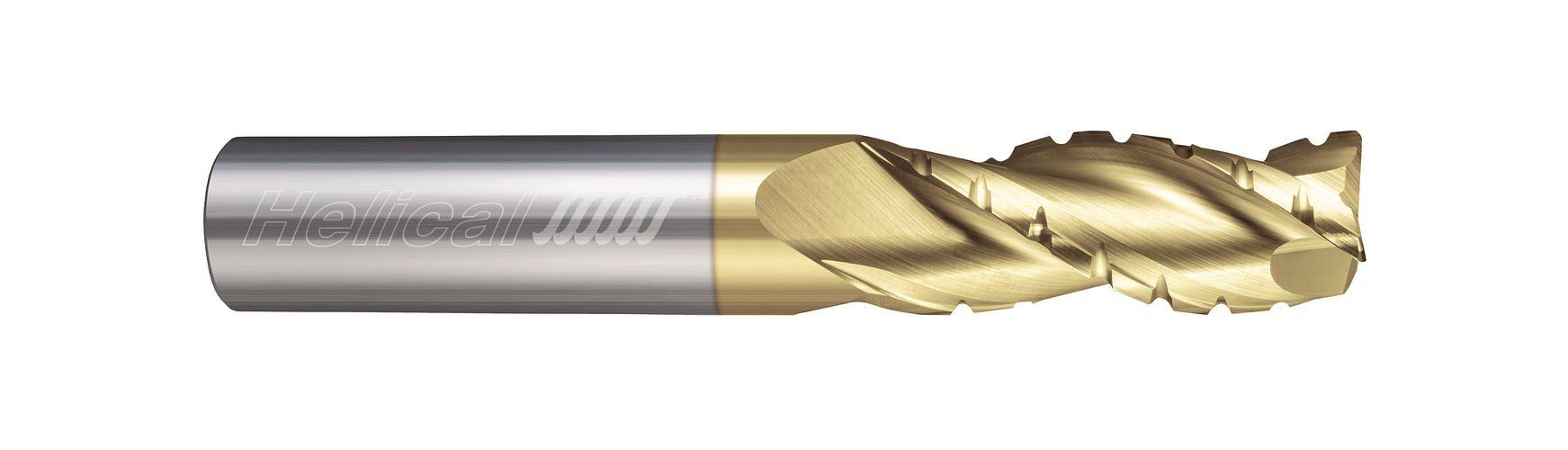

Helical 84797 1/8 in Diameter End Mill with 0.03 in Corner Radius

Product Description

The Helical 84797 is a one-eighth inch diameter end mill designed for effective milling of aluminum and non-ferrous metals. This carbide end mill features a corner radius of zero point zero three inches and an overall length of one and a half inches. It has three flutes that provide efficient material removal and cutting capability.

• Sharp cutting edges that enhance performance
• Solid carbide construction for durability
• ZPLUS coating for improved hardness and lubricity

Product Highlights

This end mill is suitable for use in CNC milling machines and provides precision cutting for various applications, ensuring high-quality finishes on aluminum and other soft metals.

Product Information

Standard Information

• Brand: Helical
• Material: Carbide

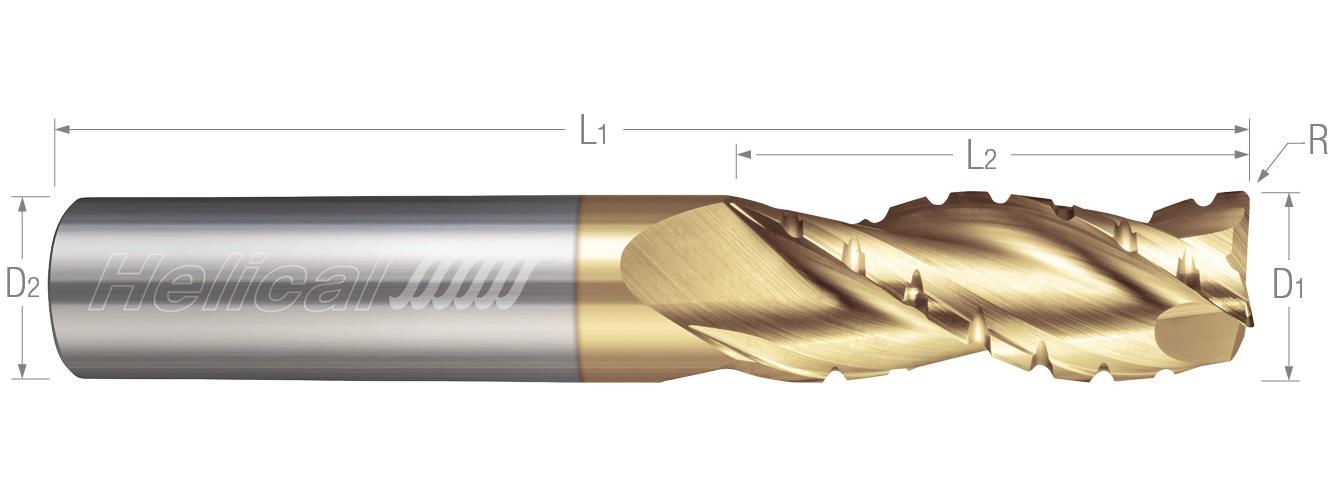

Technical Specifications

• Diameter: 0.1250 inches (3.175 mm)
• Shank Diameter: 0.1250 inches (3.175 mm)
• Flute Length: 0.2500 inches (6.350 mm)
• Overall Length: 1.5000 inches (38.100 mm)
• Number of Flutes: 3
• Corner Radius: 0.0300 inches
• Coating/Finish: ZrN
• Helix Angle: 35 degrees
