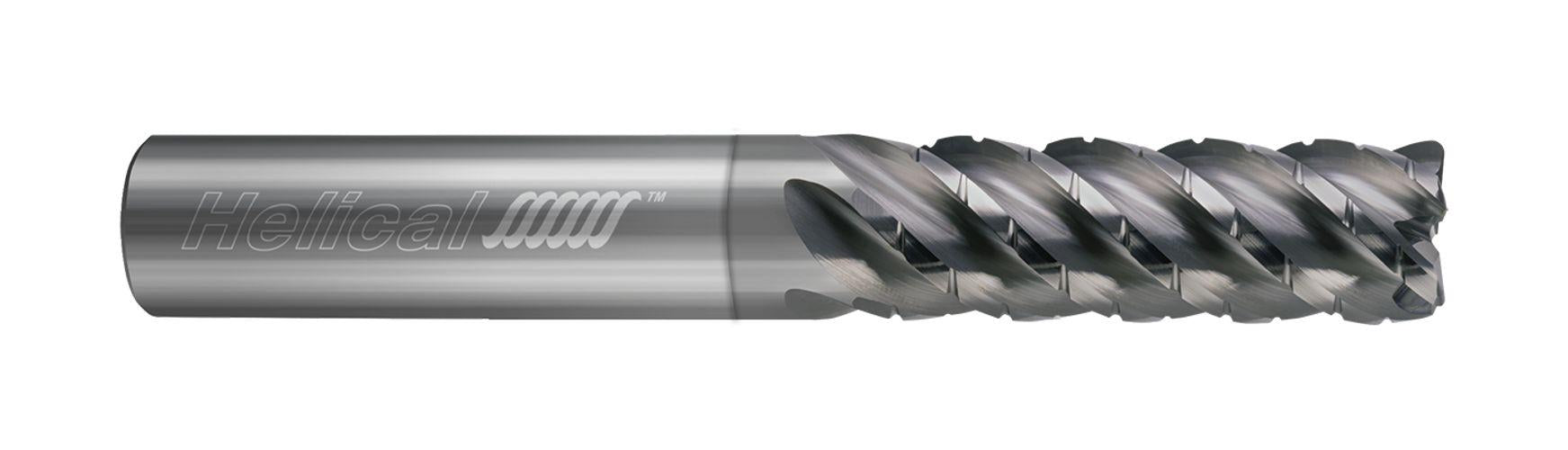

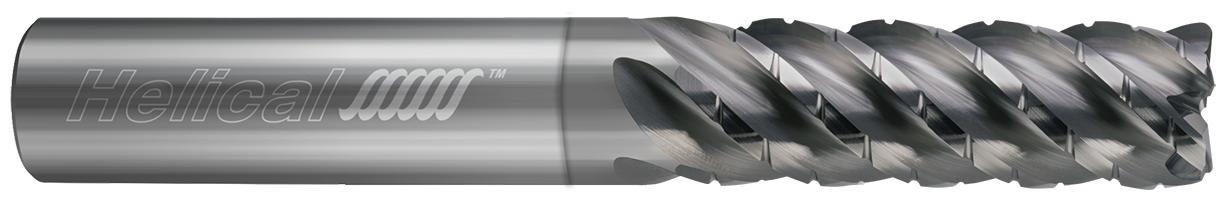

Helical 84244 Center Cut Corner Radius End Mill 3/8 in Diameter Cutter 5 Flutes NPLUS

Product Description

The Helical 84244 is a center cut corner radius end mill designed for precision work. This end mill features a diameter of three-eighths of an inch and is made from solid carbide. It is suitable for milling aluminum and includes a special NPLUS coating for improved performance.

• Center cut design for versatile machining operations.
• Five flutes enhance the surface finish while cutting.
• Corner radius of zero point zero three inches for better chip clearance.

Product Highlights

This end mill is effective for creating precise cuts in aluminum with a right-hand cutting direction. The unique flute geometry helps in achieving superior part finishes.

Product Information

Standard Information

• Brand: Helical
• Material: Solid Carbide

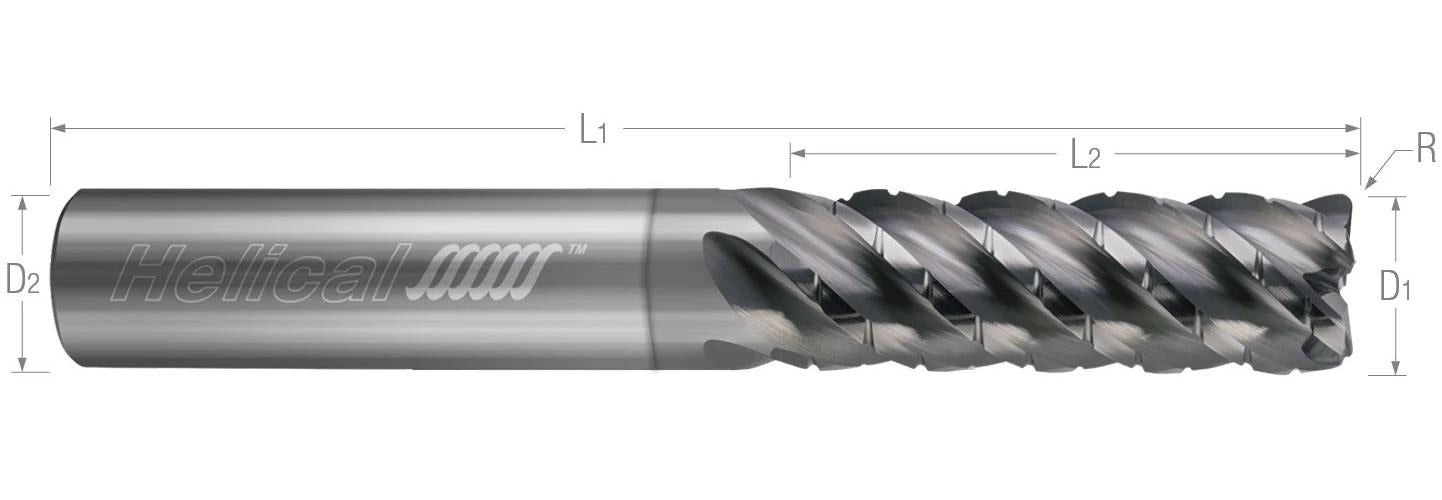

Technical Specifications

• Diameter: 0.3750 (3/8 inch)
• Shank Diameter: 0.3750 (3/8 inch)
• Flute Length: 1.5000 (1.5 inches)
• Overall Length: 3.5000 (3.5 inches)
• Number of Flutes: 5
• Corner Radius: 0.0300
• Coating/Finish: NPLUS
• Cutting Direction: Right Hand
