Helical 84232 1/4x1/4x1x3 Center Cut Corner Radius End Mill NPLUS

Product Description

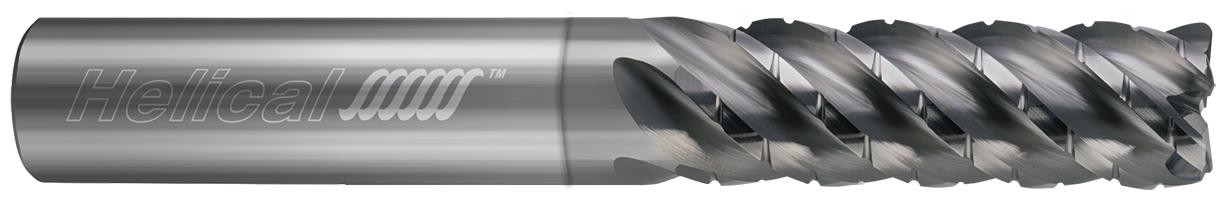

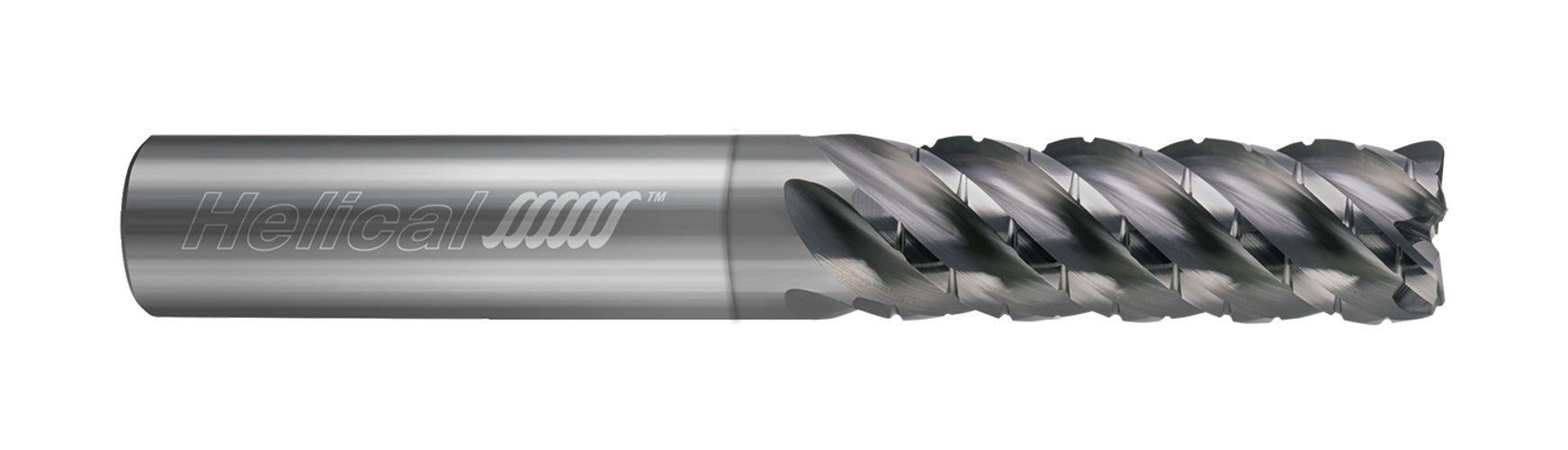

The Helical 84232 is a center cut corner radius end mill designed for precision milling tasks. This end mill features a diameter of one-fourth inch and a corner radius of 0.03 inches. The tool is crafted from solid carbide for durability and performance. It has a flute length of one inch and an overall length of three inches, making it suitable for various machining applications.

• Material: Solid Carbide
• Number of Flutes: Five
• Coating: NPLUS

Product Highlights

This end mill is suitable for high-performance milling in aluminum and other materials, providing a high-quality finish while maintaining tool life.

Product Information

Standard Information

• Brand: Helical
• Part Number: HEL-84232

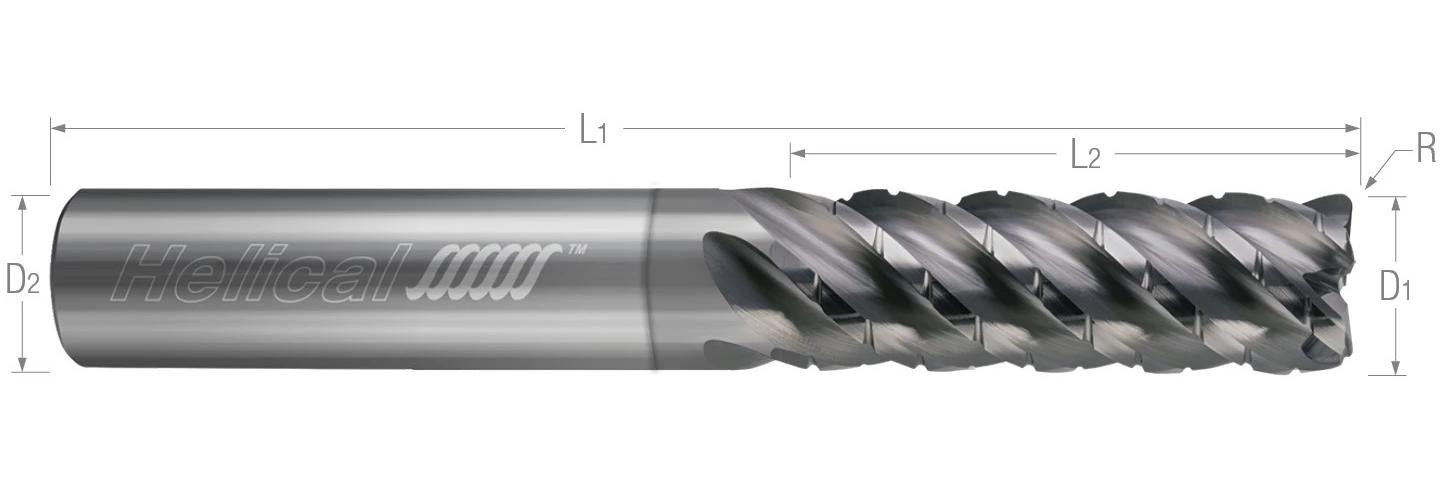

Technical Specifications

• Diameter: 0.2500 (6.350 mm)
• Shank Diameter: 0.2500 (6.350 mm)
• Flute Length: 1.0000 (25.400 mm)
• Overall Length: 3.0000 (76.200 mm)
• Corner Radius: 0.0300
• Cutting Direction: Right Hand
• Finish: NPLUS
• Type: Center Cut
