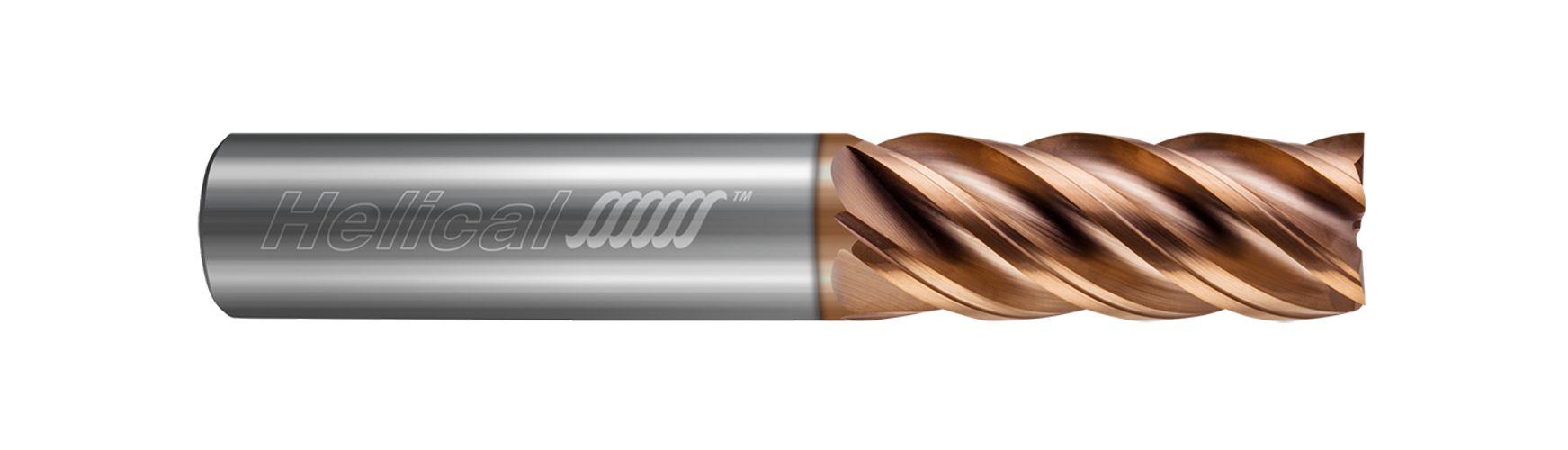

Helical 84093 Center Cut Square End Mill 1/8 in Dia Cutter 1/2 in Length of Cut 5 Flutes

Product Description

The Helical 84093 is a center cut square end mill designed for milling tasks. This tool features a diameter of one eighth inch and a cutting length of one half inch. With a total length of two and a half inches, it is built to handle stainless steel and other high-temperature materials effectively. It has five flutes for improved chip removal and reduced cutting forces.

• One eighth inch diameter cutter
• Overall length of two and a half inches
• Five flutes for efficient material removal

Product Highlights

This end mill is suitable for both high-speed machining and traditional milling applications.

Product Information

Standard Information

• Brand: Helical
• Material: Solid Carbide

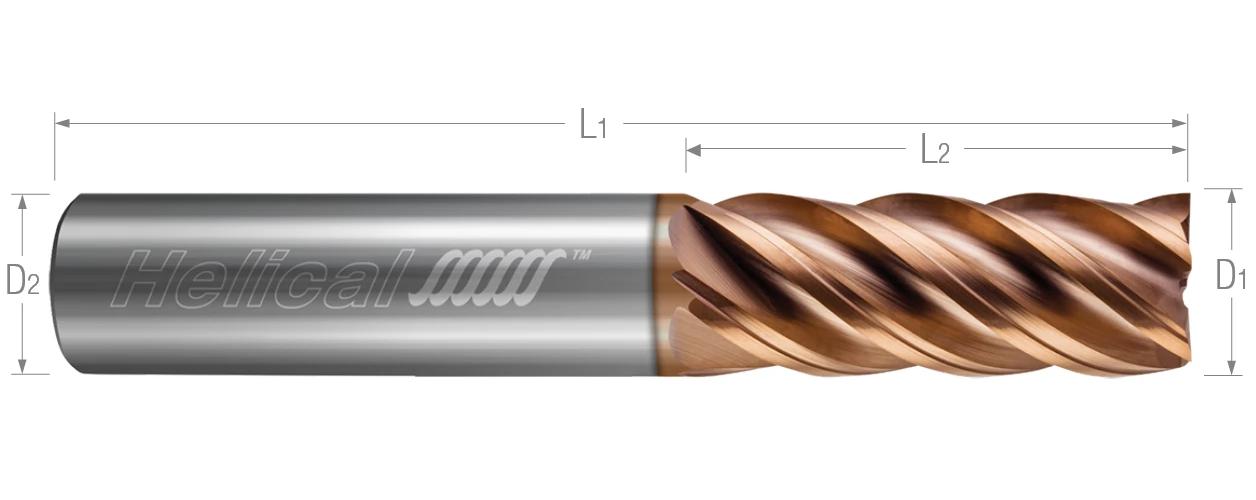

Technical Specifications

• Diameter: 0.1250 inches
• Shank Diameter: 0.2500 inches
• Flute Length: 0.5000 inches
• Overall Length: 2.5000 inches
• Number of Flutes: 5
• Cutting Direction: Right Hand
• Finish: TPLUS Coated
• End Shape: Square End
