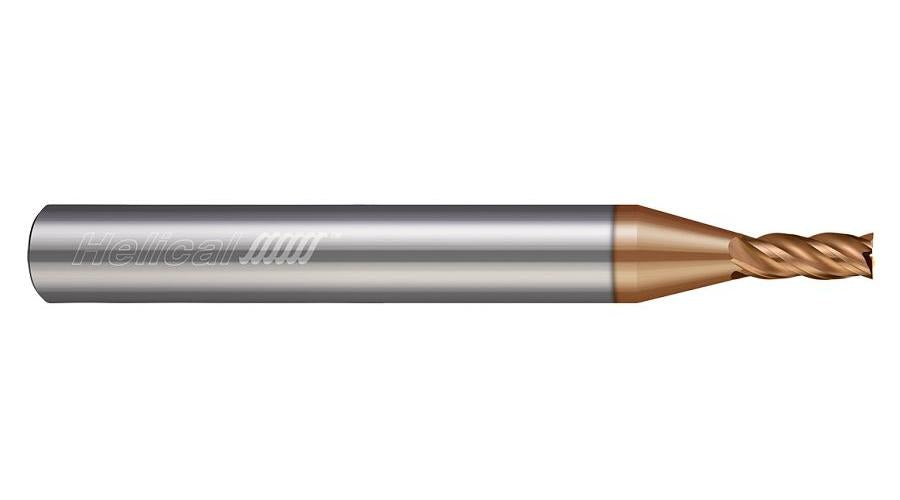

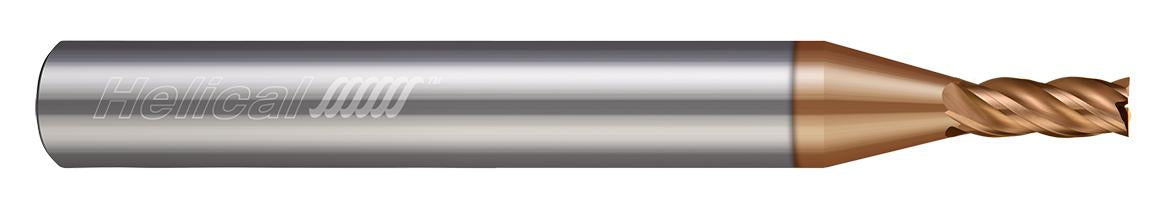

Helical 84050 Center Cut Square End Mill, 1/8 in Dia Cutter, 1/4 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL

Product Description

The Helical 84050 is a square end mill designed for use with stainless steel and high-temperature materials. This end mill measures one-eighth inch for cutter diameter, a quarter inch for shank diameter, and has an overall length of two and one-half inches. It features four flutes for efficient cutting.

• Material: Solid Carbide
• Coating: AlTiN Nano
• Cutting Style: Center Cut

Product Highlights

The Helical 84050 is ideal for various milling applications, ensuring precision and durability.

Product Information

Standard Information

• Brand: Helical Solutions
• Part Number: HEL-84050

Technical Specifications

• Diameter: 0.1250 (1/8 inch)
• Shank Diameter: 0.2500 (1/4 inch)
• Flute Length: 0.2500 (1/4 inch)
• Overall Length: 2.5000 (2-1/2 inches)
• # of Flutes: 4
• End Shape: Square End
• Cutting Direction: Right Hand
• Coating/Finish: TPLUS
