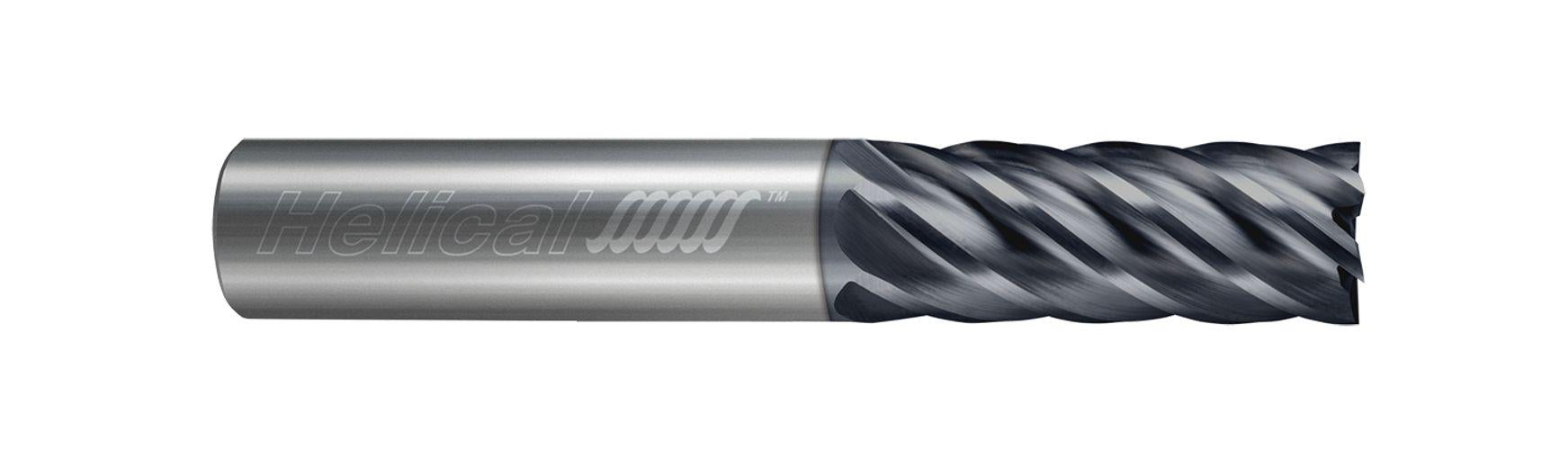

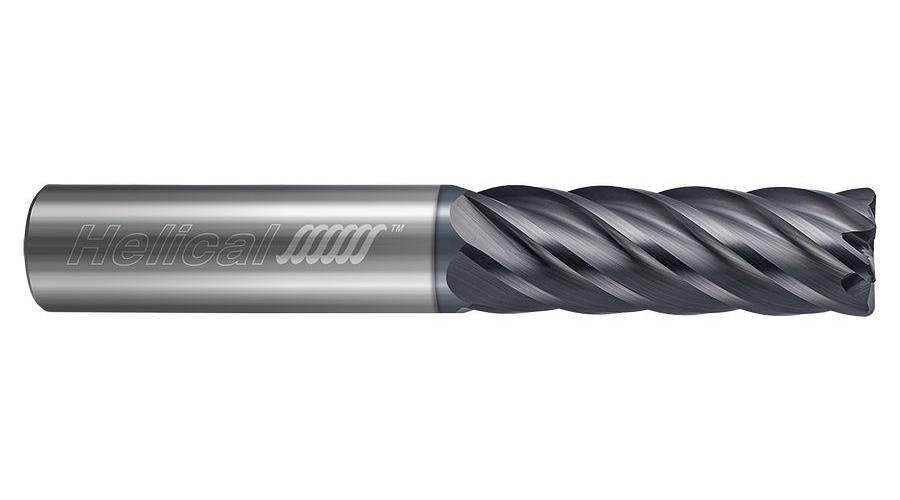

Helical 83923 1/2x2.5x5 Corner Radius End Mill APLUS

Product Description

The Helical 83923 is a corner radius end mill designed for metalworking applications. This solid carbide cutter features a diameter of one half inch, a corner radius of point zero three inches, and a cut length of two and one half inches. Its overall length is five inches, making it suitable for a range of milling tasks.

• Solid carbide construction for durability and performance.
• Six flutes for efficient material removal.
• APLUS coating to enhance tool life.

Product Highlights

This end mill is ideal for machining titanium materials, allowing for precise cuts and extended tool longevity.

Product Information

Standard Information

• Brand: Helical
• Material: Carbide

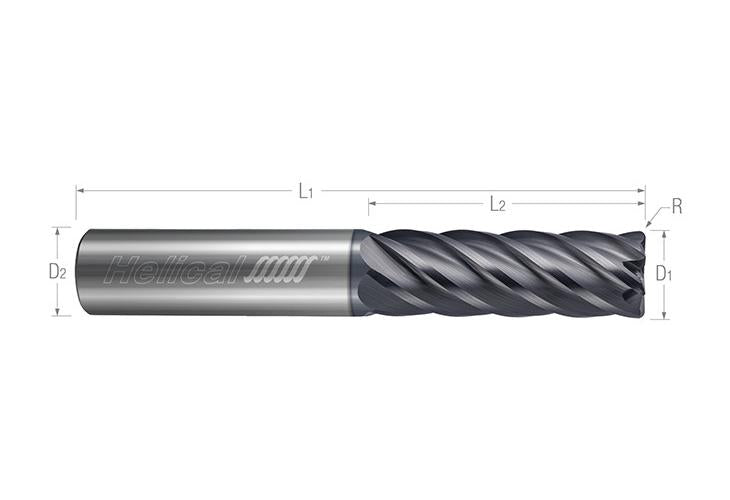

Technical Specifications

• Diameter: 0.5000 inches (1/2)
• Shank Diameter: 0.5000 inches (1/2)
• Flute Length: 2.5000 inches (2-1/2)
• Overall Length: 5.0000 inches (5)
• Number of Flutes: 6
• Corner Radius: 0.0300 inches
• Coating/Finish: APLUS
• End/Corner Shape: Corner Radius
