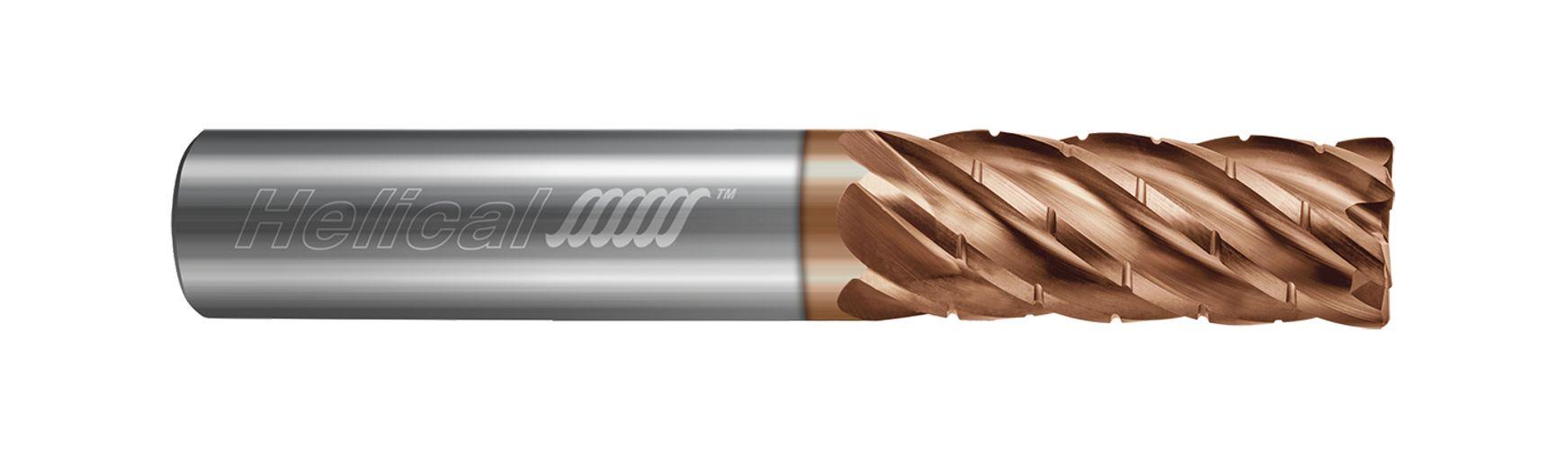

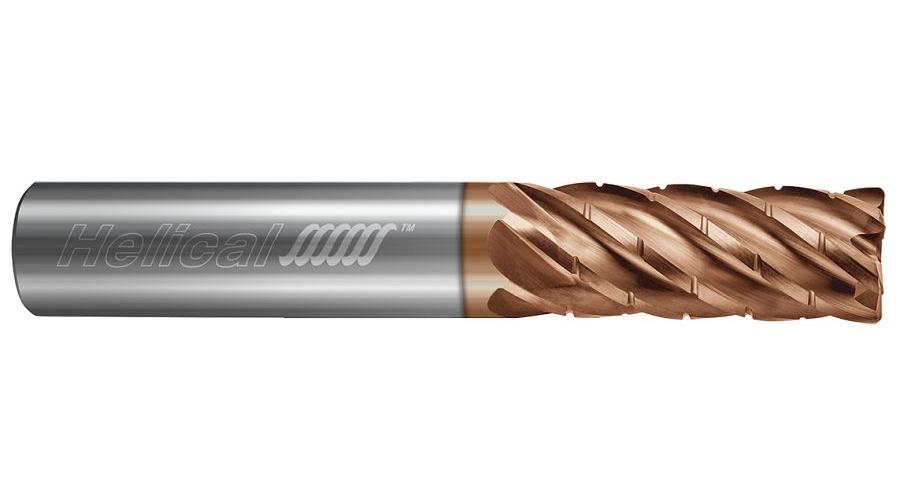

Helical 83155 Center Cut Corner Radius End Mill 1/2 in Dia Cutter 1/2 in Shank Diameter 3 in Overall Length

Product Description

The Helical 83155 is a center cut corner radius end mill with a diameter of 1/2 inch and a shank diameter of 1/2 inch. This end mill is designed for stainless steel and high-temperature materials. It features a corner radius of 0.03 inch and a length of cut of 1-1/4 inches, making it suitable for both roughing and finishing applications. The mill includes six flutes which enhance chip removal and improve cutting performance.

• Engineered for maximum edge strength
• Variable pitch geometry for reduced chatter
• Solid carbide construction for durability

Product Highlights

The Helical 83155 end mill is ideal for milling applications requiring high precision. It reduces neck diameter for maximum strength in deep pocketing, enhancing overall tool life.

Product Information

Standard Information

• Brand: Helical
• Material: Solid Carbide

Technical Specifications

• Diameter: 1/2 inch
• Shank Diameter: 1/2 inch
• Flute Length: 1-1/4 inches
• Overall Length: 3 inches
• Corner Radius: 0.03 inches
• Number of Flutes: 6
• Cutting Direction: Right Hand
• Finish: TPLUS
