Helical 83040 1/2x5/8x7 5FL R.03 Carb E.M Aplus coated

Product Description

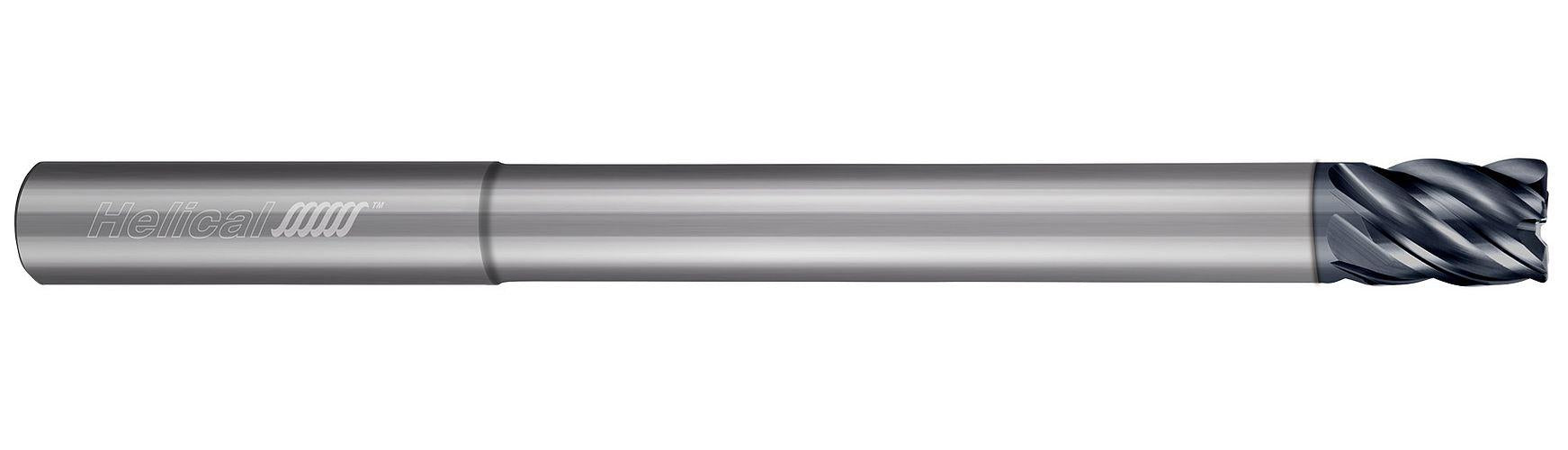

The Helical 83040 is a carbide corner radius end mill designed for machining steel. It features a half-inch cutter diameter and a corner radius of point zero three inches. This end mill has five flutes, providing efficient chip removal and optimal cutting performance.

• Half-inch cutter diameter for versatile applications
• Five flutes for enhanced chip removal
• Aplus coating for extended tool life

Product Highlights

This end mill is suitable for high-speed machining, ensuring precision and durability during operation. Ideal for various materials, including steel and stainless steel, it delivers reliable performance and longevity.

Product Information

Standard Information

• Brand: Helical
• Manufacturer: Helical Solutions

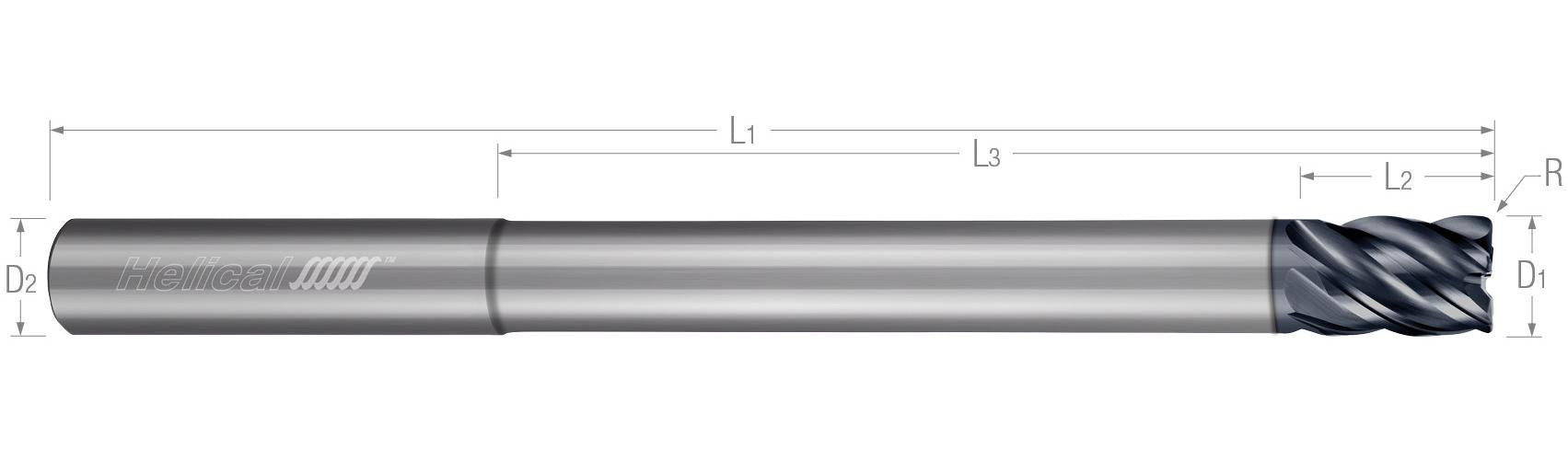

Technical Specifications

• Diameter: 0.5000 inches
• Shank Diameter: 0.5000 inches
• Flute Length: 0.6250 inches
• Overall Length: 7.0000 inches
• Corner Radius: 0.0300 inches
• Material: Carbide
• Coating/Finish: AlTiN
• Number of Flutes: 5
• End Shape: Corner Radius
