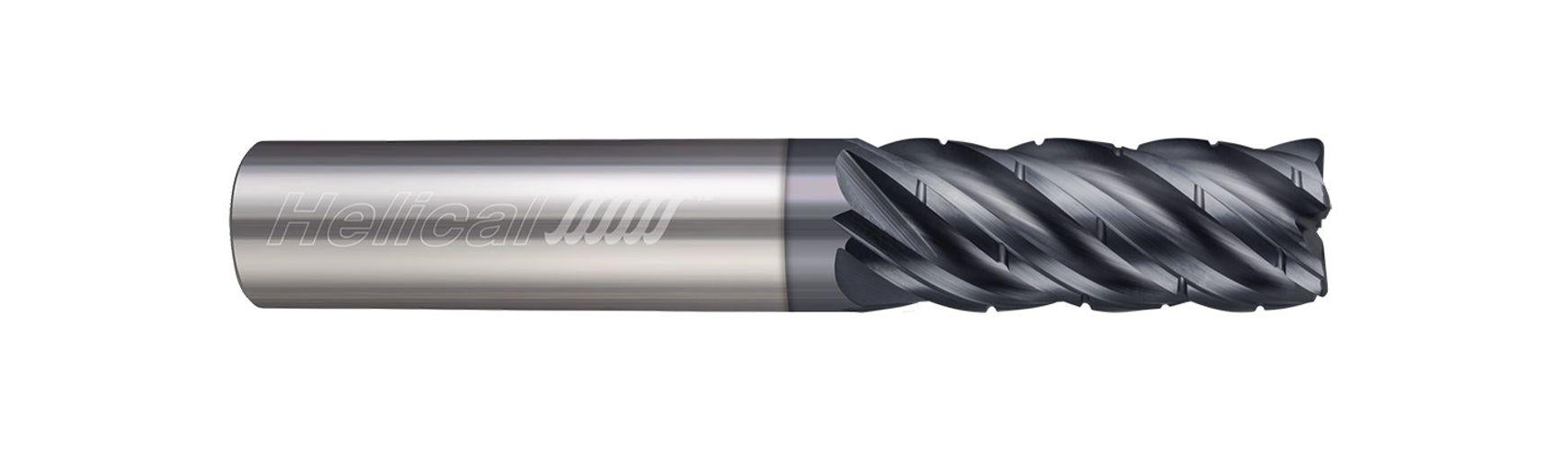

Helical 81957 HEL 3/16x3/4x2.5 R.010 5F APLUS CARB C/B ROUGHING MILL CYL

Product Description

The Helical 81957 is a carbide roughing mill cutter designed for milling applications. This end mill features a corner radius of 0.010 inches, providing enhanced chip removal and structural integrity during operation.

• Manufactured with five flutes for efficient material removal.
• Coated with AlTiN for extended tool life and better performance in various machining applications.
• Overall length measures two and a half inches with a flute length of three-quarters of an inch.

Product Highlights

This roughing mill cutter is optimized for both roughing and finishing processes, making it suitable for a variety of materials.

Product Information

Standard Information

• Brand: Helical
• Part Number: HEL-81957

Technical Specifications

• Diameter: 0.1875 inches (3/16)
• Shank Diameter: 0.1875 inches (3/16)
• Flute Length: 0.7500 inches (3/4)
• Overall Length: 2.5000 inches (2 1/2)
• Number of Flutes: 5
• Corner Radius: 0.0100 inches
• Coating/Finish: AlTiN
• End/Corner Shape: Corner Radius
