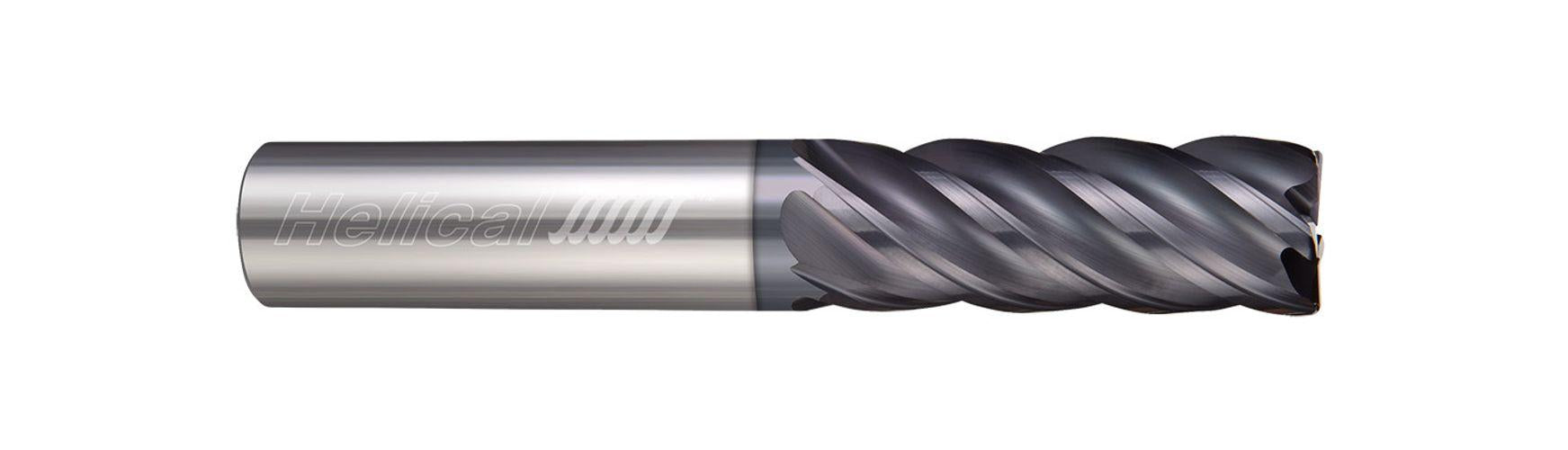

Helical 81731 Helical Carb E.M 0.2187x7/16x2.5 5F Aplus HEV-R-50218-R.010

Product Description

The Helical 81731 is a solid carbide end mill designed for precision milling tasks. With a diameter of 0.2187 inches and an overall length of two and a half inches, this tool is suitable for a variety of applications. The carbide construction ensures durability and performance in metalworking.

• Five flutes for efficient chip removal.
• Corner radius of 0.0100 inches enhances cut quality.
• Ideal for milling steel and titanium materials.

Product Highlights

This end mill features a corner radius design, making it perfect for creating smooth, rounded edges on metal parts.

Product Information

Standard Information

• Brand: Helical
• Material: Carbide

Technical Specifications

• Diameter: 0.2187 inches (5.556 mm)
• Shank Diameter: 0.2500 inches (6.350 mm)
• Flute Length: 0.4375 inches (11.113 mm)
• Overall Length: 2.5000 inches (63.500 mm)
• Number of Flutes: 5
• Corner Radius: 0.0100 inches
• Coating/Finish: AlTiN
• End/Corner Shape: Corner Radius
