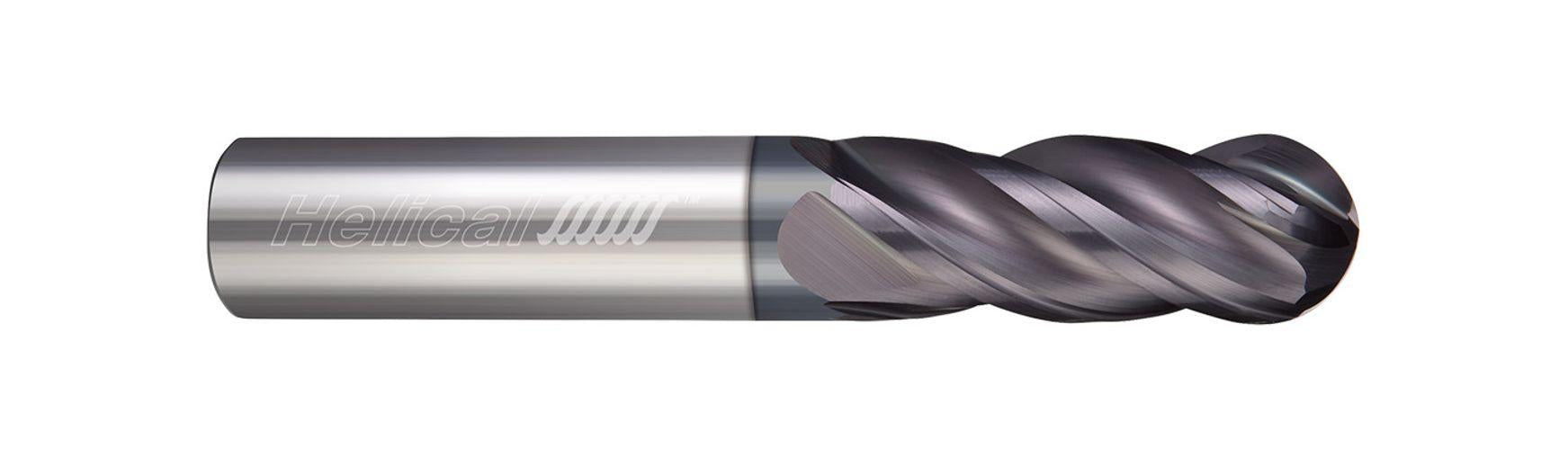

Helical 81676 E.MILL 3/16 in Dia Cutter 2-1/2 in Overall Length APLUS

Product Description

The Helical CA BN E.MILL 3/16x1x2.5 4F Aplus HSV-M-40187-BN is a solid carbide end mill designed for high performance in milling applications. This product features a diameter of three-sixteenths of an inch and an overall length of two and a half inches. Its four flutes and ball end shape enable effective cutting in various materials.

• Material: Solid Carbide
• Coating: AlTiN for improved durability
• Type: Center Cut with right hand cutting direction

Product Highlights

Ideal for machining tasks, this end mill excels at both roughing and finishing work. The design minimizes chatter and vibrations, resulting in improved surface finishes on the components.

Product Information

Standard Information

• Brand: Helical
• Part Number: HEL-81676

Technical Specifications

• Diameter: 0.1875 (3/16 in)
• Shank Diameter: 0.1875 (3/16 in)
• Flute Length: 1.0000 in (25.400 mm)
• Overall Length: 2.5000 in (63.500 mm)
• Number of Flutes: 4
• End/Corner Shape: Ball End
• Cutting Direction: Right Hand
• Finish: APLUS
