Helical 81414 Helical Carbide E.Mill 3/8 Diameter 1-1/4 Flute Length ZPLUS

Product Description

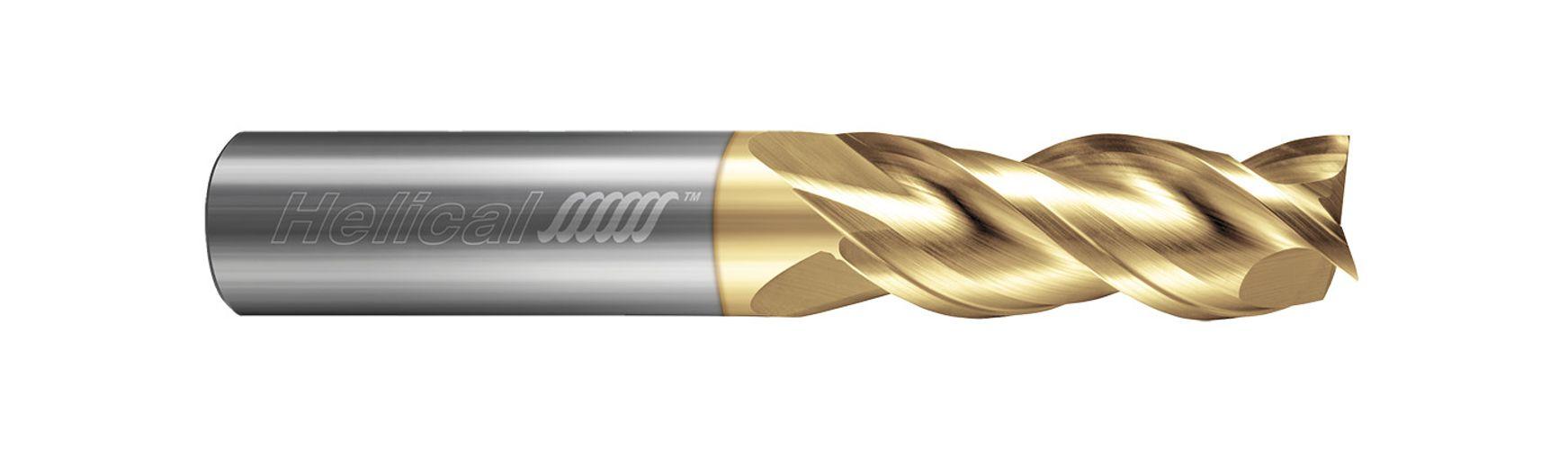

The Helical 81414 is a carbide end mill designed for efficient milling applications. This tool features a diameter of three eighths of an inch, a flute length of one and one-fourth inches, and an overall length of three inches. The ZrN coating provides enhanced durability for extended use.

• Material: Carbide
• Coating: ZrN
• Number of Flutes: 3

Product Highlights

The Helical 81414 offers solid performance in milling applications with its square end design, making it suitable for precise cutting in various materials, particularly aluminum and non-ferrous metals.

Product Information

Standard Information

• Brand: Helical
• MPN: 81414

Technical Specifications

• Diameter: 0.3750 inches (3/8 inches)
• Shank Diameter: 0.3750 inches (3/8 inches)
• Flute Length: 1.2500 inches (31.750 mm)
• Overall Length: 3.0000 inches (76.200 mm)
• End Shape: Square End
• Coating/Finish: ZrN
• Cutting Direction: Right Hand
• Helix Angle: 40 degrees
