Helical 81362 HEL 1/8x3/4x2.5 SQ 3F 35DEG ZPLUS CARB ENDMILL ROUGHING ALUM

Product Description

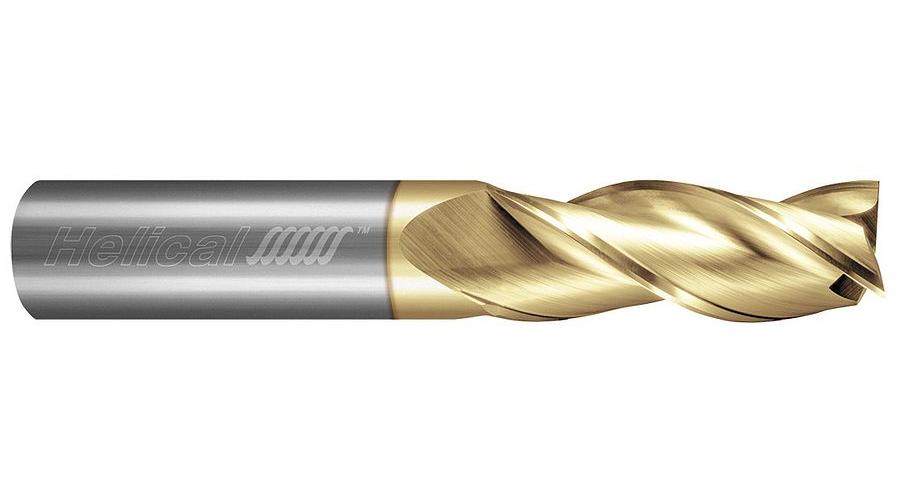

The Helical 81362 is a square end mill designed for cutting aluminum and non-ferrous metals. This end mill features a diameter of one eighth of an inch and a flute length of three fourths of an inch. With three flutes and a forty-five degree helix angle, it ensures effective material removal and surface finish.

• Square end shape for precise cutting applications
• Carbide construction for durability
• ZPLUS coating for improved hardness and lubricity

Product Highlights

This end mill is suitable for ramping applications and deep pocketing due to its unique three teeth-to-center end geometry. Its reduced neck design offers maximum strength and stability, while the wiper flat aids in achieving superior floor finishes.

Product Information

Standard Information

• Brand: Helical
• Part Number: HEL-81362

Technical Specifications

• Material: Carbide
• Coating/Finish: ZrN
• Number of Flutes: 3

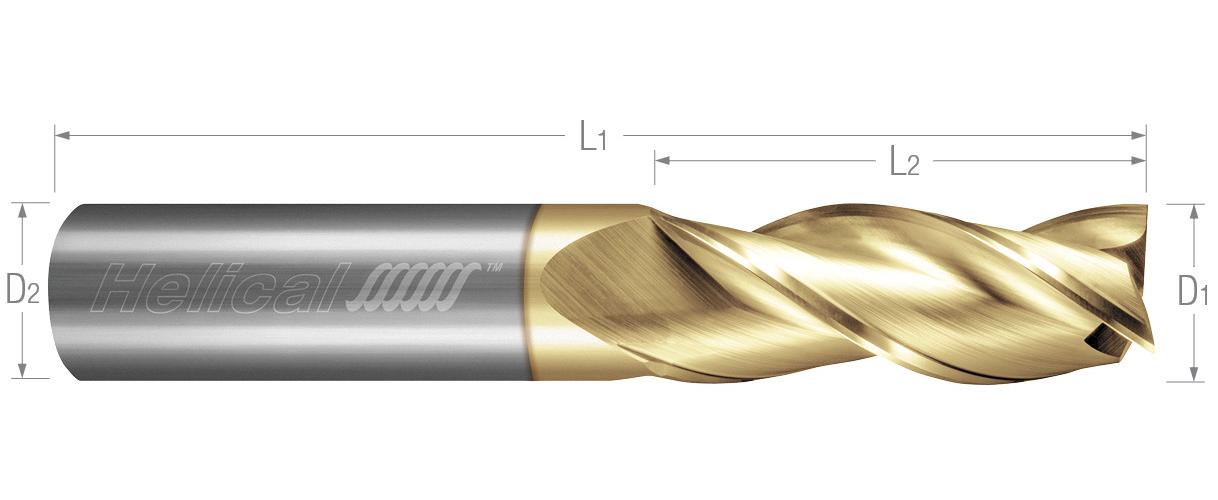

• Diameter: 0.1250 inches
• Shank Diameter: 0.1250 inches
• Flute Length: 0.7500 inches
• Overall Length: 2.5000 inches
• End Shape: Square End
