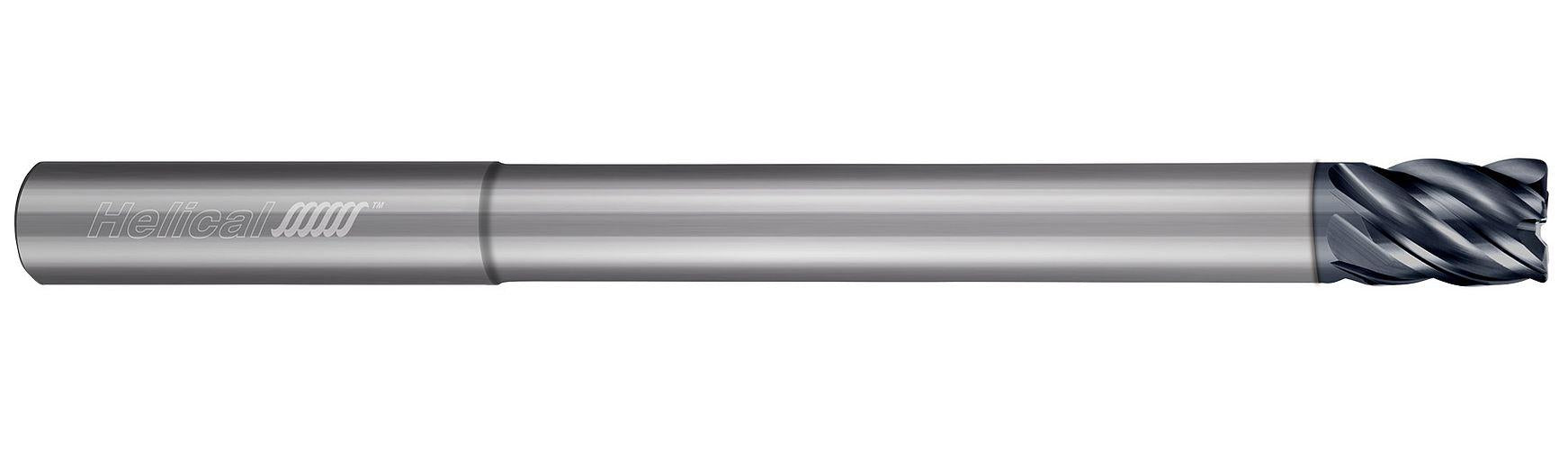

Helical 51319 HEL 5/8x3/4x6 R.120 RCH=2.3/8 5F APLUS CARB VP ENDMILL CYL

Product Description

The Helical 51319 end mill features a five-flute design suitable for milling applications. This solid carbide end mill has a diameter of five-eighths inches and a corner radius of zero point one two inches. It is built for precision and cutting efficiency.

• Five flutes for improved chip evacuation
• Overall length of six inches
• Solid carbide construction enhances durability

Product Highlights

This end mill is designed with a corner radius for effective machining on curved surfaces. The use of solid carbide provides longevity and performance in tough materials.

Product Information

Standard Information

• Brand: Helical
• Material: Carbide

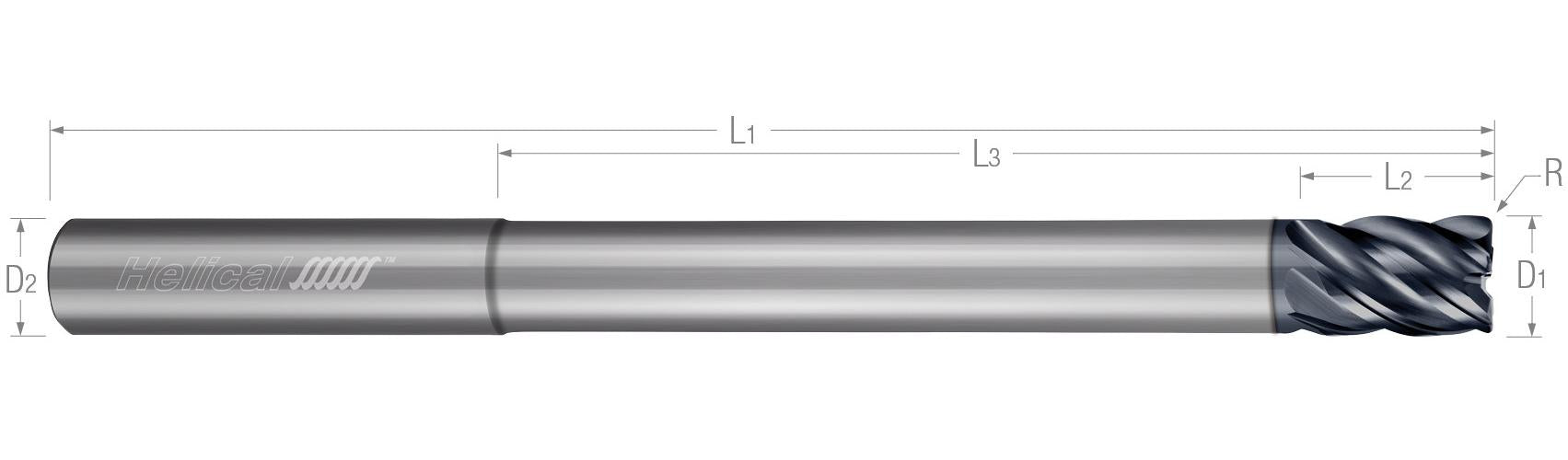

Technical Specifications

• Diameter: 0.6250 inches
• Shank Diameter: 0.6250 inches
• Flute Length: 0.7500 inches
• Overall Length: 6.0000 inches
• Corner Radius: 0.1200 inches
• # of Flutes: 5
• Coating/Finish: AlTiN
• End/Corner Shape: Corner Radius
