Helical 29617 Helical CarE.M. 3/4 In Diameter Cutter 3F Zplus H45AL-C-L-30750-R.030

Product Description

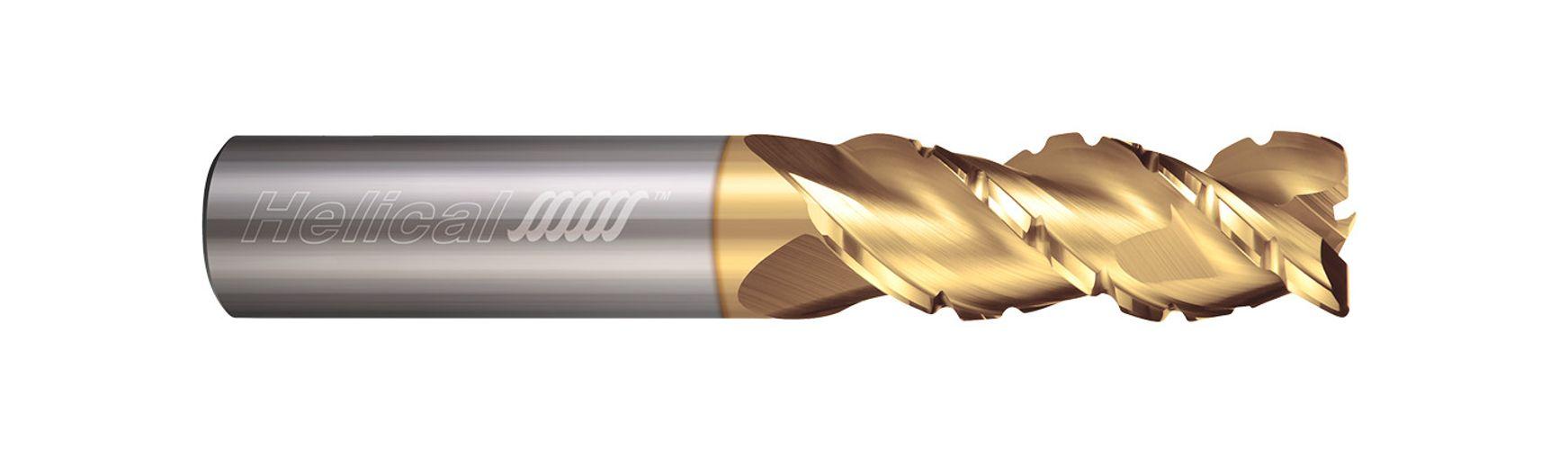

The Helical brand, part number 29617, offers a corner radius end mill designed for precision milling. This solid carbide tool is capable of handling various materials, including aluminum and non-ferrous metals. It features a diameter of three-fourths of an inch and a flute length of three and one-quarter inches, making it suitable for a range of milling applications.

• Material: Solid Carbide
• Coating: ZrN for improved durability
• Flute: Three flutes for efficient chip removal

Product Highlights

This tool's Zplus coating enhances hardness and provides lubricity. The cylindrical shank design ensures compatibility with high precision tool holders, giving users the reliability needed for demanding tasks.

Product Information

Standard Information

• Brand: Helical
• Part Number: 29617

Technical Specifications

• Diameter: 0.7500 in (19.050 mm)
• Shank Diameter: 0.7500 in (19.050 mm)
• Flute Length: 3.2500 in (82.550 mm)
• Overall Length: 6.0000 in (152.400 mm)
• Number of Flutes: 3
• Corner Radius: 0.0300 in
• End/Corner Shape: Corner Radius
• Cutting Direction: Right Hand
• Helix Angle: 45 deg
