Heli-coil A1185-04GN112 Free Running Insert 4-40 Titanium

Product Description

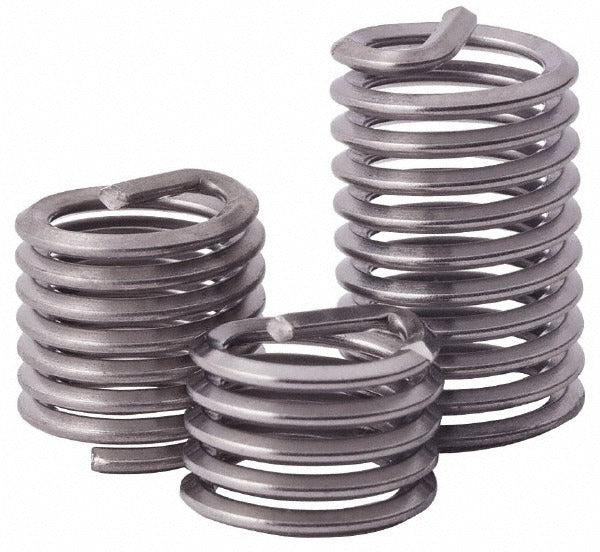

The HELI-COIL A1185-04GN112 is a free running wire thread insert designed to create strong, wear-resistant threads in tapped holes. This tanged titanium insert installs into a pre-tapped STI (Screw Thread Insert) hole and forms a 4-40 UNC internal thread. The 0.112 inch overall length gives a 1D length-to-diameter ratio, making it a compact choice for thin or shallow boss applications. Titanium construction delivers high strength with low weight, suitable for aerospace, military, and high-performance mechanical assemblies. Installation and removal are handled by licensed technicians or precision machinists working to spec-controlled procedures.

This insert is used wherever a 4-40 UNC thread must be installed or repaired in a parent material. Common applications include thin aluminum, magnesium, or composite housings where a fine machine screw thread must withstand repeated assembly cycles without galling or pull-out. The 1D insert length suits shallow bosses or panels where a longer insert will not fit. The tanged design allows positive seating during installation with a standard HELI-COIL installation tool, and the tang is broken off flush after seating.

Key Features

• 4-40 UNC thread form for small machine screw applications
• Titanium material - high strength-to-weight ratio, corrosion resistant
• Tanged design for controlled installation and positive engagement with installation tool
• 0.112 inch overall length at 1D length-to-diameter ratio for shallow-boss fitment
• Bright/uncoated finish - no added coating to alter dimensional tolerances
• 2-3/4 free coils providing consistent thread engagement

Compatibility

Designed as an OEM-style free running insert for use in any parent material tapped to the corresponding HELI-COIL STI tap specification for 4-40 UNC threads.

Installation Notes

Installation requires the correct HELI-COIL STI tap to prepare the parent hole before the insert is driven. A proper HELI-COIL installation tool matched to the 4-40 insert size must be used to seat the insert without distorting the coil. After the insert is fully seated, break off the installation tang using a tang break-off tool or sharp punch at the notch at the bottom of the insert. Do not attempt to install with a standard tap or driver, as this will damage the coil and the parent thread.
