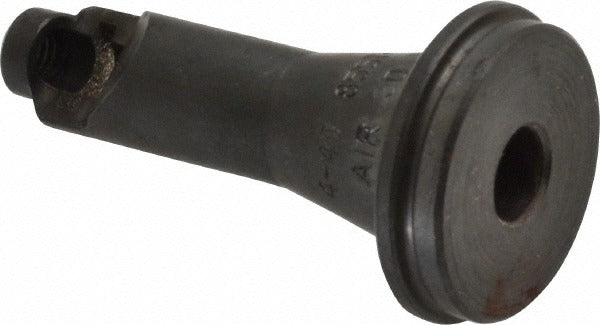

Heli-coil 8557-04-15 Prewinder Tool 4-40 Unc

Product Description

The HELI-COIL 8557-04-15 is a prewinder-style power installation tool designed for driving 4-40 UNC thread inserts in strip feed format. It attaches to a standard power driver and automates the installation of wire thread inserts, reducing hand fatigue and improving consistency on high-volume or repetitive insert jobs. The tool is engineered for 4-40 UNC thread geometry, matching insert pitch and lead angle precisely to seat inserts flush and true. Maintenance technicians, machine shops, and assembly professionals working with stripped or damaged threads use this tool to restore thread integrity in aluminum, steel, and other base materials.

This tool is suited for production and field repair applications where 4-40 UNC wire thread inserts are installed at volume. Strip feed compatibility means inserts feed continuously from a strip cartridge, keeping the tool loaded and the technician working without stopping to hand-load individual inserts. It is commonly used in aerospace, electronics, automotive, and general manufacturing environments where small-diameter UNC threads require reliable reinforcement.

Key Features

• Prewinder design winds the insert onto the mandrel before driving, ensuring correct installation depth and orientation
• Compatible with strip feed inserts for continuous, high-volume installation
• Sized specifically for 4-40 UNC thread inserts
• Designed for use with power drivers to reduce operator fatigue on repetitive jobs
• Maintains thread pitch alignment for consistent insert seating

Compatibility

Designed for use with 4-40 UNC strip feed wire thread inserts. Verify insert manufacturer and strip format compatibility before use, as insert geometry must match the tool mandrel specification.

Installation Notes

Installation should be performed by a machinist, assembler, or maintenance technician familiar with wire thread insert procedures. Ensure the base material hole is drilled and tapped to the correct STI (Screw Thread Insert) specification for 4-40 UNC before driving the insert. Set power driver torque to a low controlled setting and test on scrap material first to confirm seating depth. Do not use on untapped holes or with insert sizes other than 4-40 UNC strip feed format.
