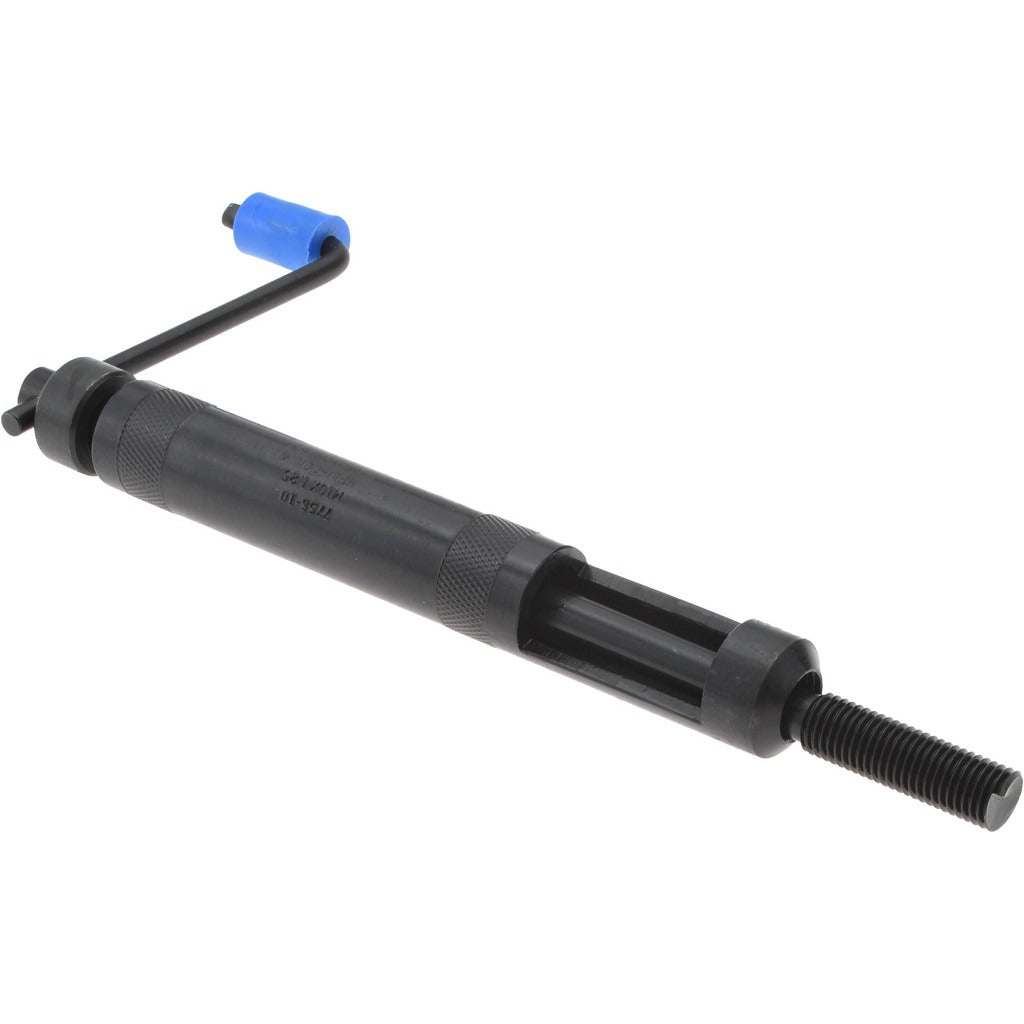

Heli-coil 7756-10 Thread Insert Tool M10 X 1.25 Prewinder

Product Description

The HELI-COIL 7756-10 is a hand installation tool designed for driving threaded wire inserts into M10 x 1.25 metric fine tapped holes. It is a Type II prewinder, meaning the insert is loaded onto the mandrel before engagement with the workpiece, reducing the chance of cross-threading or insert damage during installation. The prewinder body measures 25/32 inches in diameter and extends 5.25 inches in length, with a spinner diameter of 3-23/32 inches for comfortable hand torque. This tool is used by machinists, maintenance technicians, and field service professionals working on thread repair or thread reinforcement applications.

This tool is suited for repair and manufacturing environments where metric fine thread inserts are installed by hand without a power driver. Typical applications include thread repair on aluminum engine components, hydraulic manifolds, and precision assemblies where an M10 x 1.25 thread specification is required. The prewinder style is preferred when insert alignment is critical or when working in confined areas where a straight start is difficult to achieve manually.

Key Features

• Prewinder Type II design preloads the insert onto the mandrel before installation, improving alignment and reducing installation errors
• Sized for M10 x 1.25 metric fine thread inserts
• Prewinder body diameter of 25/32 inches fits standard M10 tapped hole approaches
• 5.25-inch prewinder length provides leverage for hand torque without a driver
• Spinner diameter of 3-23/32 inches allows comfortable grip and controlled rotation
• Hand-operated tool requires no power source, suitable for field and bench use

Compatibility

Designed for use with M10 x 1.25 metric fine thread wire inserts. Intended for hand installation of helical thread inserts in applications specifying the M10 x 1.25 thread standard.

Installation Notes

This tool is installed and operated by hand; no power tools or pneumatic equipment are required or recommended with this prewinder type. Before use, confirm the tapped hole meets the correct M10 x 1.25 thread specification and is free of debris. Load the insert onto the mandrel per the insert manufacturer's procedure before engaging the hole. After the insert is seated, use the appropriate break-off tool to remove the driving tang if required by the insert design.
