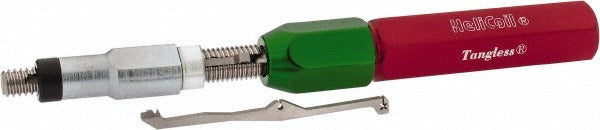

Heli-coil 7571-4B Thread Insert Hand Installation Tool 1/4-20

Product Description

The HELI-COIL 7571-4B is a hand installation tool designed for driving tangless thread inserts into prepared holes. It is engineered specifically for 1/4-20 UNC thread sizes and provides the controlled torque needed to seat inserts correctly without power tools. Technicians working on threaded repair or original thread installation in metal, plastic, or composite materials rely on this tool to achieve clean, accurate insert placement. The tool accepts tangless-style inserts and is suitable for bench work or field service where a hand-operated tool is the right fit.

This tool is used in maintenance, repair, and manufacturing applications where 1/4-20 UNC tangless thread inserts must be installed by hand. It is well suited for aerospace, automotive, industrial, and general mechanical service environments. Licensed mechanics, millwrights, and field service technicians working on equipment with damaged or stripped threads will find this tool appropriate for low-volume or spot-repair insert installation work.

Key Features

• Matched to 1/4-20 UNC minimum thread size for accurate insert driving
• Compatible with tangless thread insert style
• Hand installation type - no power tool required
• Lightweight design at 0.6 pounds for easy field use
• Thread standard: UNC for broad fastener compatibility

Compatibility

Designed for use with tangless thread inserts in 1/4-20 UNC thread applications. Compatible insert style and thread size must match the tool specification for proper function.

Installation Notes

Installation should be performed by a qualified mechanic or technician familiar with thread insert systems. Ensure the receiving hole is drilled and tapped to the correct insert-ready specification before driving the insert. Do not use this hand tool with a power driver or apply excessive rotational force, as this can damage the insert or the parent material. Follow the insert manufacturer's preparation and installation sequence for best results.
