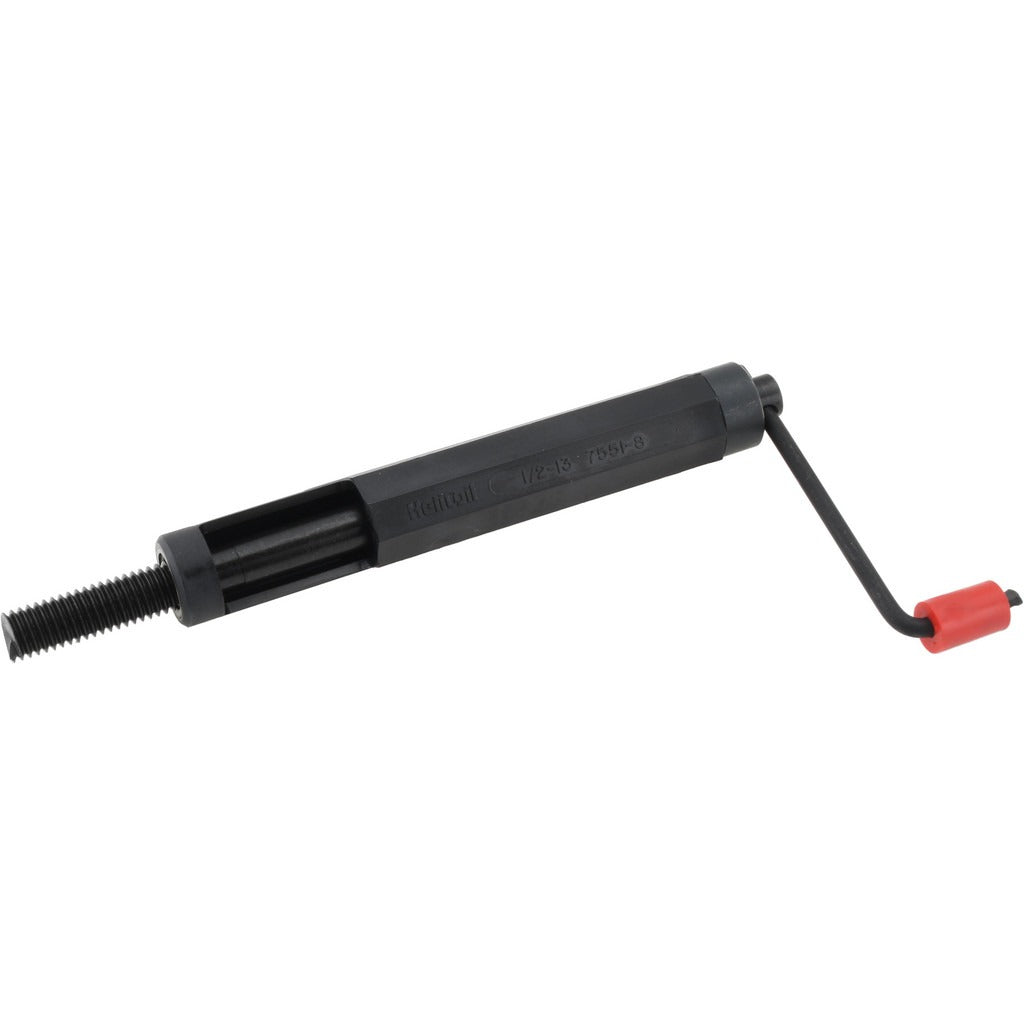

Heli-coil 7551-8 Thread Insert Tool 1/2-13 Unc Prewinder

Product Description

The HELI-COIL 7551-8 is a hand installation tool designed for installing wire thread inserts into 1/2-13 UNC tapped holes. Built as a Type II Prewinder, it compresses the insert onto the mandrel before driving it into the prepared bore, reducing installation errors and cross-threading. The prewinder body measures 7/8 inch in diameter, with a spinner diameter of 3-23/32 inches and a prewinder length of 1/2 inch. The tool weighs 0.83 pounds, making it easy to handle in tight work areas. Machinists, maintenance technicians, and field service professionals use this tool wherever threaded repair or original installation of wire thread inserts is required.

This tool is suited for repair and production applications involving 1/2-13 UNC threaded bores in metal components. Typical use cases include restoring stripped threads in aluminum, cast iron, or steel housings found in HVAC equipment, pump bodies, compressor casings, and industrial machinery. The prewinder design supports both free-running and locking insert types, giving the technician flexibility depending on whether vibration resistance is required in the final assembly.

Key Features

• Type II Prewinder design compresses insert before installation, reducing installation errors
• Compatible with both free-running and locking wire thread insert styles
• Sized for 1/2-13 UNC thread standard
• Prewinder body diameter of 7/8 inch fits standard tooling clearances
• Spinner diameter of 3-23/32 inches provides mechanical advantage for hand torquing
• Lightweight at 0.83 pounds for comfortable single-hand operation

Compatibility

Designed for use with free-running and locking wire thread inserts in 1/2-13 UNC thread size. Confirm insert manufacturer and series before use to ensure mandrel thread pitch matches the insert specification.

Installation Notes

Installation should be performed by a qualified machinist or maintenance technician familiar with thread insert repair procedures. Verify that the tapped hole meets the required tap drill diameter and depth specifications for the insert size before using this tool. No power source is required; this is a hand-operated tool. Avoid applying excessive downward force during spinning, as this can distort the insert or damage the prewinder mandrel.
