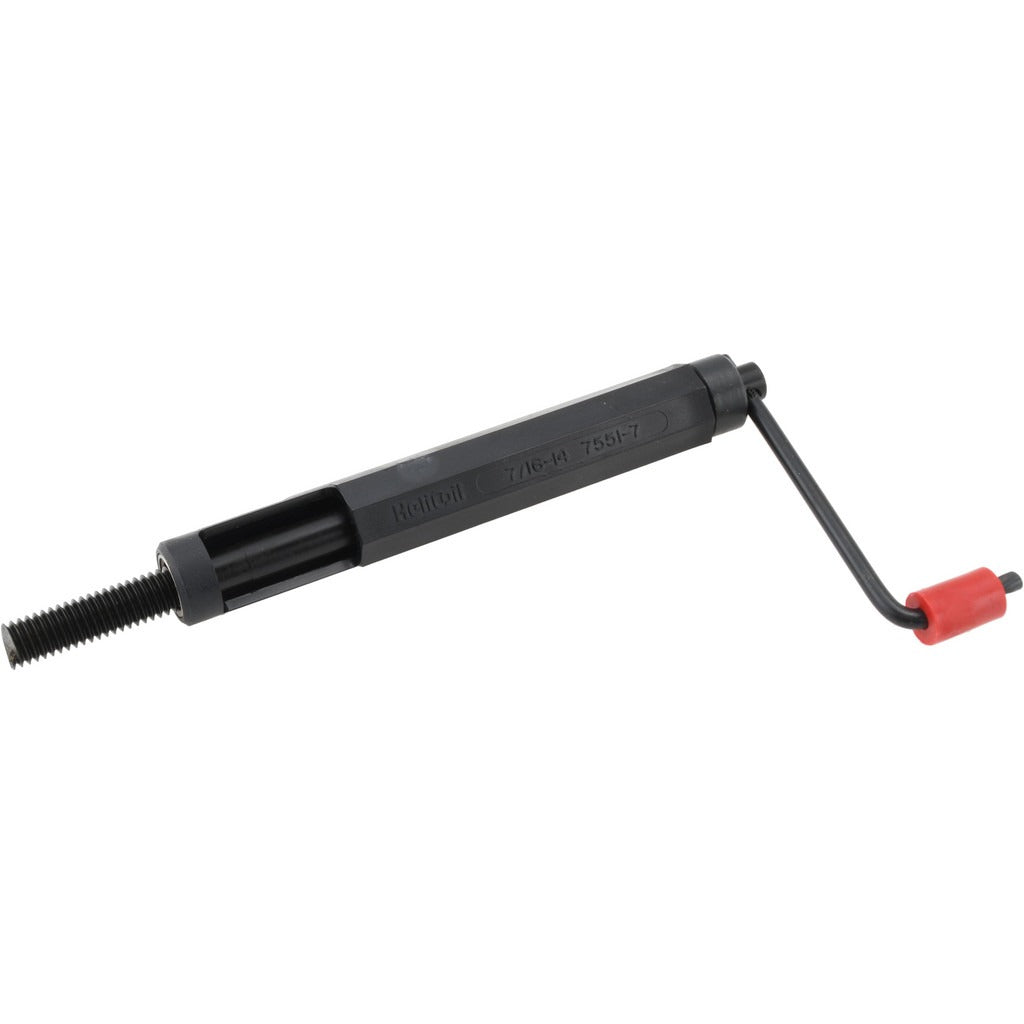

Heli-coil 7551-7 Thread Insert Tool 7/16-14 Unc Prewinder

Product Description

The HELI-COIL 7551-7 is a hand-operated thread insert installation tool designed for installing 7/16-14 UNC wire thread inserts. It uses a Type II Prewinder mechanism that compresses the insert for clean, accurate engagement into the receiving hole. The tool accepts both free-running and locking insert types, making it suitable for a range of repair and assembly applications. The prewinder body measures 25/32 inches in diameter and the spinner measures 3-23/32 inches in diameter. This is a hand-use tool intended for technicians and machinists performing thread repair or new thread installation on equipment and assemblies in the field or shop.

This tool is used wherever HELI-COIL or compatible wire thread inserts in the 7/16-14 UNC size are installed. Common applications include thread repair on machinery, engine components, structural fastener bosses, and industrial equipment. It is suited for both production assembly environments and field repair scenarios where a hand tool is preferred or required. The prewinder design ensures the insert coil is properly wound down before engagement, reducing installation errors and protecting threads in the parent material.

Key Features

• Type II Prewinder mechanism compresses insert coil for accurate, controlled installation
• Compatible with both free-running and locking wire thread inserts
• Designed for 7/16-14 UNC thread size
• Prewinder body diameter: 25/32 inches
• Spinner diameter: 3-23/32 inches
• Hand-operated - no power source required, suitable for field use

Compatibility

Designed for use with free-running and locking wire thread inserts in the 7/16-14 UNC thread standard. Intended as an OEM-matched installation tool for HELI-COIL 7/16-14 UNC thread insert series.

Installation Notes

Installation is performed by hand and does not require power tools. Before installing thread inserts, ensure the parent hole has been properly drilled and tapped to the correct HELI-COIL tap size for 7/16-14 UNC threads. Load the insert into the prewinder, align with the tapped hole, and advance the spinner to drive the insert to the correct depth. Follow the insert manufacturer's installation depth specifications for the application.
