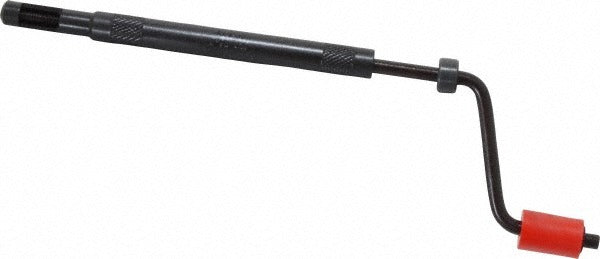

Heli-coil 7551-06 Thread Insert Tool 6-32 Unc Prewinder

Product Description

The HELI-COIL 7551-06 is a hand installation tool designed for setting wire thread inserts in 6-32 UNC threaded holes. It uses a Prewinder Type II design, which pre-winds the insert coil to a reduced diameter before threading it into the host material. This eliminates the need to manually compress the insert during installation and reduces the chance of cross-threading or coil damage. The tool accepts both free-running and locking insert styles in the 6-32 UNC size. Mechanics, maintenance technicians, and production assemblers use this tool wherever threaded insert repair or new installation is required in metal, plastic, or composite materials.

This tool is suited for use in light assembly and repair applications where 6-32 UNC thread inserts are installed by hand. Typical scenarios include field repair of stripped fastener holes, original equipment assembly lines, and maintenance operations on electrical enclosures, panels, and structural components. The prewinder body diameter of 0.375 inches and the overall length of 4.625 inches make it practical for close-tolerance work in confined installation areas. No power tool or press is required for operation.

Key Features

• Prewinder Type II design pre-winds insert coil to reduce diameter before entry into the host thread
• Compatible with both free-running and locking 6-32 UNC wire thread inserts
• Prewinder body diameter of 0.375 inches for access in tight spaces
• Overall length of 4.625 inches with a spinner diameter of 2.281 inches for controlled hand torque
• Hand-operated - no power tools required
• Sized specifically for 6-32 UNC thread standard

Compatibility

Designed for use with free-running and locking wire thread inserts in the 6-32 UNC thread size. Verify insert manufacturer and size before use to confirm fitment with this tool.

Installation Notes

Installation should be performed by a qualified technician familiar with wire thread insert procedures. Ensure the host hole is properly tapped to the correct 6-32 UNC specification before using this tool. Do not force the spinner if resistance is felt - verify thread alignment and insert seating before continuing. Follow the insert manufacturer guidelines for mandrel breakoff and tang removal after installation is complete.
