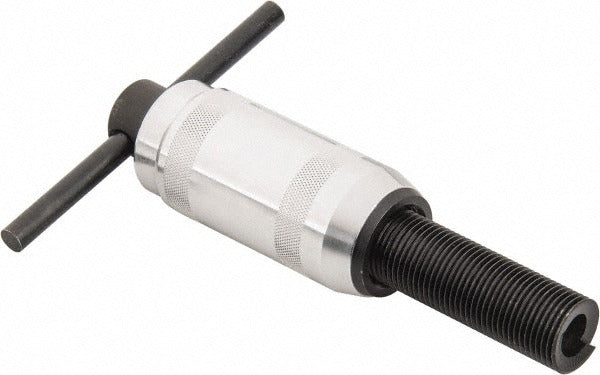

Heli-coil 535-14 Thread Insert Hand Installation Tool 7/8-14 Unf

Product Description

The HELI-COIL 535-14 is a hand installation tool designed to drive threaded wire inserts into pre-tapped holes. It is a Type IV Non-Captive Prewinder, which means the tool winds the insert onto the mandrel before driving it into the host material. The 535-14 is built for 7/8-14 UNF thread inserts and accommodates both free-running and locking insert types. With a spinner diameter of 1.5 inches and a prewinder length of 2.875 inches, it is compact enough for bench work and light field use. Machinists, maintenance technicians, and assembly professionals use this tool wherever threaded insert installation is required.

This tool is suited for repair and fabrication applications that call for 7/8-14 UNF threaded inserts in metal, composite, or other engineered materials. Typical scenarios include restoring stripped threads in castings, building threaded features into soft-metal housings, and production assembly lines where consistent insert installation depth and alignment are required. It works with free-running inserts for standard load-bearing threads and with locking inserts where vibration resistance is needed.

Key Features

• Prewinder Type IV Non-Captive design winds the insert onto the mandrel before installation
• Compatible with both free-running and locking 7/8-14 UNF thread inserts
• Spinner diameter of 1.5 inches provides controlled torque during installation
• Prewinder length of 2.875 inches suits standard depth holes in typical workpieces
• Hand-operated tool for bench use or field repair without power equipment

Compatibility

Designed for use with free-running and locking threaded wire inserts in 7/8-14 UNF thread size. Specific insert series compatibility should be verified against HELI-COIL insert product data before ordering.

Installation Notes

This tool is installed by hand and requires no power source. Before use, confirm the host material has been drilled and tapped to the correct UNF specification for the insert being installed. Follow the insert manufacturer's installation procedure for proper mandrel engagement and break-off tang removal. No special electrical lockout or fluid shutoff is required, but eye protection is recommended when snapping off the installation tang after seating the insert.
