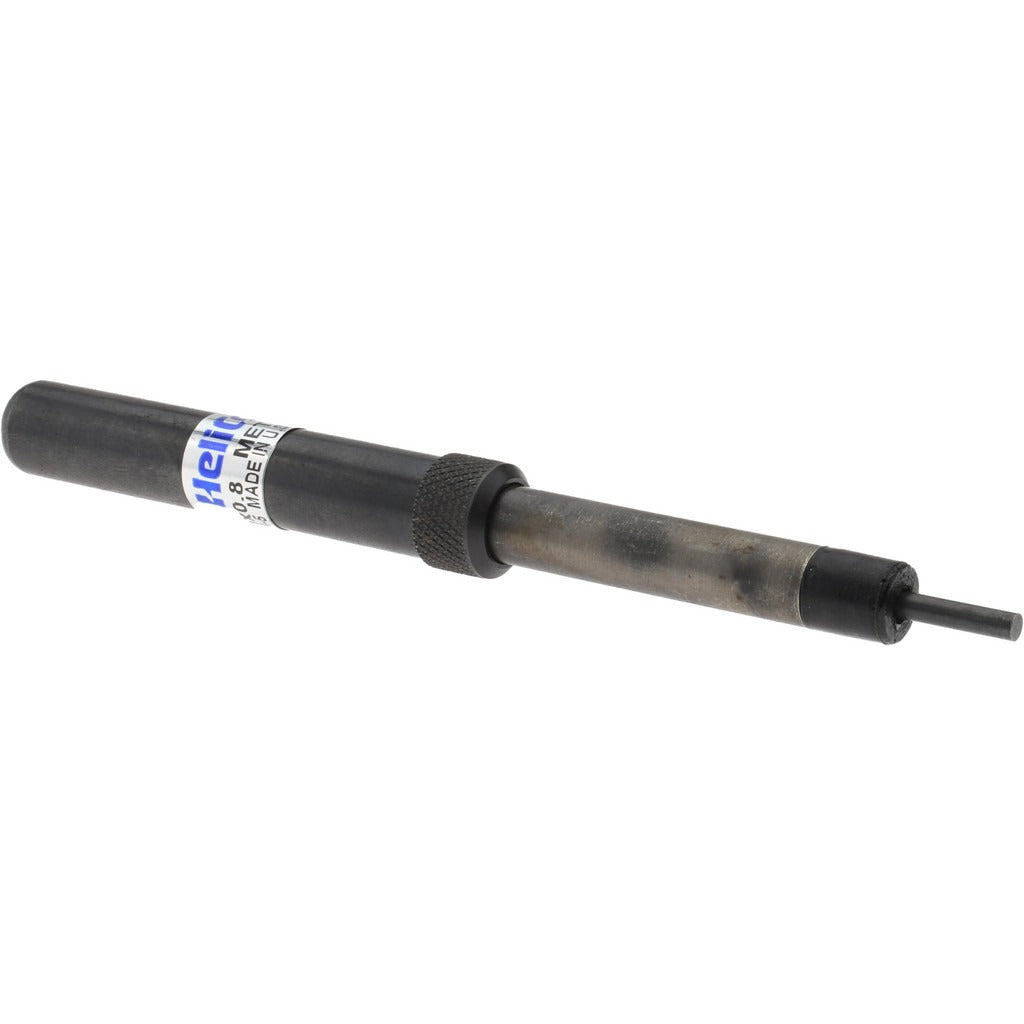

Heli-coil 4238-5 M5 Tang Break Off Tool

Product Description

The HELI-COIL 4238-5 is a tang break off tool designed for use with M5 metric coarse thread inserts. After a wire thread insert is installed, the installation tang must be broken off to complete the repair. This tool applies targeted force at the notch of the tang, snapping it cleanly without damaging the newly installed insert or the parent material. It is a required finish step in any HELI-COIL thread repair procedure on M5 metric coarse threaded holes. Technicians in HVAC, mechanical, and general trade service use this tool when restoring stripped threads in aluminum housings, compressor bodies, and equipment enclosures.

This tool is used wherever M5 metric coarse thread inserts are installed. Common applications include light equipment repair, compressor and motor housing thread restoration, and field service work on metric-fastened assemblies. It is appropriate for both shop bench work and in-field thread repair jobs where a clean tang removal is required to bring the repaired thread back to serviceable condition.

Key Features

• Designed specifically for M5 metric coarse thread inserts
• Breaks the installation tang cleanly at the notch without distorting the insert
• Sized to match M5 insert geometry for precise fit
• Compact tool suitable for bench or field use
• Compatible with standard HELI-COIL M5 metric coarse insert installations

Compatibility

Designed for use with M5 metric coarse thread wire inserts following installation with the corresponding HELI-COIL installation tool.

Installation Notes

Tang break off tools are used by mechanics and technicians after the thread insert has been driven fully into the tapped hole using the proper installation tool. Position the tool over the tang at the bottom of the installed insert and apply a sharp downward strike or turn as appropriate for the tool design to snap the tang free. Retrieve the broken tang from the hole before reassembly. No power tools or heat are required for this step.
