Heli-coil 05CBB Hand Sti Tap 5-40 Unc H1 Bottoming

Product Description

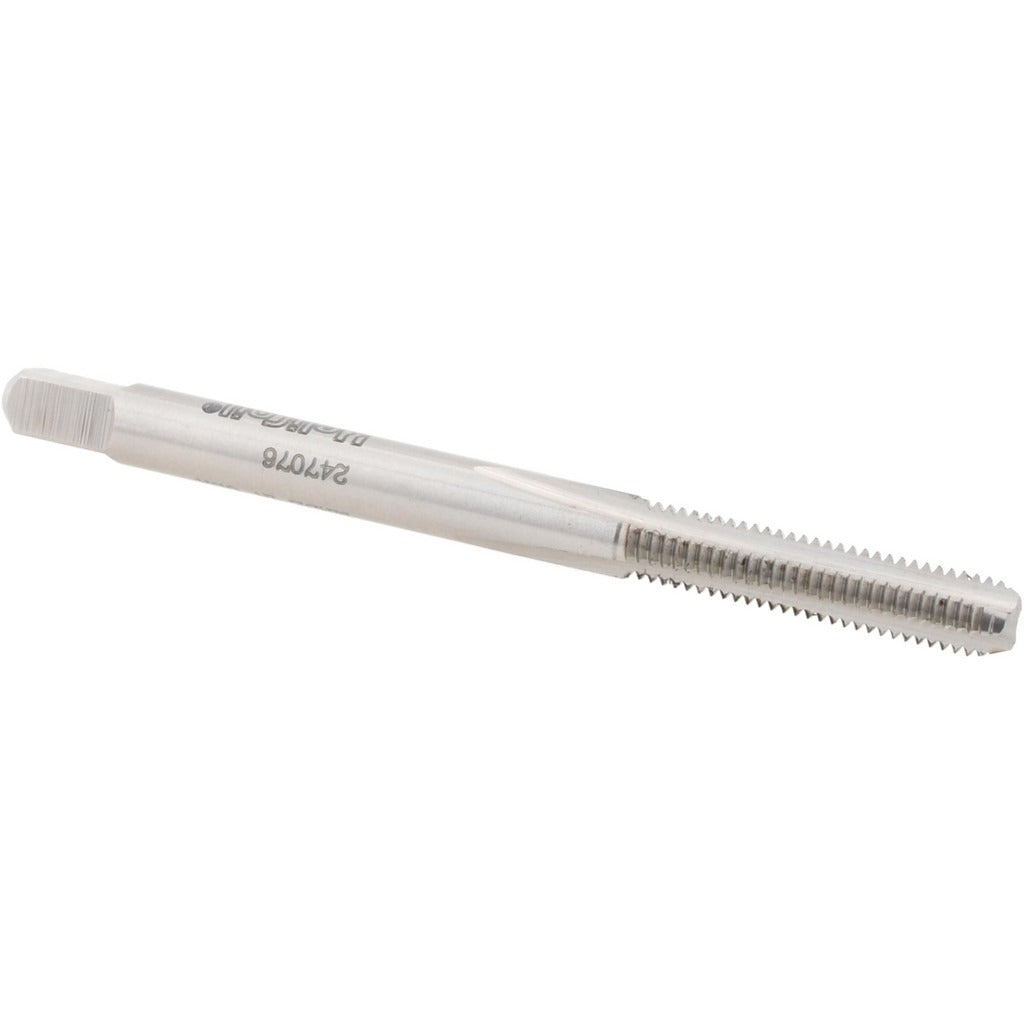

The HELI-COIL 05CBB is a hand STI tap designed to cut threads for Heli-Coil screw thread inserts in 5-40 UNC applications. It features a bottoming chamfer for threading close to the bottom of blind holes, a 3-flute geometry that clears chips efficiently in short-run and hand-tapping operations, and an H1 thread limit for tight tolerance control. The tap is manufactured from high-speed steel with a bright uncoated finish, offering reliable wear resistance for production and repair work. Overall length is 2.125 inches with a 0.75-inch thread length. Licensed machinists, maintenance technicians, and field repair professionals working with threaded inserts are the primary users of this tap.

This tap is used in applications where a stripped or damaged threaded hole is being repaired or where a new STI thread is being cut to accept a Heli-Coil insert. Typical scenarios include aerospace, automotive, industrial machinery, and general metalworking environments where restoring or creating accurate 5-40 UNC threads is required. The bottoming chamfer style makes it especially suited for blind holes where a standard or plug chamfer would leave unthreaded material at the base. Class of fit is 3B, appropriate for standard tolerance threaded connections.

Key Features

• Bottoming chamfer for threading to the base of blind holes
• H1 thread limit for consistent, close-tolerance thread production
• 3-flute design promotes chip evacuation during hand tapping
• High-speed steel construction provides durability across ferrous and non-ferrous materials
• Bright uncoated finish suitable for use with standard cutting fluids
• Class 3B fit for standard precision threaded insert applications

Compatibility

Designed for use with Heli-Coil screw thread insert systems requiring a 5-40 UNC STI tapped hole. Intended for use with the corresponding Heli-Coil insert installation system for that thread size and standard.

Installation Notes
