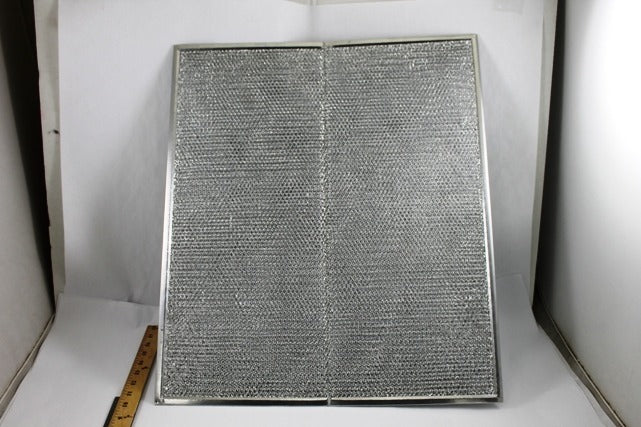

Heil Quaker 505631 Aluminum Mesh Filter 20x23 in

Product Description

The HEIL QUAKER 505631 is an aluminum mesh filter sized at 20 inches x 23 inches, designed for use in residential and light commercial HVAC systems. Aluminum mesh filters provide a reusable, low-resistance media layer that captures larger airborne particles before they reach the heat exchanger, blower wheel, or evaporator coil. This is an OEM replacement part manufactured to original equipment specifications, making it a direct fit for systems that originally shipped with this filter. HVAC technicians and service pros install this filter as part of routine maintenance or equipment servicing.

This filter is intended for installation in HVAC air handlers, furnaces, or fan coil units that accept a 20-inch x 23-inch aluminum mesh filter. Its aluminum construction makes it washable and reusable, which is common in equipment where a permanent or semi-permanent filter media is specified by the OEM. Always verify the filter slot dimensions and OEM part number against the unit nameplate before ordering.

Key Features

• OEM replacement filter manufactured to original equipment specifications
• Aluminum mesh construction — washable and reusable
• Filter size: 20 inches x 23 inches
• Low airflow resistance typical of aluminum mesh media
• Designed for systems originally equipped with this filter

Compatibility

Designed as an OEM-style replacement for HEIL QUAKER HVAC systems originally specified to use a 20-inch x 23-inch aluminum mesh filter. Verify unit nameplate and service manual for filter part number confirmation before installation.

Installation Notes

Installation of this filter should be performed by a qualified HVAC technician following the equipment manufacturer's service procedures. Power down the unit at the disconnect and thermostat before accessing the filter compartment. Ensure the filter is fully seated and airflow direction arrows, if present on the filter frame, are aligned with system airflow. If reusing after washing, allow the filter to dry completely before reinstalling to avoid moisture introduction into the air stream.
