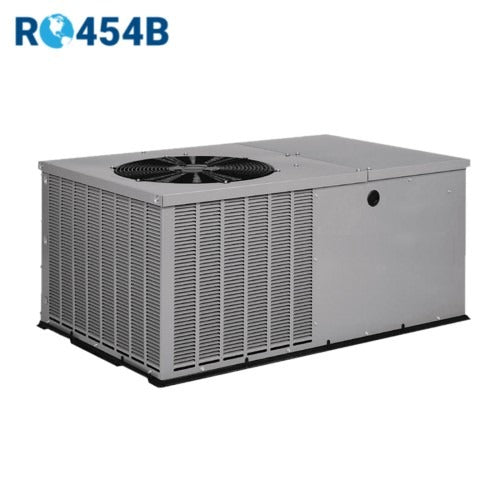

Heil phm436000k000b Packaged Heat Pump 3 Ton Narrow Lot

Product Description

The HEIL phm436000k000b is a packaged heat pump unit from the Performance 14 Series, designed for ground-level installation on narrow lots where space is limited. It delivers 36000 BTU/h of cooling capacity at a 13.4 SEER efficiency rating and a 6.7 HSPF heating performance rating. The unit uses R-454B refrigerant and runs on 208/230 volts, single phase, 60 Hz power. A scroll compressor handles refrigerant compression, while an efficient blower motor moves up to 1200 CFM of conditioned air. A hail guard grille adds mechanical protection to the coil. Licensed HVAC technicians install and service this unit in residential and light-commercial applications.

The phm436000k000b is built for horizontal discharge configurations and mounts at ground level, making it well-suited for narrow residential lots where a standard side-yard or rooftop install is not practical. The single-stage system operates at 1100 RPM with a sound level rated at 73 dB. A 24 x 30 x 1 inch filter keeps airborne particulates out of the system. The pre-painted steel cabinet resists corrosion in outdoor environments. This unit fits residential new-construction and replacement projects where a compact packaged system footprint is required.

Key Features

• 36000 BTU/h nominal cooling output with 13.4 SEER efficiency rating
• 6.7 HSPF heating efficiency for year-round heat pump operation
• R-454B refrigerant — lower global warming potential than legacy refrigerants
• Scroll compressor with 1100 RPM rotational speed and single-stage operation
• Hail guard grille provides added coil protection in exposed outdoor installations
• Pre-painted steel cabinet rated for ground-mount, narrow-lot installations

Compatibility

Designed as an OEM packaged heat pump unit in the HEIL Performance 14 Series (Model PHM4) for ground-level, horizontal-discharge residential installations.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer's installation instructions. Disconnect and lock out all electrical power before servicing any components. R-454B refrigerant handling requires EPA Section 608 certification. Verify that the mounting pad and clearances meet local code requirements before setting the unit.
