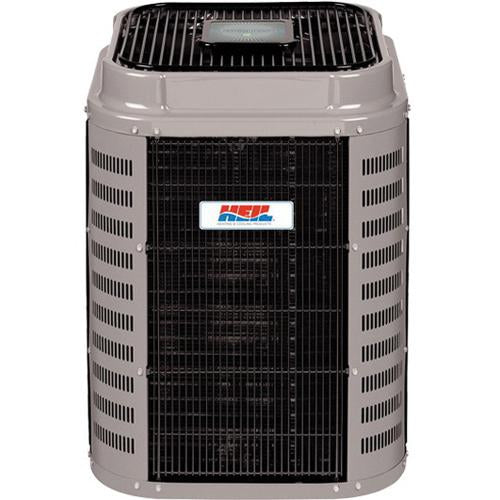

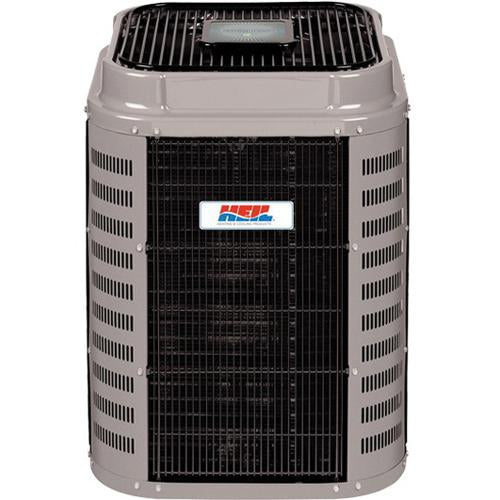

Heil hva936gka 3 Ton 19 Seer Split-system Air Conditioner

Product Description

The HEIL hva936gka is a 3-ton, 5-stage split-system air conditioner from the HVA9 Series, rated at 36,000 BTU/h cooling capacity and 19 SEER. It uses a variable-speed rotary compressor paired with an ECM condenser fan motor to deliver efficient, quiet operation across a wide range of outdoor conditions. The unit runs on 208-230 volts, single phase, 60 Hz and draws 24.2 amps at rated load. Sound output ranges from 57 to 71 dBA depending on compressor stage. The Observer communicating control system integrates with compatible indoor equipment for system-level diagnostics and staged capacity management. Licensed HVAC technicians install and commission this unit.

The hva936gka is designed for residential split-system cooling applications where high-efficiency, variable-capacity operation is required. The communicating Observer control architecture allows the outdoor unit to coordinate staging and fault reporting with a compatible indoor air handler or furnace coil. The unit connects via sweat fittings to a 3/8-inch liquid line and a 7/8-inch suction line. Its steel cabinet with baked-on powder-coated and galvanized finish is rated for typical residential rooftop-adjacent or ground-level pad installations. R-410A refrigerant is factory charged; field refrigerant work requires EPA Section 608 certification.

Key Features

• 19 SEER and 13 EER ratings for high-efficiency cooling performance
• 5-stage variable-speed rotary compressor for precise capacity modulation
• ECM condenser fan motor at 1050 rpm, 1/3 hp, moving 2500 CFM
• Observer communicating control system for integrated diagnostics and staging
• Sweat connection type with 3/8-inch liquid line and 7/8-inch suction line
• Steel cabinet with baked-on powder-coated and galvanized finish in gray
• Low-sound operation from 57 to 71 dBA across compressor stages

Compatibility

Designed for use with HEIL HVA9 Series communicating split-system installations requiring a compatible Observer-system indoor unit. Specific compatible indoor equipment should be confirmed against HEIL engineering data and ARI-matched system tables before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer's installation instructions. Disconnect and lock out all electrical power before making any electrical or refrigerant connections. R-410A refrigerant handling requires EPA Section 608 certification; do not mix refrigerant types or use unapproved refrigerant. Confirm Observer communicating wiring compatibility with the indoor unit before startup and follow the manufacturer's commissioning sequence for the multi-stage control system.

Technical Specifications

• Nominal Capacity: 3 ton
• Cooling Capacity: 36,000 BTU/h
• SEER Rating: 19
• EER Rating: 13
• Number of Stages: 5
• Voltage Rating: 208-230 volts
• Amperage Rating: 24.2 amps
• Fuse Rating: 40 amps
• Phase: 1 ph
• Frequency Rating: 60 Hz
• Compressor Type: Variable Speed Rotary
• Motor Type: ECM
• HP Rating: 1/3 hp
• Rotational Speed: 1050 rpm
• CFM Rating: 2500 CFM
• Refrigerant Type: R-410A
• Connection Type: Sweat
• Liquid Line Size: 3/8 inches
• Suction Line Size: 7/8 inches
• Sound Level: 57 to 71 dBA
• Face Area: 13.9 sq ft
• Fins per Inch: 20 FPI
• Dimensions: 23.125 inches L x 23.125 inches W x 38.5 inches H
• Material: Steel
• Finish: Baked-On Powder-Coated/Galvanized
• Color: Gray
• Drive Type: Direct
• Series: HVA9 Series

Standard Information

• Brand: HEIL
• Manufacturer Part Number: hva936gka
