Heil evm5x60m24a Cased V-type Evaporator Coil 5 Ton

Product Description

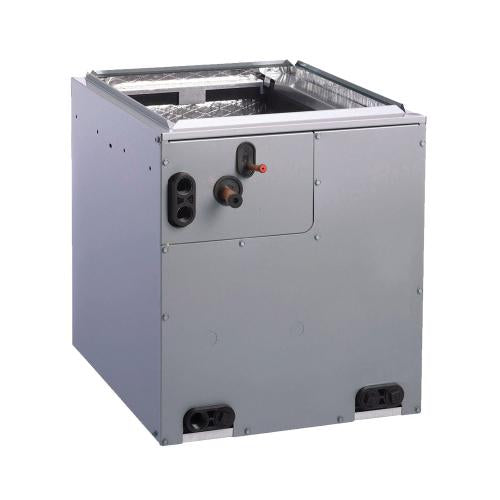

The HEIL evm5x60m24a is a cased V-type evaporator coil rated at 5 tons and 60,000 BTU/h, designed for split-system residential and light-commercial HVAC applications. It uses Power-V technology, a V-shape coil geometry that increases surface area for improved heat transfer efficiency. The coil is constructed with aluminum fins over a steel cabinet with a galvanized finish, offering corrosion resistance and durability. Refrigerant type is R-454B, an A2L low-GWP refrigerant increasingly specified in modern residential systems. Licensed HVAC technicians install and commission this coil as part of a matched split system.

The evm5x60m24a is built for multipoise installation, meaning a single coil supports upflow, downflow, horizontal, and vertical configurations. This flexibility makes it well suited for a wide range of residential and light-commercial duct system layouts where the air handler orientation may vary by installation site. The cased design simplifies field installation by arriving factory-assembled and ready to connect. Systems using R-454B refrigerant require equipment and service practices appropriate for A2L refrigerants, including technicians trained and certified for that refrigerant class.

Key Features

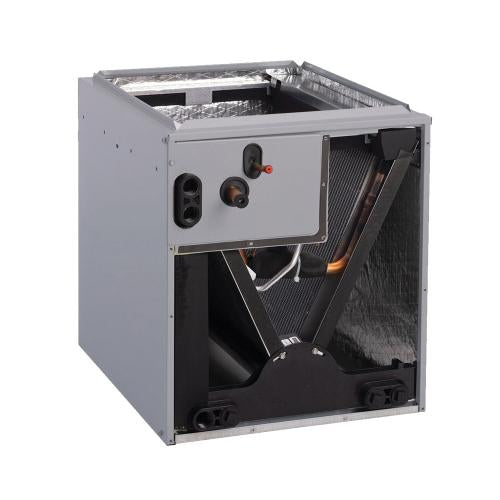

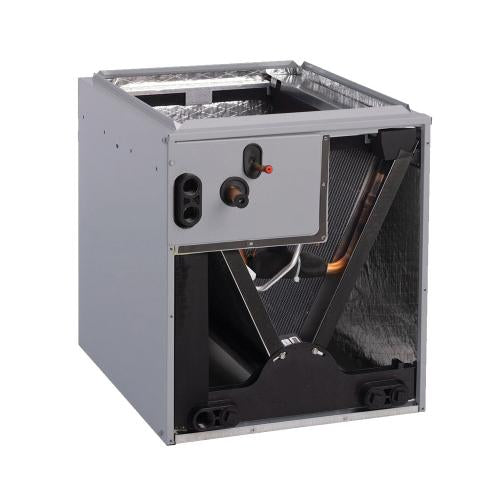

• Power-V technology V-shape coil design increases effective coil surface area for improved heat transfer
• Multipoise configuration supports upflow, downflow, horizontal, and vertical installations
• All-aluminum coil construction provides corrosion resistance and reduces overall coil weight
• Galvanized steel cabinet finish adds additional corrosion protection to the cased assembly
• Rated for R-454B refrigerant, compatible with current low-GWP system designs
• Factory-cased assembly reduces field fabrication time during installation

Compatibility

Designed as an OEM-style replacement or new-installation evaporator coil for residential and light-commercial split HVAC systems using R-454B refrigerant at 5-ton capacity.

Installation Notes

Installation must be performed by an EPA Section 608-certified HVAC technician with appropriate certification for A2L refrigerants. Shut down and lock out the air handler and disconnect all power before connecting or disconnecting the coil. Follow the equipment manufacturer installation instructions for refrigerant line sizing, drain pan connection, and cabinet sealing. Refer to local mechanical codes and ASHRAE 15 requirements when working with A2L refrigerants in confined spaces.

Technical Specifications

• Capacity: 60,000 BTU/h (5 ton)
• Coil Type: Cased V-Type
• Configuration: Upflow, Downflow, Horizontal, Vertical
• Refrigerant Type: R-454B
• Material: Aluminum coil, Steel cabinet
• Finish: Galvanized
• Model Series: EVM5X

Standard Information

• Brand: HEIL
• Manufacturer Part Number: evm5x60m24a
