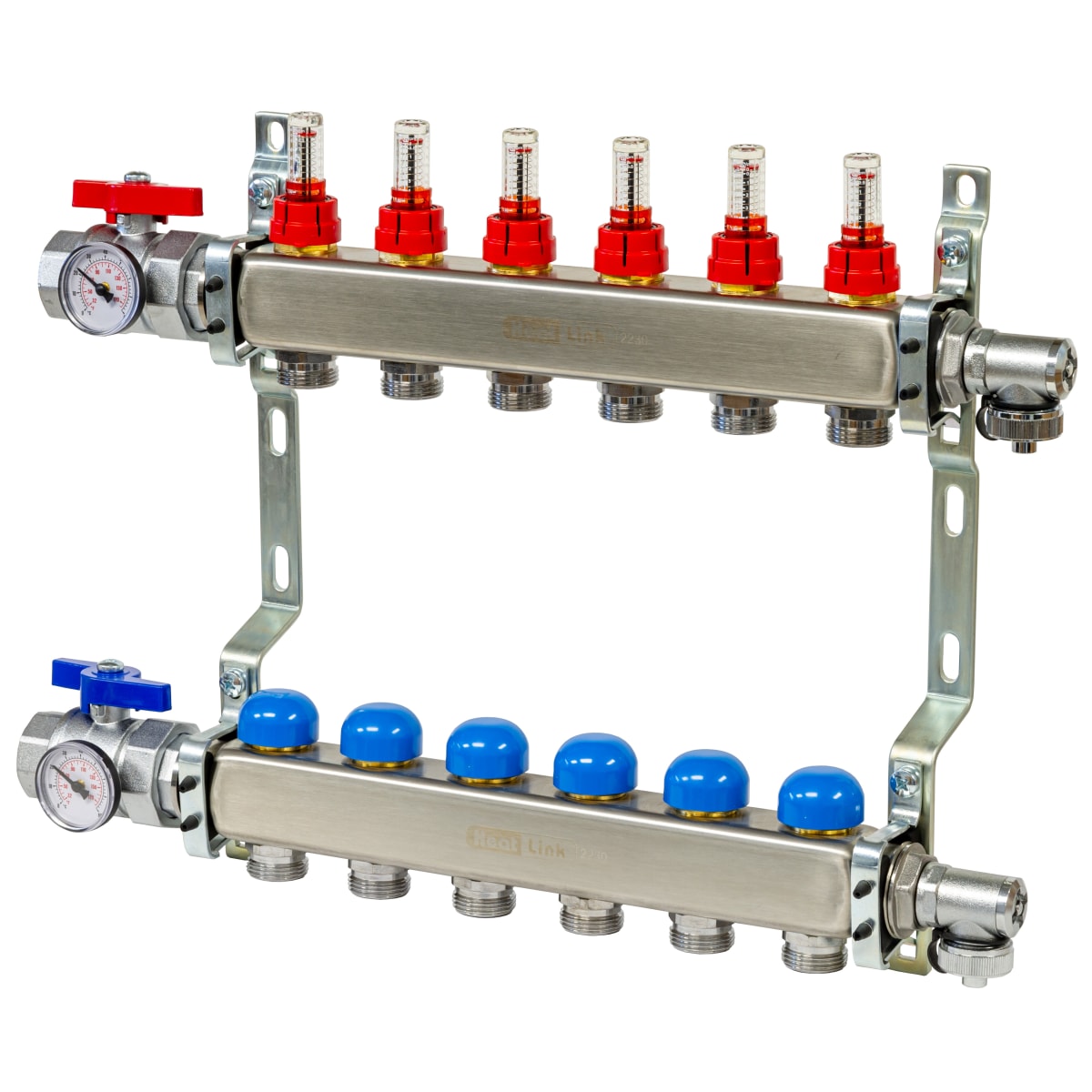

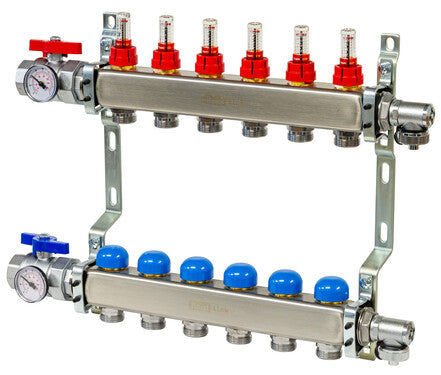

Heatlink 75106 6 Loop 1-1/4 inches SS Manifold with Flow Meters

Product Description

The HEATLINK 75106 is a 6-loop 1-1/4" stainless steel manifold designed for precise flow control in heating systems. It features a supply manifold with a 1" FNPT isolation valve, thermometer, and hose bib/air vent. A lockable 0-2 US gpm visual flow meter allows fine-tune balancing of each loop. The return manifold includes a 1" FNPT isolation valve, thermometer, and hose bib/air vent, with a valve for manual on/off control and optional actuator compatibility.

• 2 US gpm flow meters for precise balancing
• 1" FNPT supply and return isolation valves
• Supply and return hose bibs for convenience

Product Highlights

This stainless steel manifold provides precise flow balancing and individual loop control for hydronic systems.

Product Information

Standard Information

• Brand: HEATLINK
• Manufacturer Part Number: 75106
• Country of Origin: ITALY

Technical Specifications

• Type: Manifolds
• Material: Stainless Steel
• Size: 1-1/4"
• Number of Branches: 6
• Circuit Spacing: 8.1 in
• Connection Type: FNPT
• Flow Rate: 2 gpm
• Material Standard: ASTM/AISI304 EN10088 1.4306, ASTM B124 C37700, CW614N, CW617N
• Measuring Range: 32 to 175 deg F
• Mounting Type: Bracket
• Outlet Center Distance: 1.97 in
• Pressure Rating: 87 psi
• Temperature Rating: 32 to 160 deg F
• Included Components: (2) Metal Mounting Brackets
