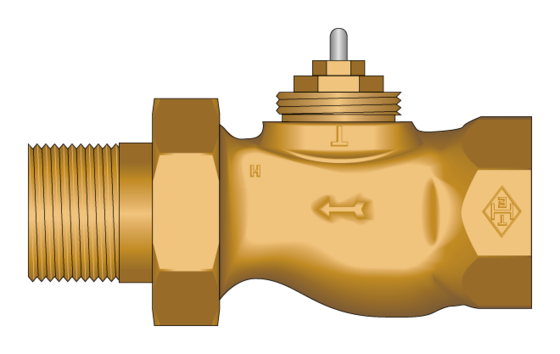

Heatlink 62025V straight zone valve 1 inches NPT

Product Description

The Heatlink 62025V is a straight hydronic zone valve designed for precise flow control in heating systems. It provides on/off or modulated flow control, suitable for applications such as baseboard heating, fan coils, manifolds, and injection controls. This 1-inch nominal valve features an MNPT x FNPT end style, a bronze body with nickel plating, and is rated for 10 bar pressure. It operates effectively with water temperatures from 14 to 248 deg F and has a Cv coefficient of volume of 4.1.

• Provides on/off or modulated flow control for diverse heating applications.
• Suitable for baseboard, fan coils, manifolds, and injection controls.
• Features a bronze body with nickel plating and a 10 bar pressure rating.

Product Highlights

Straight hydronic zone valve with 1-inch NPT connection, offering precise flow control for diverse heating systems.

Product Information

Standard Information

• Brand: HEATLINK
• Manufacturer Part Number: 62025V
• Country of Origin: GERMANY

Technical Specifications

• MPN: 62025V
• Cv Coefficient of Volume: 4.1
• Kv: 3.5
• Valve Body Style: Straight
• Nominal Size: 1 in.
• Product Type: Hydronic Zone Valves
• Brand: Heatlink
• Connection Type: MNPT x FNPT
• Material: Bronze
• Series: 62000
• Pressure Rating: 10 bar
• Operating Temperature: 14 to 248 deg F
• Finish: Nickel plated
