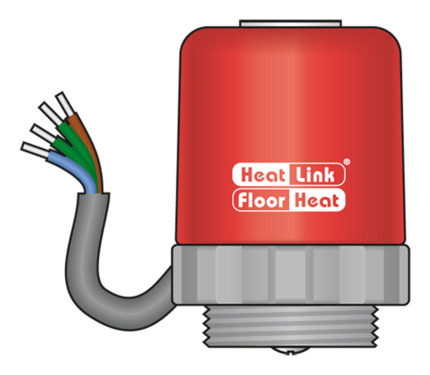

Heatlink 56232 Multi-Port Manifold Zone Drive Actuator With End Switch 24V AC 1-1/2 in L x 2-3/16 in D

Product Description

The HeatLink 56232 is a normally closed actuator designed for additional room temperature control. This 24 V AC actuator, with a power consumption of 2 VA, measures 1-1/2 inches in length and 2-3/16 inches in diameter. It is suitable for use with TwistSeal Multiport Manifolds, such as models 78302 or 78203, and includes an end switch for pump and boiler switching. Operating within a temperature range of 23 to 138 degrees F, it enhances zone control in heating systems.

• Allows for additional room temperature control in conjunction with a room thermostat
• Mounts on TwistSeal Multiport Manifold (78302 or 78203)
• Comes complete with end switch to allow pump and/or boiler switching

Product Highlights

Normally closed actuator with end switch for enhanced room temperature control and pump/boiler switching, compatible with TwistSeal Multiport Manifolds.

Product Information

Standard Information

• Brand: HEATLINK
• Manufacturer Part Number: 56232
• Country of Origin: Germany

Technical Specifications

• Manufacturer Part Number: 56232
• SKU: 1027769
• Brand: HeatLink
• Country of Origin: Germany
• Domestic/Import: Import
• Electrical Connections: 1 m Cable
• Power Consumption: 2 VA
• Power Supply: 24 V AC
• Series: 56230
• Suitable For: TwistSeal Multiport Manifold
• Temperature Rating: 23 to 138 deg F
• Type: Normally Closed
