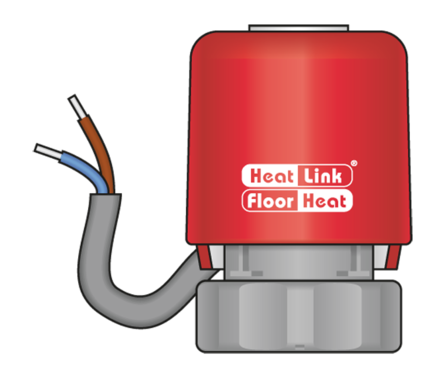

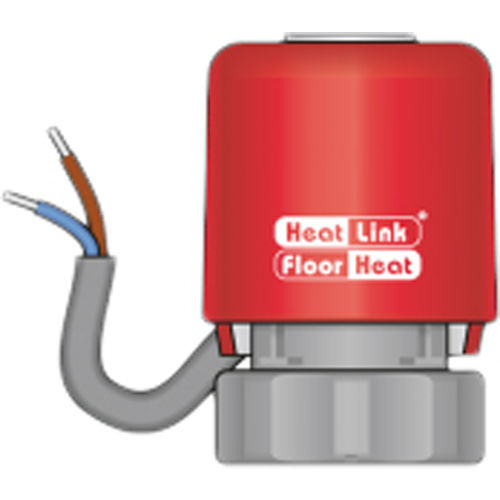

Heatlink 56201 Valve & SS Manifold Actuator with LED 24 Vac 50/60 Hz 2 VA

Product Description

The HEATLINK 56201 Valve & SS Manifold Actuator with LED provides precise room temperature control for hydronic heating systems. Operating at 24 VAC with a 50/60 Hz frequency and 2 VA power consumption, this normally closed, multi-port actuator is compatible with HeatLink 62000 & 63000 series zone valves and 76100 & 76200 series Stainless Steel Manifolds. It features an IP40 protection rating and an output torque of 90 N, ensuring reliable operation.

• Enables additional room temperature control when integrated with a room thermostat.
• Designed for mounting on HeatLink 62000 & 63000 series zone valves or 76100 & 76200 series Stainless Steel Manifolds.
• Includes a heat demand LED indicator for clear operational status feedback.

Product Highlights

Provides precise temperature control for hydronic systems, featuring a normally closed, multi-port design and an integrated LED indicator.

Product Information

Standard Information

• Brand: HEATLINK
• Manufacturer Part Number: 56201
• Country of Origin: United States

Technical Specifications

• Input Voltage: 24 VAC
• Frequency: 50/60 Hz
• Power Consumption: 2 VA
• Type: Normally Closed, Multi-Port
• Series: TwistSeal™
• Output Torque: 90 N
• Operating Temperature: 23 - 138 deg F
• Compatible With: HeatLink 62000 & 63000 series zone valves, 76100 & 76200 series Stainless Steel Manifold
• IP Rating: IP40
• Cable Length: 1 m
• Max Current: 230 mA
• Certifications: CE Listed
