HEATLINK 46645 Heatlink Wired Digital Timer Thermostat Power 24 VAC Replacement MPN

Product Description

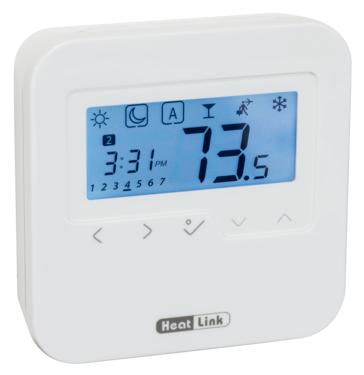

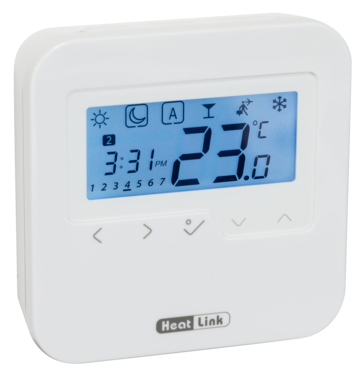

The Heatlink 46645 is a wired digital timer thermostat suitable for radiant floor heating systems. It runs on 24 VAC and features a clear digital display. Users can select between Sun, Moon, and Automatic switch positions. The thermostat is programmable for time and heat schedules, making it effective for controlling temperature settings. It accommodates one heating and one cooling stage and employs Triac technology with pulse width modulation (PWM) for smooth and quiet operation. An optional external sensor can enhance its functionality.

• Designed for radiant floor heating applications.
• Programmable timer and digital display for easy operation.
• Supports one heat and one cool stage for versatile use.

Product Highlights

This thermostat is ideal for homeowners seeking efficient temperature control for radiant floor heating systems.

Product Information

Standard Information

• Mounting Type: Wall
• Country of Origin: China

Technical Specifications

• Color: Pure White
• Dimensions: 3.34 inches H x 3.34 inches W x 0.98 inches D
• Display Type: Digital
• Frequency Rating: 50/60 Hz
• Material: Polycarbonate
• Power Rating: 18 W
• Stages: 1 Heat/1 Cool
• Switch Position: Sun-Moon-Automatic
• Temperature Rating: 41 to 95 degrees F
• Input Voltage: 24 VAC
• Control Range: 41 to 95 degrees F
• Terminal Designations: CO, R, Clock, W, C, (2) NTC
• System Switching: Heat-Cool
• Sensor Type: 10 kilo ohm NTC
• Display: LCD
• Enclosure Type: IP30
• Weight: 0.3 lbs
