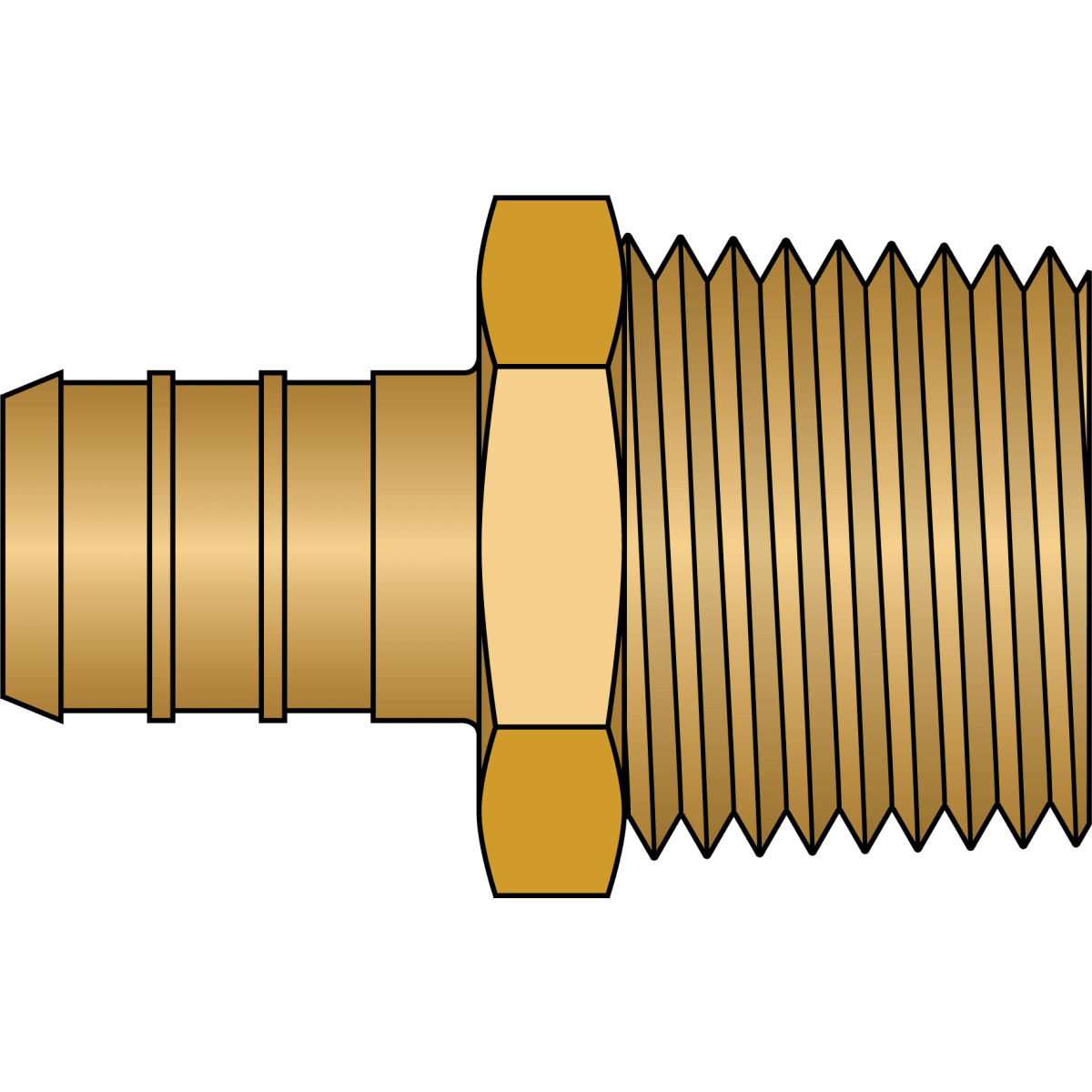

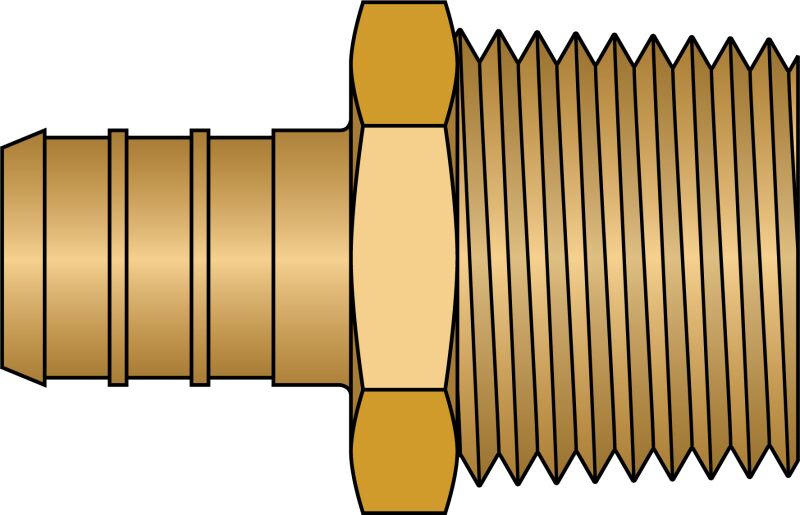

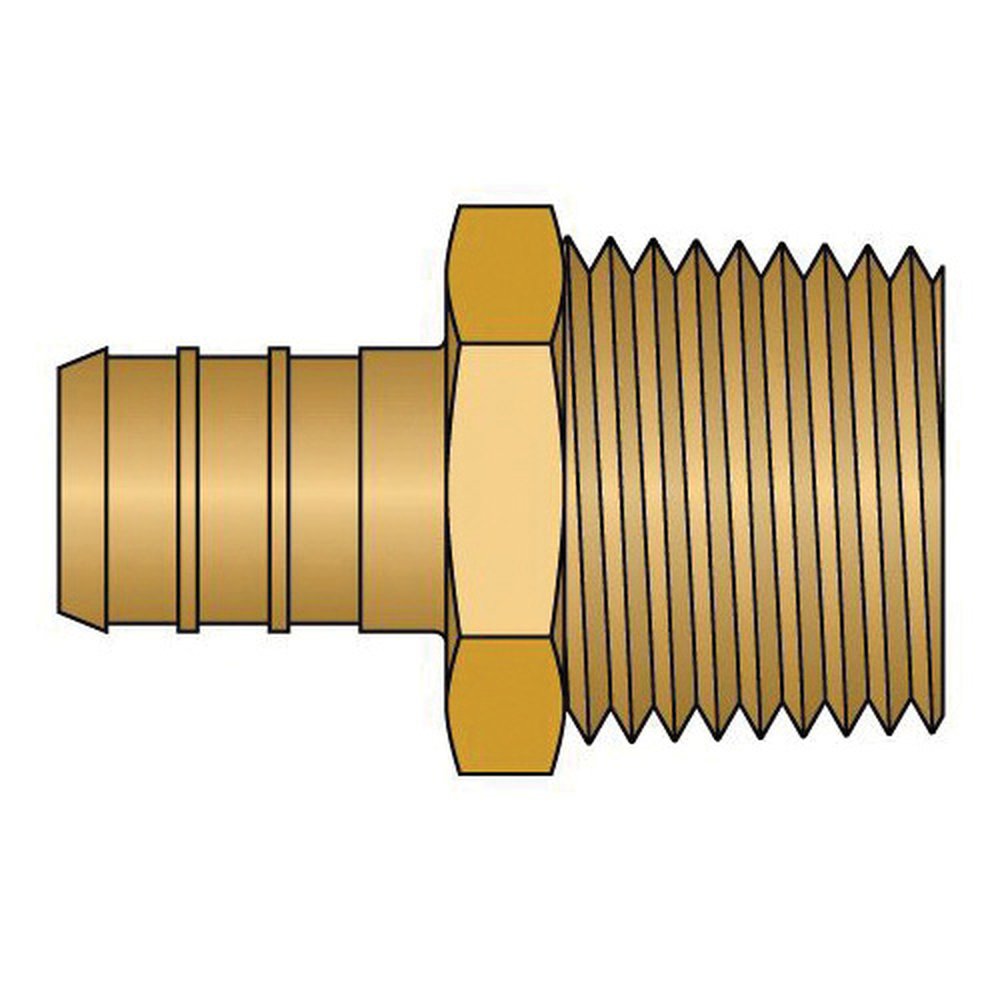

Heatlink 27505NL 1/2 inch x 1/2 inch PEX Male Pipe Thread No Lead Brass Adapter

Product Description

The HEATLINK 27505NL is a solid brass no lead adapter with a 1/2 inch PEX insert x 1/2 inch MNPT end style, designed for plumbing applications. This adapter is constructed from C69300-ecobrass, ensuring superior dezincification and stress corrosion cracking resistance. It features a 1.59 inch length and can withstand a pressure of 100 psi at 180 degrees F.

• ASTM F1807 compliant PEX insert fitting
• No lead brass (C69300-ecobrass)
• Superior dezincification resistance

Product Highlights

Solid no-lead brass adapter for PEX and MNPT connections, ensuring durability and compliance.

Product Information

Standard Information

• Brand: HEATLINK
• Manufacturer Part Number: 27505NL

Technical Specifications

• Size: 1/2" x 1/2"
• Type: Adapter (Male)
• End Style: PEX Insert F1807 x MNPT
• Material: Brass
• Pressure Rating: 100 psi
• Series: 27500NL
• Standards/Approvals: ASTM F877|cNSFus-pw|CSA B137.5|IAPMO Listed|NSF/ANSI 14/61/372|UNS C69300 Eco Body|UPC Listed
• Temperature Rating: 180 deg F
