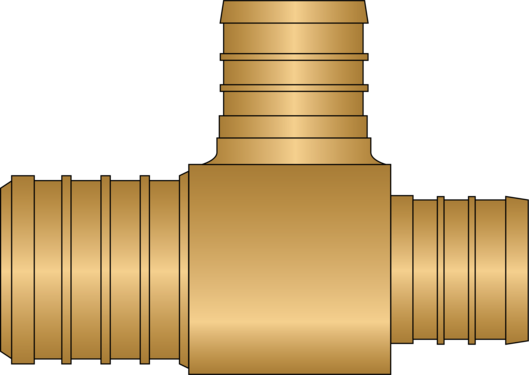

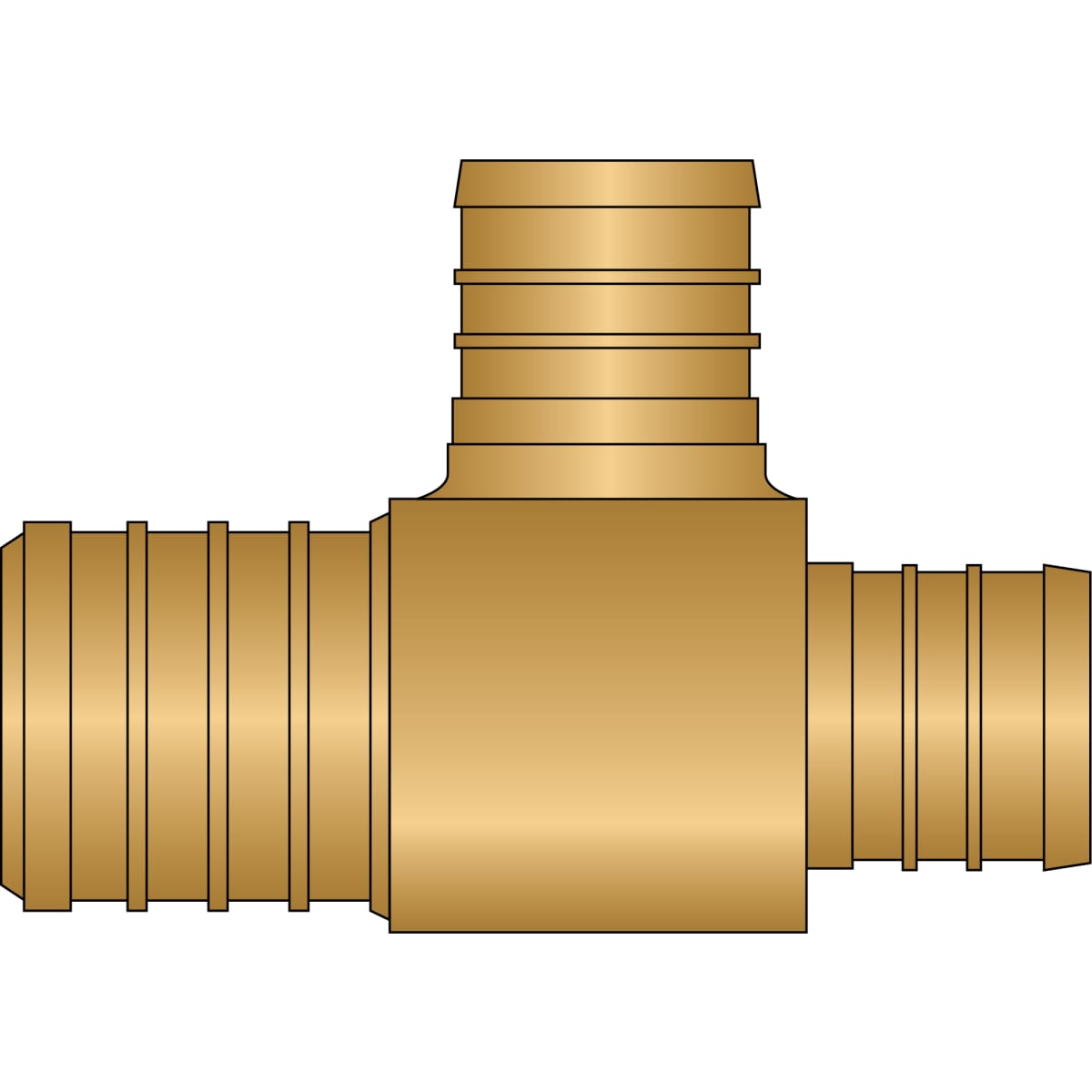

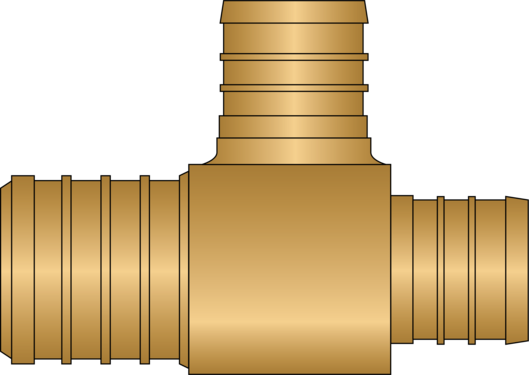

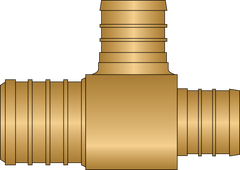

Heatlink 26822NL 1 inches x 3/4 inches x 3/4 inches PEX No Lead Brass Tee

Product Description

The HEATLINK 26822NL is a 1" x 3/4" x 3/4" PEX insert reducing tee, constructed from solid no lead brass (C69300-ecobrass). This fitting is designed for PEX plumbing systems, offering superior dezincification and stress corrosion cracking resistance. It is ASTM F1807 compliant and suitable for various plumbing applications, with SS press sleeves sold separately.

• ASTM F1807 compliant PEX insert fitting
• Constructed from no lead brass (C69300-ecobrass)
• Offers superior dezincification and stress corrosion cracking resistance

Product Highlights

Constructed from C69300-ecobrass, this PEX tee ensures durability and compliance with plumbing standards, supporting systems up to 180 °F and 100 psi.

Product Information

Standard Information

• Brand: HEATLINK
• Manufacturer Part Number: 26822NL

Technical Specifications

• Size: 1" x 3/4" x 3/4"
• Type: Tee (Reducing)
• MPN: 26822NL
• Length: 1.16 in (29.5 mm)
• Length L1: 1.34 in (34 mm)
• Height: 1.16 in (29.5 mm)
• Weight: 0.172 lb (0.078 kg)
• Material: No Lead (Eco) Brass - C69300
• Operating Temperature Max: 180 °F (82.2 °C)
• Operating Pressure Max: 100 psi (6.9 bar)
• Listings: cNSFus-pw
• Codes: IAPMO UPC
• Standards: ASTM F877, ASTM F1807, CSA B137.5, NSF/ANSI 14, NSF/ANSI 61, NSF/ANSI 372
• Dimensions A: 0.81 in (20.5 mm)
• Dimensions B: 0.53 in (13.5 mm)
• Dimensions C: 0.53 in (13.5 mm)
• Dimensions D: 0.63 in (16.0 mm)
• Dimensions E: 0.47 in (12.0 mm)
• Dimensions F: 0.53 in (13.5 mm)
• Dimensions G: 0.63 in (16.0 mm)
• Dimensions ID1: 0.71 in (18.0 mm)
• Dimensions ID2: 0.53 in (13.5 mm)
• Dimensions ID3: 0.53 in (13.5 mm)
