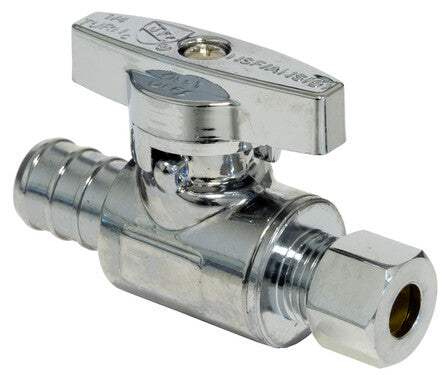

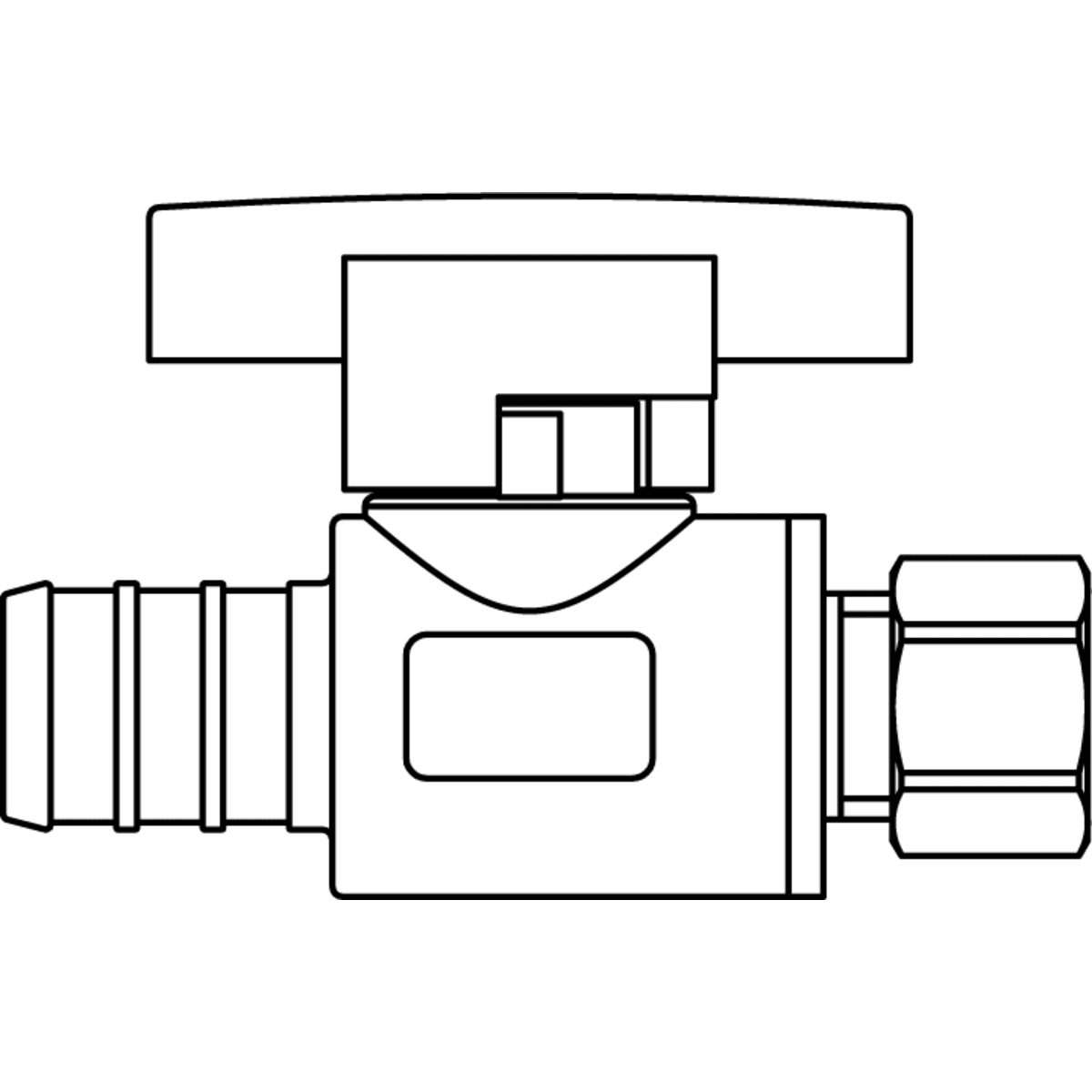

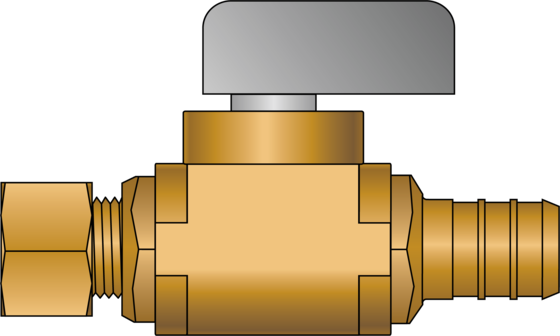

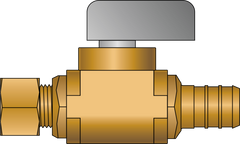

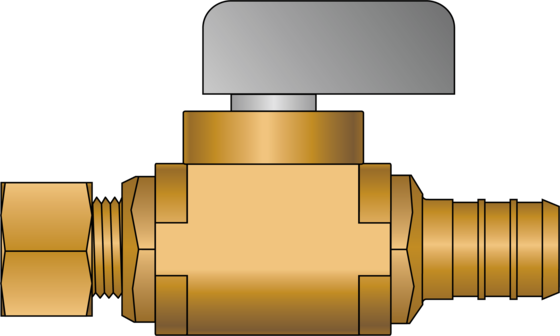

Heatlink 23905NLB 1/2 inches PEX × 1/4 inches O.D. No Lead Straight Ball Valve

Product Description

The HEATLINK 23905NLB is a no lead brass (C69300-ecobrass) straight ball valve designed for plumbing applications. This 1/2" PEX × 1/4" O.D. compression valve features a quarter-turn shut-off for efficient flow control. It is ASTM F1807 compliant, ensuring reliable performance in PEX insert fitting systems. Ideal for residential and commercial water systems requiring lead-free components, this valve offers superior dezincification resistance and a durable plated finish. It operates up to 100 psi and 180 deg F.

• ASTM F1807 compliant PEX insert fitting
• No lead brass (C69300-ecobrass) construction
• Superior dezincification resistance

Product Highlights

Quarter turn shut-off for quick and reliable flow control in lead-free plumbing systems.

Product Information

Standard Information

• Brand: HEATLINK
• Manufacturer Part Number: 23905NLB

Technical Specifications

• Connection Size: 1/2" PEX x 1/4" O.D.
• Type: Valve
• Material: No lead brass (C69300-ecobrass)
• Compliance: ASTM F1807 compliant
• Pressure Rating: 100 psi
• Ball Material: Brass
• Temperature Rating: 180 deg F
• Finish: Plated
