Heatlink 23722NL 3/4 PEX Straight No Lead Brass Ball Valve

Product Description

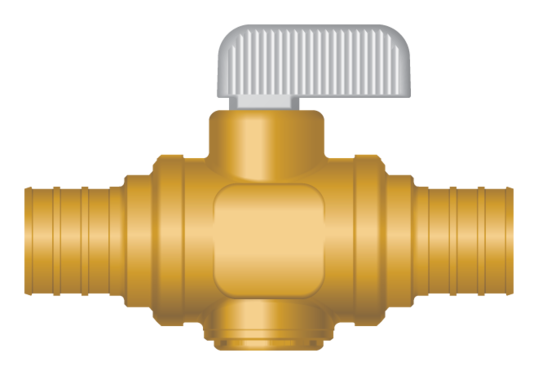

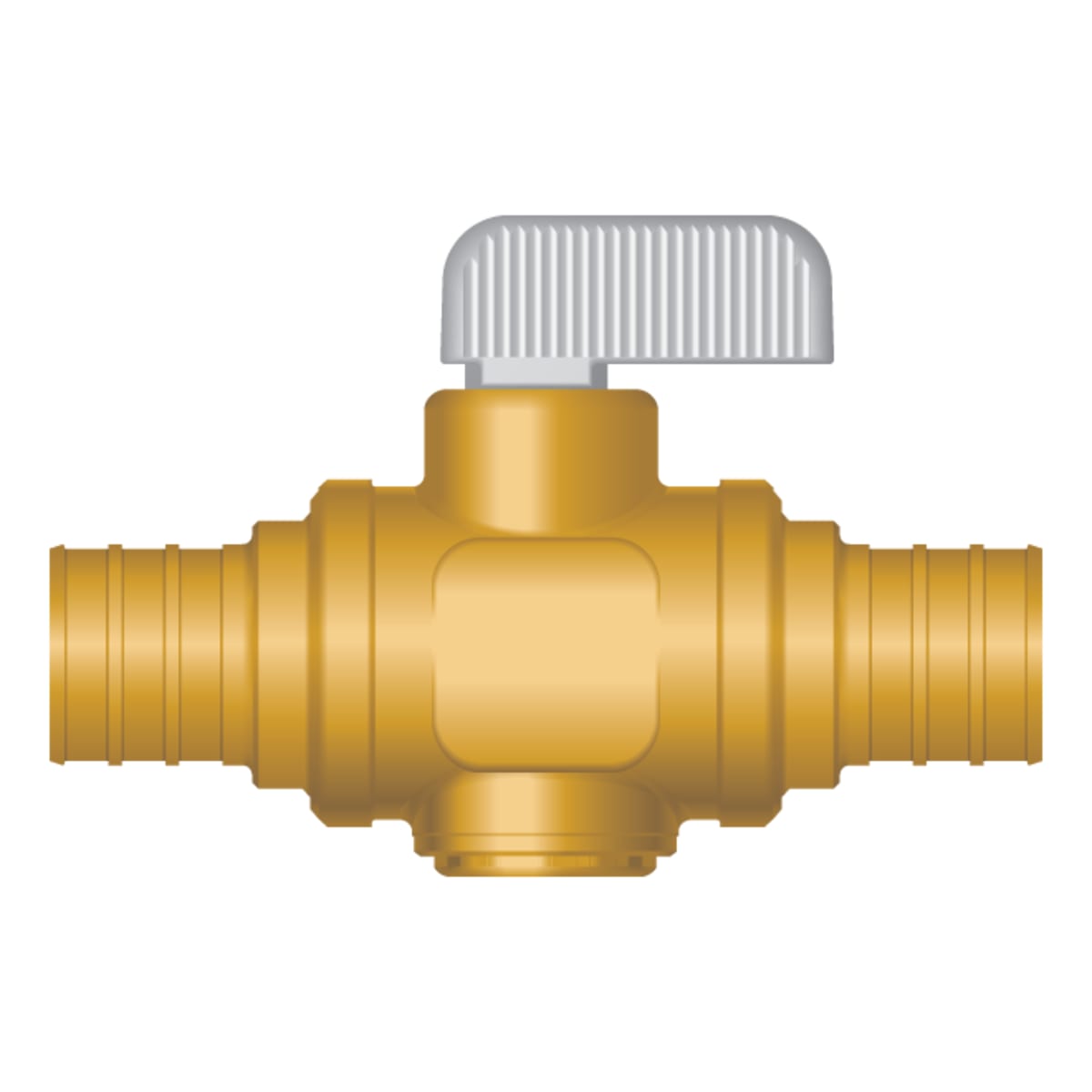

The HEATLINK 23722NL is a 3/4 inch PEX straight ball valve, constructed from no lead brass (C69300-ecobrass) with 3/4 inch PEX insert connections. This lead-free valve is rated for 100 psi and 180 deg F, making it suitable for various plumbing and water system applications. It features a 2.9 inch Inlet to Outlet Length and 1.3 inch Top to Inlet Center, ensuring precise fitment in PEX piping installations.

• ASTM F1807 compliant PEX insert fitting
• No lead brass (C69300-ecobrass) construction
• Superior dezincification resistance

Product Highlights

Durable no lead brass ball valve for PEX plumbing systems, offering reliable quarter-turn shut-off.

Product Information

Standard Information

• Brand: HEATLINK
• Manufacturer Part Number: 23722NL
• Country of Origin: Canada

Technical Specifications

• MPN: 23722NL
• Nominal Size: 3/4 in
• Type: Straight Ball Valve
• Body Material: Brass
• Body Material Composition: UNS C69300 Eco Brass
• End Style: PEX
• Pressure Rating: 100 psi
• Temperature Rating: 180 deg F
• Operator Type: Lever Handle
• Certifications: ANSI/NSF 61, ANSI/NSF 372, ASME A112.18.1/CSA B125.1, ASTM F1807, ASTM F877, CSA Certified, IAPMO Listed, UPC Listed
