Heatlink 23705NL 1/2 PEX Straight No Lead Brass Ball Valve

Product Description

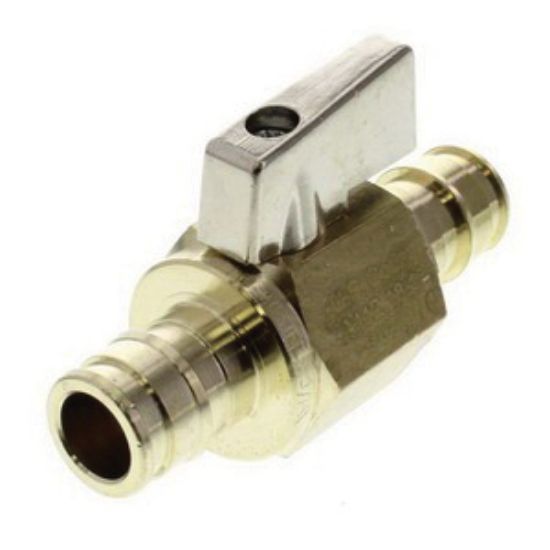

The HEATLINK 23705NL is a 1/2 inch PEX straight ball valve, manufactured from no-lead brass (C69300-ecobrass). This valve features 1/2 inch PEX insert connections, designed for plumbing applications requiring reliable flow control. It is rated for 100 psi and 180 degrees F, ensuring durable performance. The valve provides a quarter-turn shut-off mechanism.

• ASTM F1807 compliant PEX insert fitting
• Constructed from no lead brass (C69300-ecobrass)
• Features superior dezincification resistance

Product Highlights

Durable no-lead brass ball valve with PEX insert connections for reliable flow control.

Product Information

Standard Information

• Brand: HEATLINK
• Manufacturer Part Number: 23705NL
• Country of Origin: Canada

Technical Specifications

• Size: 1/2"
• Valve Type: Ball Valve
• Body Material: No lead brass (C69300-ecobrass)
• End Connection: PEX Insert
• Pressure Rating: 100 psi
• Temperature Rating: 180 deg F
• Series: 23700NL
• Inlet to Outlet Length: 2.8 in
• Top to Inlet Center: 1.2 in
• Operator Type: Lever Handle
• Configuration: Straight
• Origin: Import
