Heatlink 23505NL 1/2 inches PEX x 3/8 inches O.D. No Lead Brass Plated Straight Ball Valve

Product Description

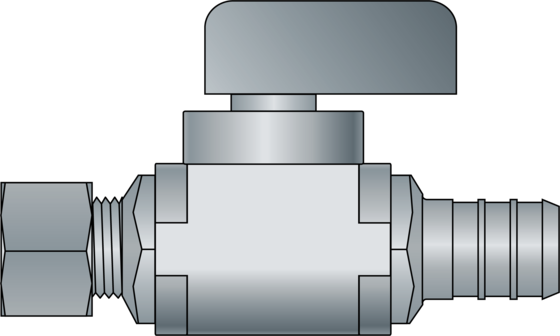

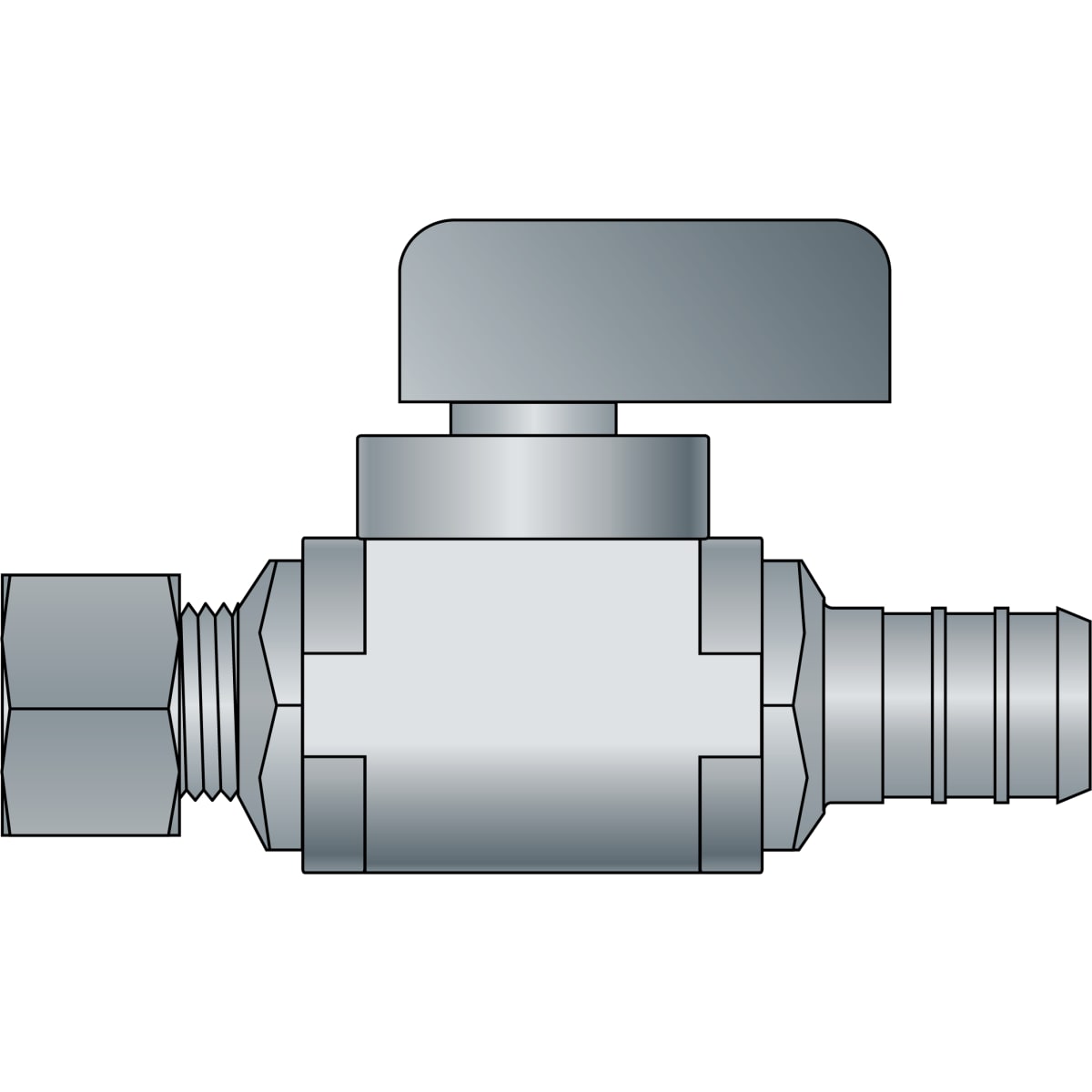

The HEATLINK 23505NL is a 1/2 inch PEX insert x 3/8 inch O.D. compression, nickel plated straight ball valve constructed from no lead brass (C69300-ecobrass). This valve is designed for plumbing applications requiring superior dezincification resistance and a quarter-turn shut-off mechanism. It is an ASTM F1807 compliant PEX insert fitting, ensuring reliable performance in water systems.

• ASTM F1807 compliant PEX insert fitting
• No lead brass (C69300-ecobrass)
• Superior dezincification resistance

Product Highlights

No lead brass straight ball valve with PEX insert and quarter-turn shut-off for plumbing systems.

Product Information

Standard Information

• Brand: HEATLINK
• Manufacturer Part Number: 23505NL
• Country of Origin: Canada

Technical Specifications

• Nominal Size: 1/2 inch x 3/8 inch
• Product Type: Ball Valve
• Body Material: No lead brass (C69300-ecobrass)
• Connection Type: 1/2 inch PEX insert x 3/8 inch O.D. compression
• Finish: Nickel plated
• Valve Type: Straight ball valve
• Operator Type: Lever Handle
• Pressure Rating: 100 psi
• Temperature Rating: 180 deg F
