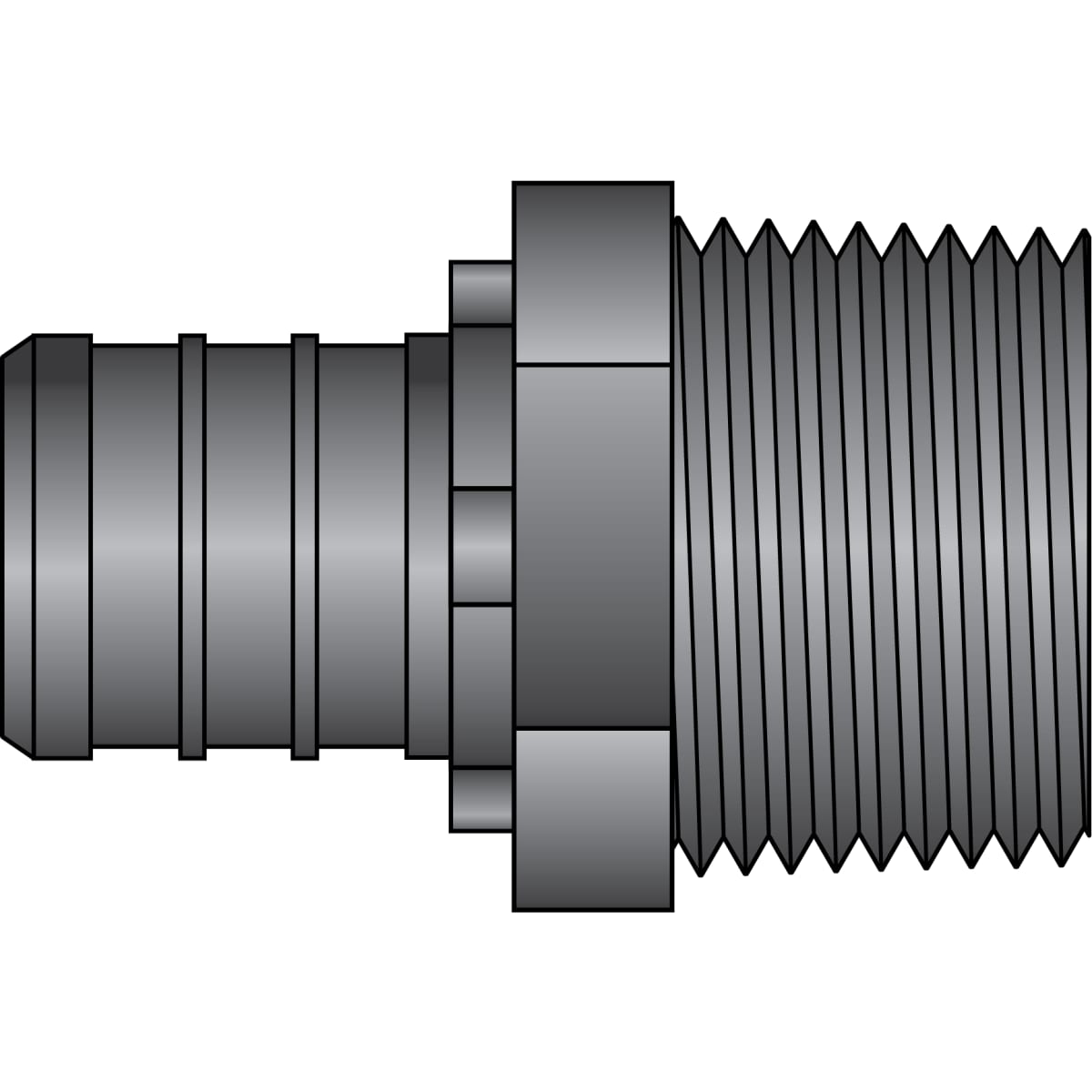

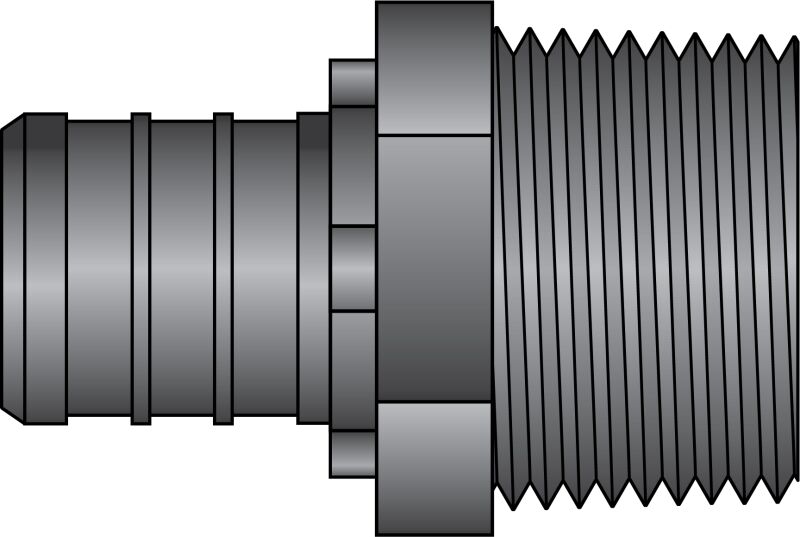

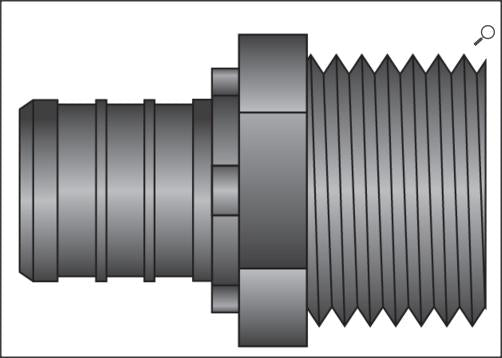

Heatlink 17522 3/4 inches PEX x 3/4 inches MNPT HPP Adapter

Product Description

The HEATLINK 17522 is a High Performance Polymer (HPP) adapter, specifically a 3/4" PEX insert x 3/4" Male Pipe Thread (MNPT) fitting. Constructed from Modified Polyphenylsulfone, it is designed for potable water supply and distribution, as well as hydronic radiant systems. This adapter is rated for a maximum operating temperature of 180 deg F and a maximum pressure of 100 psi. It complies with ASTM F2159 and other industry standards.

• ASTM F2159 compliant PEX insert fitting
• High Performance Polymer
• Outstanding resistance to hot chlorinated water

Product Highlights

Durable HPP adapter for PEX to MNPT connections, offering resistance to hot chlorinated water and various chemical solutions.

Product Information

Standard Information

• Brand: HEATLINK
• Manufacturer Part Number: 17522

Technical Specifications

• Nominal Size: 3/4 in
• Fitting Type: Adapter
• Length: 1.72 in
• Material: Modified Polyphenylsulfone
• Operating Temperature Max: 180 °F
• Operating Pressure Max: 100 psi
• Certifications: cNSFus-pw
• Codes: IAPMO UPC
• Standards: ASTM F877, ASTM F2159, CSA B137.5, NSF/ANSI 14, NSF/ANSI 61, NSF/ANSI 372, IAPMO Listed, UPC Listed
• Series: 17500
• Color: Black
• Application: Potable Water Supply and Distribution, Hydronic Radiant Systems
• Category: PEX Adapters
• End Style: PEX Insert F2159 x MNPT
• UNSPSC: 30181800
• UPC: 627998005932
• EAN/GTIN: 0627998005932
• Hex Size: 1.12 x 1.23 in
