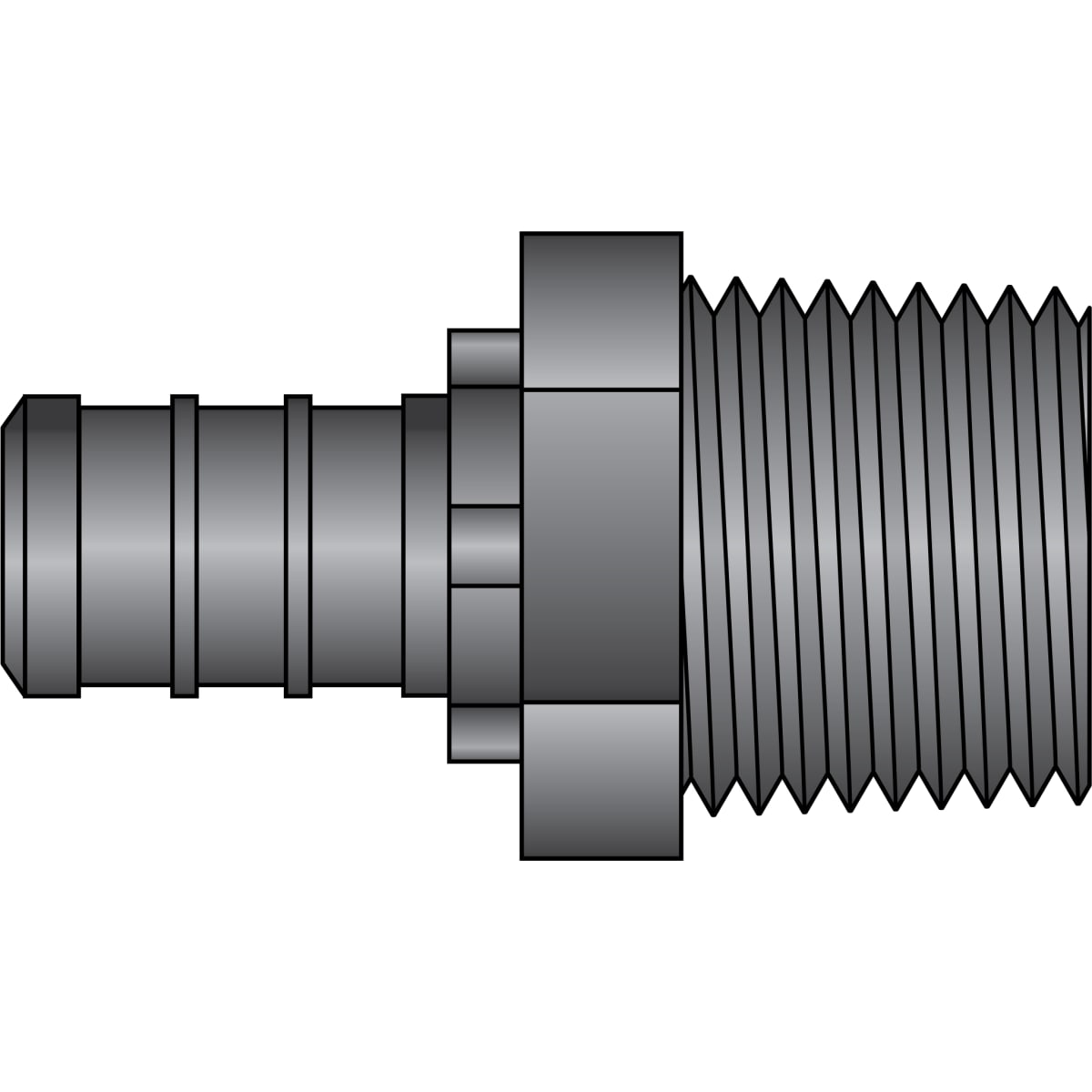

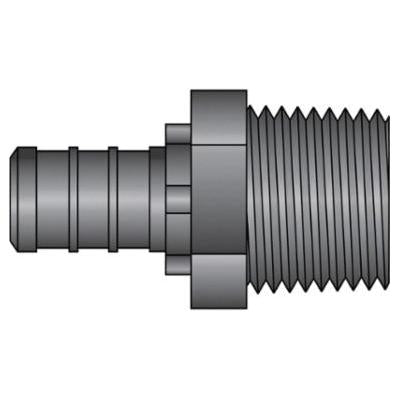

Heatlink 17505 1/2 inches PEX × 1/2 inches Male Pipe Thread HPP Adapter

Product Description

The HEATLINK 17505 is a High Performance Polymer 1/2" PEX insert × 1/2" Male Pipe Thread HPP Adapter. This ASTM F2159 compliant PEX insert fitting offers outstanding resistance to hot chlorinated water and high resistance to mineral acids, alkali, and salt solutions. It is designed for reliable plumbing connections.

• ASTM F2159 compliant PEX insert fitting
• High Performance Polymer construction
• Outstanding resistance to hot chlorinated water

Product Highlights

Provides high resistance to mineral acids, alkali, and salt solutions for durable performance.

Product Information

Standard Information

• Brand: HEATLINK
• Manufacturer Part Number: 17505
• Country of Origin: China, People's Republic of

Technical Specifications

• Size: 1/2" PEX × 1/2" MNPT
• Product Type: Adapter Fitting
• Length: 1.69 in (42.7 mm)
• Weight: 0.016 lb (0.007 kg)
• Dimension A: 0.70 in (17.8 mm)
• Dimension B: 0.35 in (8.8 mm)
• Dimension C: 0.64 in (16.1 mm)
• Dimension D: 0.88 in (22.3 mm)
• Dimension E: 1.01 in (25.8 mm)
• Dimension ID1: 0.32 in (8.0 mm)
• Dimension ID2: 0.50 in (12.7 mm)
• Material: Modified Polyphenylsulfone
• Operating Temperature Max: 180 °F (82.2 °C)
• Operating Pressure Max: 100 psi (6.9 bar)
• Industry Standards: ASTM F877, cNSFus-pw, CSA B137.5, IAPMO Listed, NSF/ANSI 14/61/372, UPC Listed
• Series: 17500
• Application: Potable Water Supply and Distribution, Hydronic Radiant Systems
• Nominal Size: 1/2 in
• End Style: PEX Insert F2159 x MNPT
• UNSPSC: 30181800
• Connection Size 1: 1/2 in
• Connection Size 2: 1/2 in
• Connection Type 1: F2159 PEX
• Connection Type 2: MNPT
• Connection Type: PEX|MNPT
