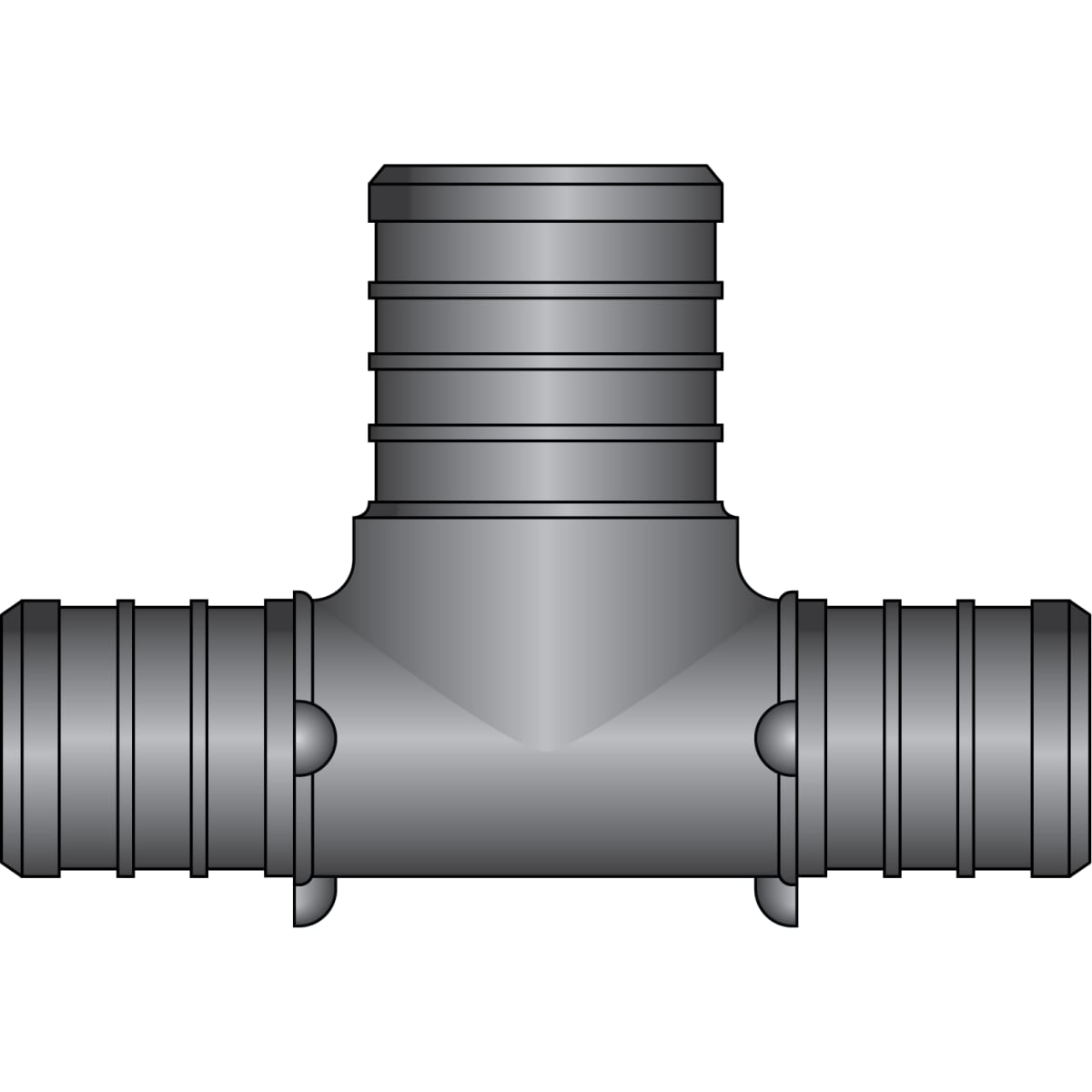

Heatlink 16228 3/4 inches x 3/4 inches x 1 inches PEX HPP Tee

Product Description

The HEATLINK 16228 is a 3/4" x 3/4" x 1" PEX HPP reducing tee, manufactured from High Performance Polymer, specifically Modified Polyphenylsulfone. This fitting is designed for plumbing and heating applications, offering outstanding resistance to hot chlorinated water, mineral acids, alkali, and salt solutions. It ensures long-term performance and chemical resistance in demanding environments.

• ASTM F2159 compliant PEX insert fitting
• High Performance Polymer construction for durability
• Outstanding resistance to hot chlorinated water

Product Highlights

High Performance Polymer PEX insert reducing tee system, offering superior long-term performance and chemical resistance for potable and heating industries.

Product Information

Standard Information

• Brand: HEATLINK
• Manufacturer Part Number: 16228
• Country of Origin: Import

Technical Specifications

• Size: 3/4" x 3/4" x 1"
• Type: Tee (Reducing)
• Material: Modified Polyphenylsulfone
• Length: 1.3 in
• Height: 1.37 in
• Dimension A: 0.71 in
• Dimension B: 0.59 in
• Dimension C: 0.59 in
• Dimension D: 0.71 in
• Dimension E: 0.33 in
• Dimension F: 0.52 in
• Dimension G: 0.85 in
• Internal Diameter 1: 0.46 in
• Internal Diameter 2: 0.46 in
• Internal Diameter 3: 0.61 in
• Max Operating Temperature: 82.2 °C (180 °F)
• Max Operating Pressure: 6.9 bar (100 psi)
• Listings: cNSFus-pw
• Codes: IAPMO UPC
• Standards: ASTM F877, ASTM F1807, CSA B137.5, NSF/ANSI 14, NSF/ANSI 61, NSF/ANSI 372
• Connection Type: PEX Insert F2159
• Connection Size 1: 3/4 in
• Connection Size 2: 3/4 in
• Connection Size 3: 1 in
• Series: 16000
