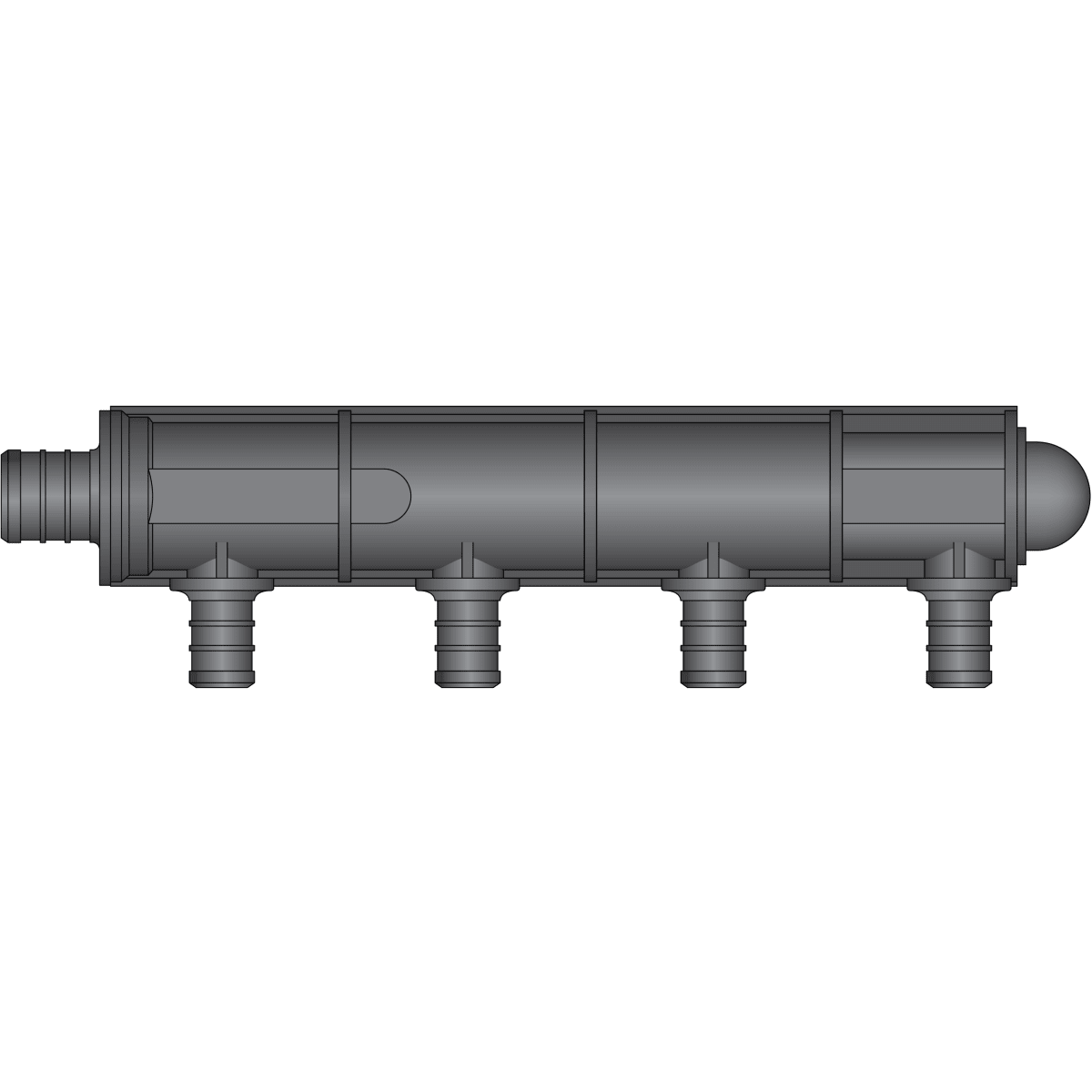

Heatlink 13204 4 Port Single Row, 3/4 inches PEX × Closed End HPP Multiport Tee

Product Description

The HEATLINK 13204 Multiport Tee features a closed end and a 3/4 inch PEX insert on the opposite end. This fitting includes four 1/2 inch branches arranged in a single row, designed for efficient water distribution in plumbing systems. Constructed from High Performance Polymer, it offers outstanding resistance to hot chlorinated water, mineral acids, alkali, and salt solutions, ensuring durability. It is an ASTM F2159 compliant PEX insert fitting.

• ASTM F2159 compliant PEX insert fitting
• Constructed from High Performance Polymer
• Resistant to hot chlorinated water, mineral acids, alkali, and salt solutions

Product Highlights

Durable HPP multiport tee with 3/4 inch PEX insert and four 1/2 inch branches, resistant to harsh water conditions.

Product Information

Standard Information

• Brand: HEATLINK
• Manufacturer Part Number: 13204
• Country of Origin: Germany

Technical Specifications

• Nominal Size: 3/4 inch
• Product Type: Plastic Tee
• Number of Outlets: 4
• Inlet Connection Size: 3/4 inch
• Inlet Connection Type: F2159 PEX
• Outlet Connection Size: 1/2 inch
• Outlet Connection Type: PEX
• Outlet Type: Closed
• Material: Modified Polyphenylsulfone
• Maximum Operating Temperature: 180 °F
• Maximum Operating Pressure: 100 psi
• Certifications: cNSFus-pw-G, NSF Certified
• Codes: IAPMO UPC, IAPMO Listed
• Standards: ASTM F877, ASTM F2159, CSA B137.5, NSF/ANSI 14, NSF/ANSI 61, NSF/ANSI 372, ANSI 14, ANSI 61, ANSI 372 Annex G
• End Connection Type: PEX Insert x Closed x PEX Insert
• Fitting Sizes: 3/4 inch x 3/4 inch x 1/2 inch
• Number of Inlets: 1
• End Style: PEX F2159 x Closed End
• Series: 13000
